< Bobcat Attachments

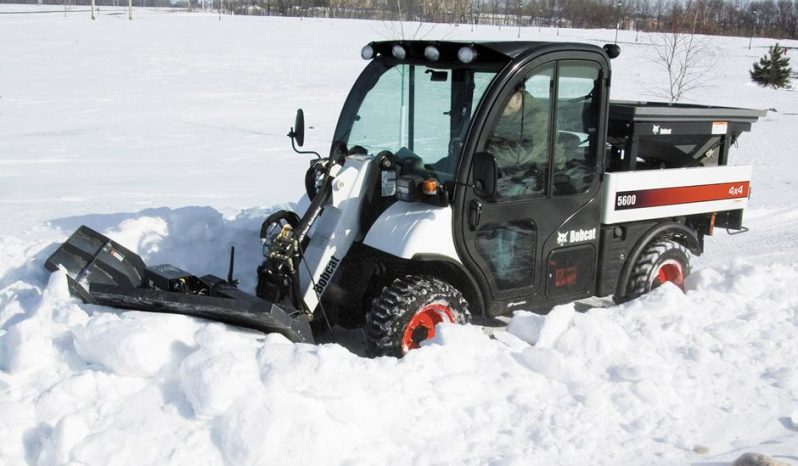

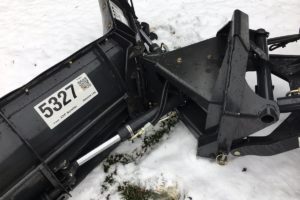

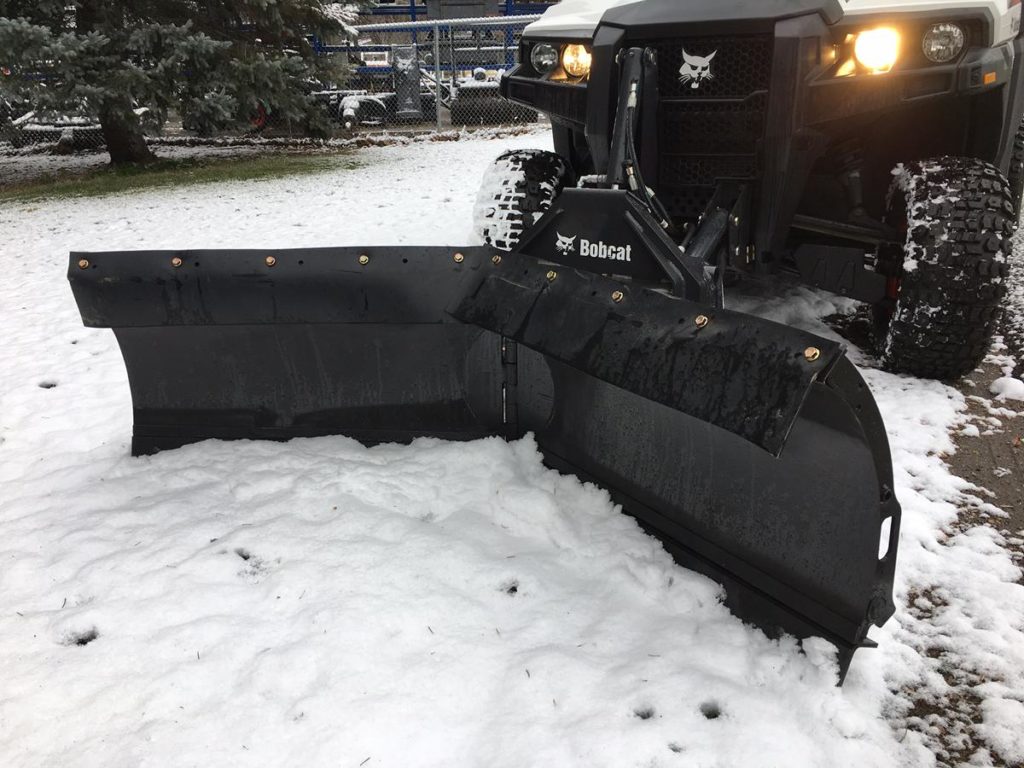

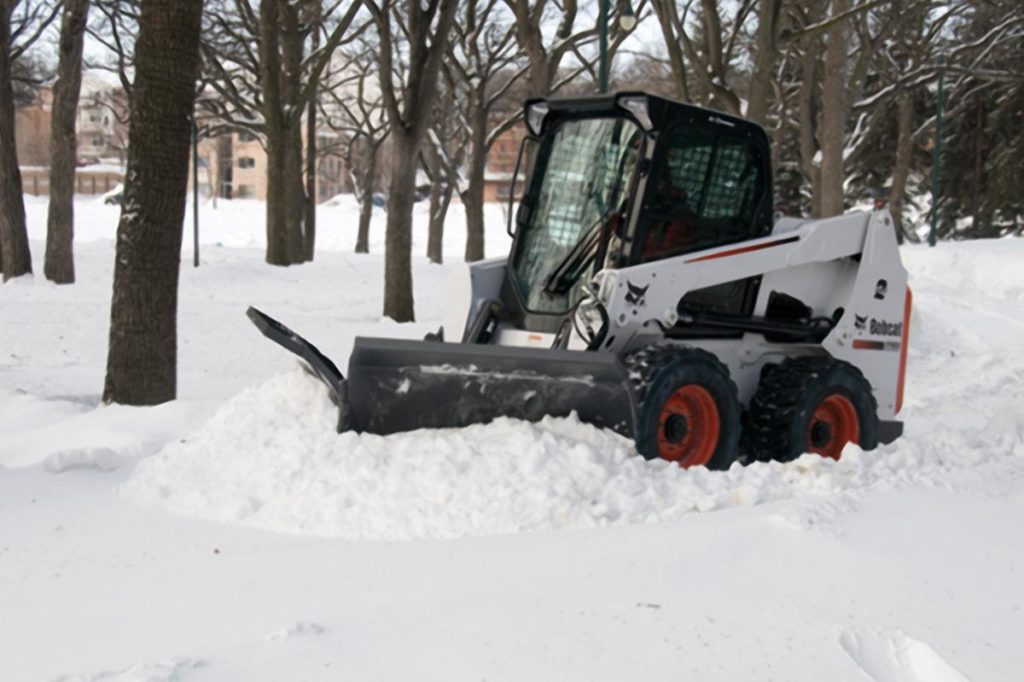

Snow V-Blade

Want to rent before you buy? SEE RENTALS

Request a Quote

Snow V-Blade

Plow through even the deepest snow drifts and push large piles with the snow V-blade attachment. The standard, high-carbon steel cutting edge maximizes the snow removal capabilities of the blade and the trip moldboard reduces potential impact damage if it contacts sections of raised concrete on sidewalks, manholes or other obstructions. The fingertip controls make it easy to configure the hydraulically operated blade from the comfort of the operator cab.



Used For

  • Scooping and piling snow
  • Plowing through deep drifts
  • Clearing deep snow from parking lots, driveways & roadways

Features

  • Cutting Edge: High-carbon steel cutting strength delivers maximum power.
  • Fingertip Controls: Choose from five different blade configurations without leaving the comfort of the cab.
  • Multi-Position Frame: Allows blade to be raised or lowered to desired height.
  • Skid Shoes: Domed and adjustable to provide operator and component protection.
  • Straight blade: Gives maximum width for piling snow banks.
  • V-blade: Cuts an initial pathway fast through deep, heavy or hard-packed snow.
  • Versatility: Five blade positions for versatile attachment operation.

Options

  • Flotation Kit: Optional frame flotation kit oscillates blade +/- 10° to improve performance on uneven terrain.

Snow V-Blade

Snow V-Blade - 60"

  • WEIGHT
    660 lb
  • LENGTH
    40 in
  • WIDTH
    62 in
  • HEIGHT
    28.5 in
  • HEIGHT W/BLADE EXTENSION
    28.5 in
  • WIDTH - V-BLADE
    54 in
  • WIDTH - SCOOP BLADE
    53 in
  • WIDTH - STRAIGHT BLADE
    62 in
  • WIDTH - ANGLED BLADE
    54 in

Snow V-Blade - 72"

  • WEIGHT
    738 lb
  • LENGTH
    47.3 in
  • WIDTH
    74 in
  • HEIGHT
    32.8 in
  • HEIGHT W/BLADE EXTENSION
    32.8 in
  • WIDTH - V-BLADE
    64.5 in
  • WIDTH - SCOOP BLADE
    63 in
  • WIDTH - STRAIGHT BLADE
    74 in
  • WIDTH - ANGLED BLADE
    64 in

Snow V-Blade - 84"

  • WEIGHT
    779 lb
  • LENGTH
    47.3 in
  • WIDTH
    86 in
  • HEIGHT
    32.8 in
  • HEIGHT W/BLADE EXTENSION
    32.8 in
  • WIDTH - V-BLADE
    75 in
  • WIDTH - SCOOP BLADE
    74 in
  • WIDTH - STRAIGHT BLADE
    86 in
  • WIDTH - ANGLED BLADE
    75 in

Snow V-Blade - 96"

  • WEIGHT
    824 lb
  • LENGTH
    47.3 in
  • WIDTH
    98 in
  • HEIGHT
    32.8 in
  • HEIGHT W/BLADE EXTENSION
    32.8 in
  • WIDTH - V-BLADE
    85.5 in
  • WIDTH - SCOOP BLADE
    84 in
  • WIDTH - STRAIGHT BLADE
    98 in
  • WIDTH - ANGLED BLADE
    85 in
