Brushcat Rotary Cutter

Brushcat Rotary Cutter

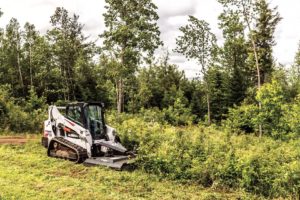

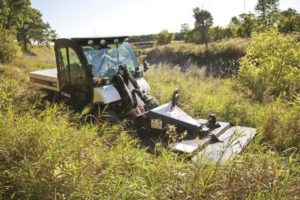

Handle tough brush-clearing jobs easily with the industry-leading Brushcat™ rotary cutter attachment.  Designed and built for applications in construction, agriculture, municipalities, and more, it will cut through the thickest grass and brush. The short deck and lightweight design can be used on many machine sizes and the powerful brush cutting action of the dual offset blades mulches small branches and saplings — up to 3 in in diameter — with ease. The lightweight, short deck and superior oscillation enable the brush cutter to follow ground contours to maintain a clean cut, even on slopes.

Used For

• Clearing trails or construction sites
• Mulching branches and saplings
• Controlling brush and undergrowth

Features

• Bob-Tach® Mounting System: Fast and easy mounting .
• Deck Oscillation: Follows ground contours, even on slopes, while maintaining an even cut.
• Direct Drive Motor: Efficiently transfers power straight through to the blades.

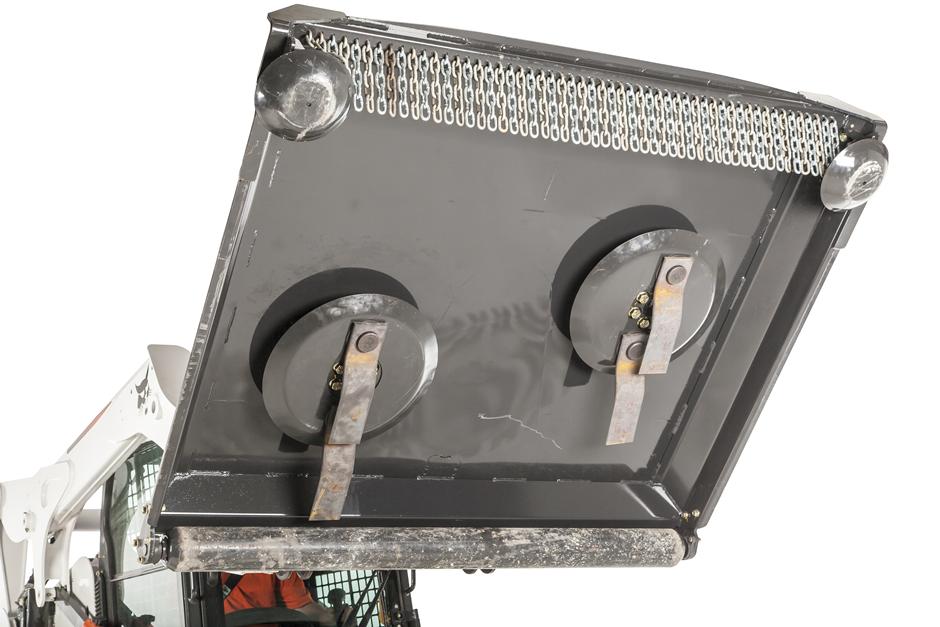

• Double-Edged Blades: Provide bidirectional cutter rotation by switching the cutter heads, increasing blade life.
• Front Disc: Front discs help traverse uneven terrain with minimal skips and gouging, while reducing operator fatigue.

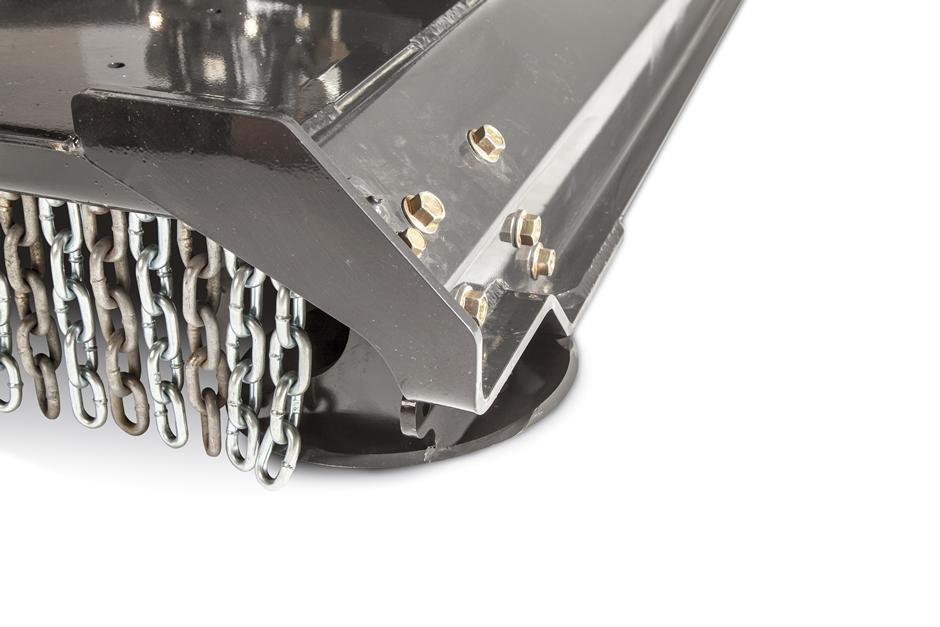

• Front Safety Chains: Helps prevent debris from being thrown during operation.

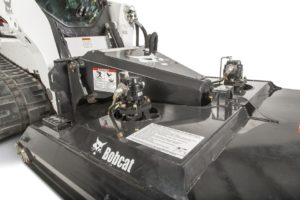

• Offset Dual Motor/Blade: Reduces weight and increases visibility.
• Patented Blade Shut Off: Stops blade rotation when the rear roller is raised up.

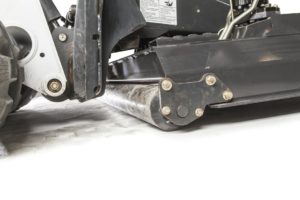

• Rear Tapered Roller: Shields debris from flying out of the back of the cutting deck.
• Short Deck: Provides maximum working visibility and a smaller turning radius.
• Smooth Underside: Debris doesn’t get caught to the underside of the deck.

Brushcat Rotary Cutter

Standard Flow - 66"

• LENGTH

  67.2 in

• WIDTH

  70.3 in

• HEIGHT

  26.5 in

• BLADE TIP SPEED (MIN FLOW AT)

  15 gal/min

• BLADE TIP SPEED (MIN FLOW)

  11,399 ft/min

• BLADE TIP SPEED (MAX FLOW AT)

  24 gal/min

• BLADE TIP SPEED (MAX FLOW)

  18,238 ft/min

• CUTTING WIDTH

  66 in

• DECK LENGTH

  61.1 in

• CUTTING HEIGHT

  3 in

• VERTICAL TRAVEL

  8 in

• CUTTING CAPACITY

  3" (76 mm) in Diameter

High Flow - 66"

• LENGTH

  67.2 in

• WIDTH

  70.3 in

• HEIGHT

  26.5 in

• BLADE TIP SPEED (MIN FLOW AT)

  24 gal/min

• BLADE TIP SPEED (MIN FLOW)

  11,394 ft/min

• BLADE TIP SPEED (MAX FLOW AT)

  36 gal/min

• BLADE TIP SPEED (MAX FLOW)

  18,238 ft/min

• CUTTING WIDTH

  66 in

• DECK LENGTH

  61.1 in

• CUTTING HEIGHT

  3 in

• VERTICAL TRAVEL

  8 in

• CUTTING CAPACITY

  3" (76 mm) in Diameter

Standard Flow - 72"

• LENGTH

  76.3 in

• WIDTH

  76.3 in

• HEIGHT

  26.5 in

• BLADE TIP SPEED (MIN FLOW AT)

  15 gal/min

• BLADE TIP SPEED (MIN FLOW)

  9,922 ft/min

• BLADE TIP SPEED (MAX FLOW AT)

  26 gal/min

• BLADE TIP SPEED (MAX FLOW)

  17,197 ft/min

• CUTTING WIDTH

  72 in

• DECK LENGTH

  64.3 in

• CUTTING HEIGHT

  3 in

• VERTICAL TRAVEL

  8 in

• CUTTING CAPACITY

  3" (76 mm) in Diameter

High Flow - 72"

• LENGTH

  76.3 in

• WIDTH

  76.3 in

• HEIGHT

  26.5 in

• BLADE TIP SPEED (MIN FLOW AT)

  24 gal/min

• BLADE TIP SPEED (MIN FLOW)

  9,922 ft/min

• BLADE TIP SPEED (MAX FLOW AT)

  40 gal/min

• BLADE TIP SPEED (MAX FLOW)

  16,536 ft/min

• CUTTING WIDTH

  72 in

• DECK LENGTH

  64.3 in

• CUTTING HEIGHT

  3 in

• VERTICAL TRAVEL

  8 in

• CUTTING CAPACITY

  3" (76 mm) in Diameter

High Flow - 80"

• LENGTH

  73.8 in

• WIDTH

  84.3 in

• HEIGHT

  26.5 in

• BLADE TIP SPEED (MIN FLOW AT)

  24 gal/min

• BLADE TIP SPEED (MIN FLOW)

  10,932 ft/min

• BLADE TIP SPEED (MAX FLOW AT)

  40 gal/min

• BLADE TIP SPEED (MAX FLOW)

  18,219 ft/min

• CUTTING WIDTH

  80 in

• DECK LENGTH

  67.7 in

• CUTTING HEIGHT

  3 in

• VERTICAL TRAVEL

  8 in

• CUTTING CAPACITY

  3" (76 mm) in Diameter
