< Skid-Steer Loaders

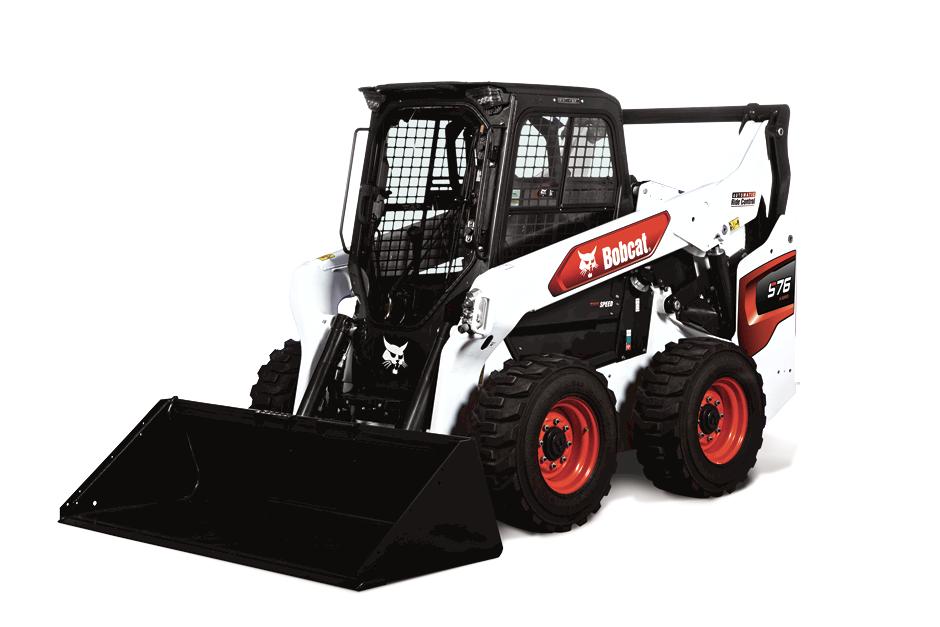

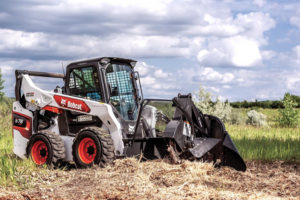

Bobcat S76

  • Make
    Bobcat
  • Category
    Skid-Steer Loaders
  • ROC
    2,900 lb
  • Width
    74 in
  • Horsepower
    74 hp
  • Engine
    Tier 4
  • Fuel Type
    Diesel
  • Condition
    New

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

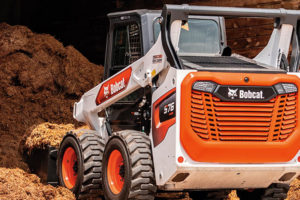

S76

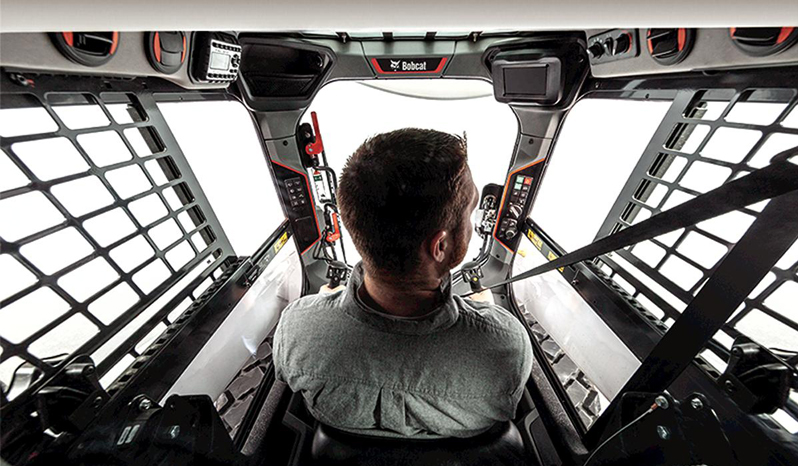

The S76 R-Series skid-steer loader is designed to help you accomplish more with one machine. This 74-hp, vertical lift path skid-steer loader delivers powerful breakout forces, fast cycle times and increased lifting capabilities – including increased lift capacity and height. It is highly maneuverable, offering effective turning and skidding that is ideal for doing challenging work in tight areas. All this, plus you’ll experience a new level of operator comfort thanks to a roomy cab, ergonomic controls, optional automatic heat and air conditioning and more.

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Operating Lights
  • Rear Window
  • Lift-Arm Support
  • Suspension Seat
  • Auxiliary Hydraulics
  • Bob-Tach Attachment System
  • Horn

Options

  • Turbocharged Engine

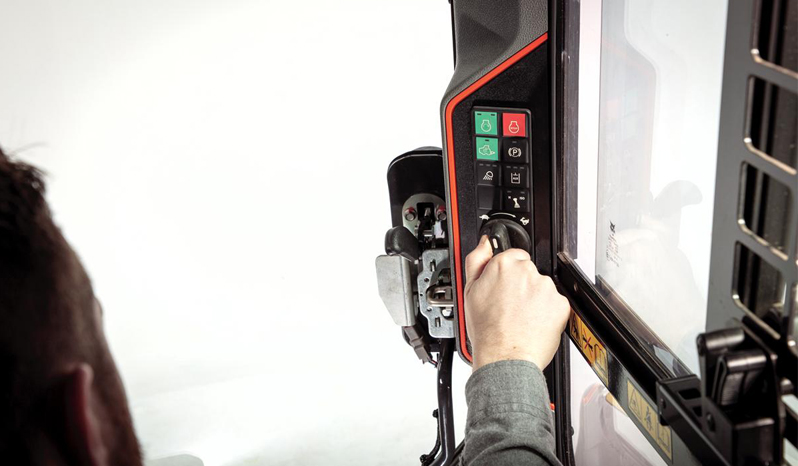

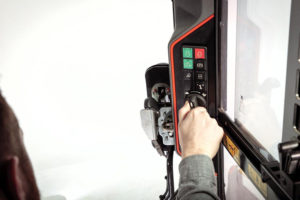

  • Joystick Control
  • Air Conditioning
  • Cab Enclosure
  • Sound Option
  • Cab Heater
  • Radio

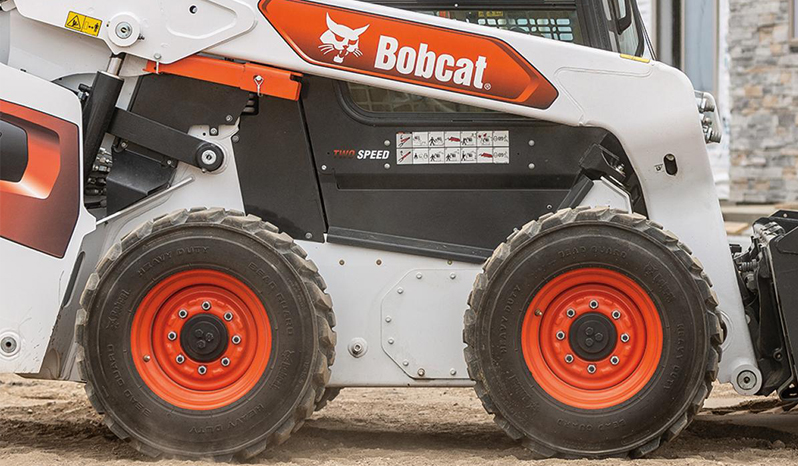

  • Two Speed Travel

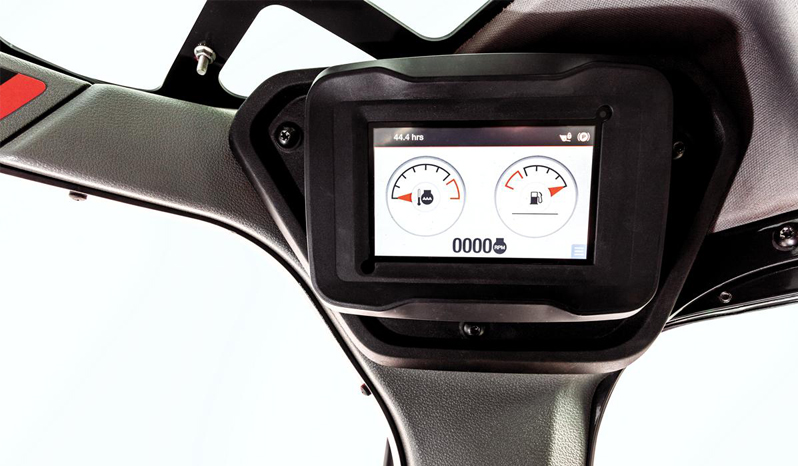

  • Deluxe Instrumentation
  • Hydraulic Bucket Positioning
  • High Flow Option
  • Power Bob-Tach
  • Ride Control
  • Rear Hydraulics

Popular Attachments

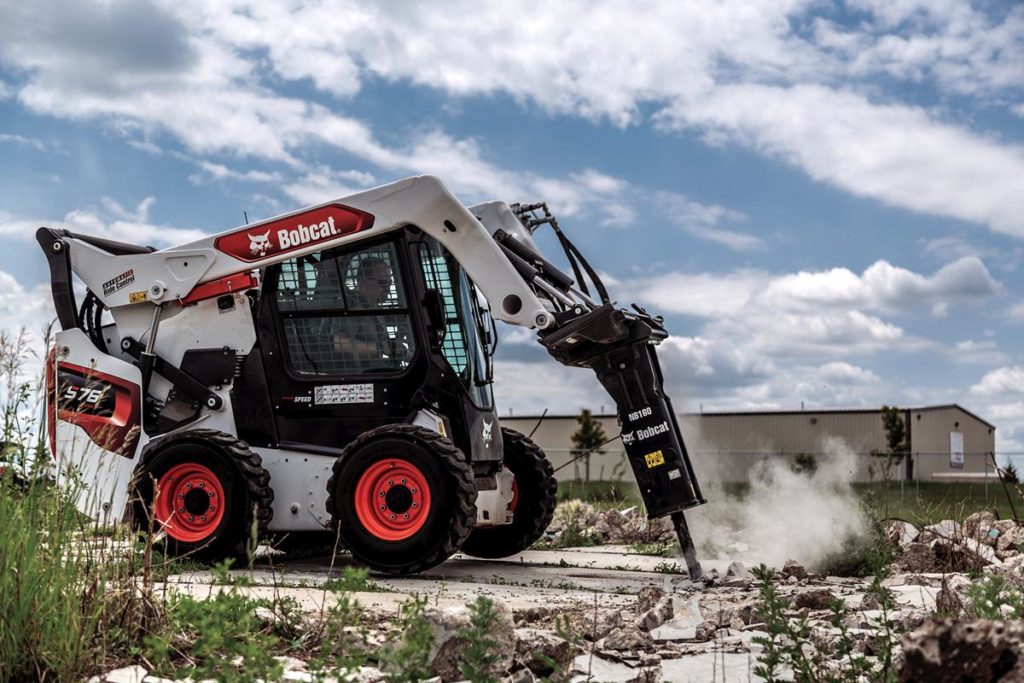

  • Breaker
  • Auger

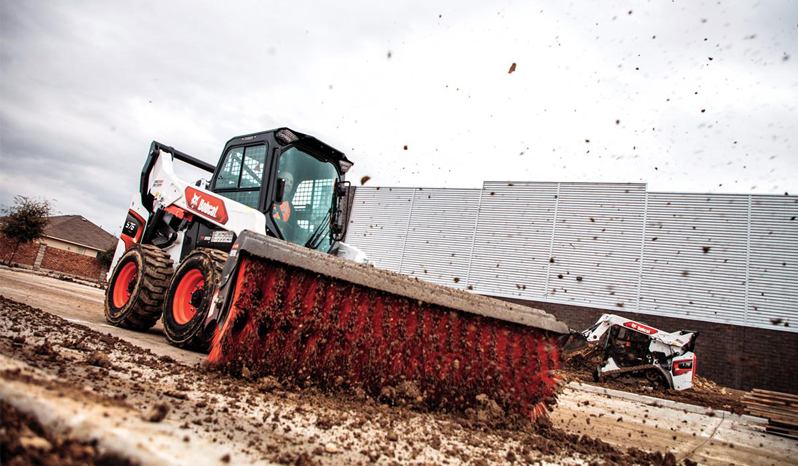

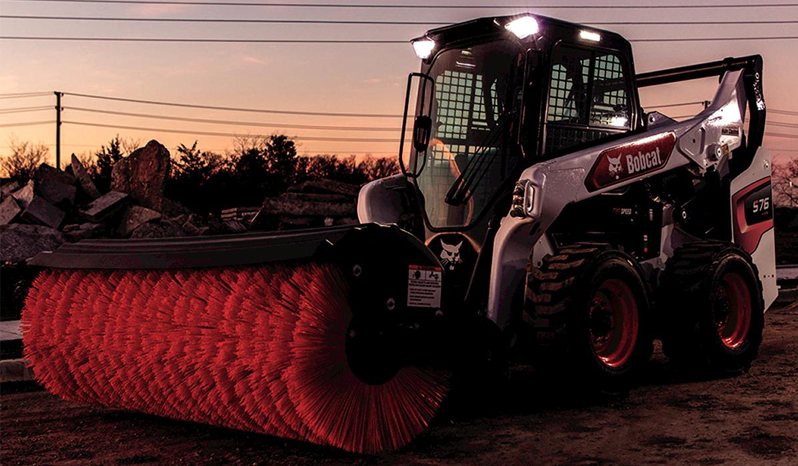

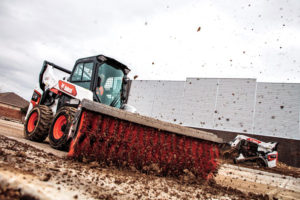

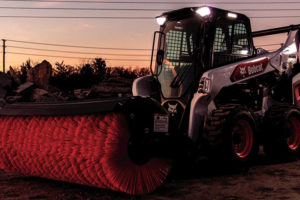

  • Sweeper
  • Pallet Forks
  • Combination Bucket
  • Industrial Grapple

S76

Dimensions

  • LENGTH
    113.9 in
  • LENGTH WITH BUCKET
    147.1 in
  • HEIGHT
    81.8 in
  • WIDTH
    72 in
  • WIDTH WITH BUCKET
    74 in
  • WEIGHT
    8,615 lb
  • HEIGHT TO BUCKET HINGE PIN
    128.3 in
  • WHEELBASE
    48.3 in
  • TURNING RADIUS
    87.9 in
  • REACH AT MAX HEIGHT
    37.4 in

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    74 hp
  • FUEL TYPE
    Diesel
  • FUEL TANK CAPACITY
    31.7 gal
  • COOLING
    Liquid
  • TURBOCHARGED ENGINE
    Optional

Hydraulics

  • AUXILIARY STD FLOW
    23.3 gal/min
  • AUXILIARY HIGH FLOW
    30.3 gal/min
  • SYSTEM RELIEF AT QUICK COUPLERS
    3,450 psi

Operational

  • RATED OPERATING CAPACITY
    2,900 lb
  • TIPPING LOAD
    5,800 lb
  • TRAVEL SPEED
    10.9 km/h
  • TRAVEL SPEED - 2-SPEED OPTION
    19 km/h
