Bobcat L23

L23

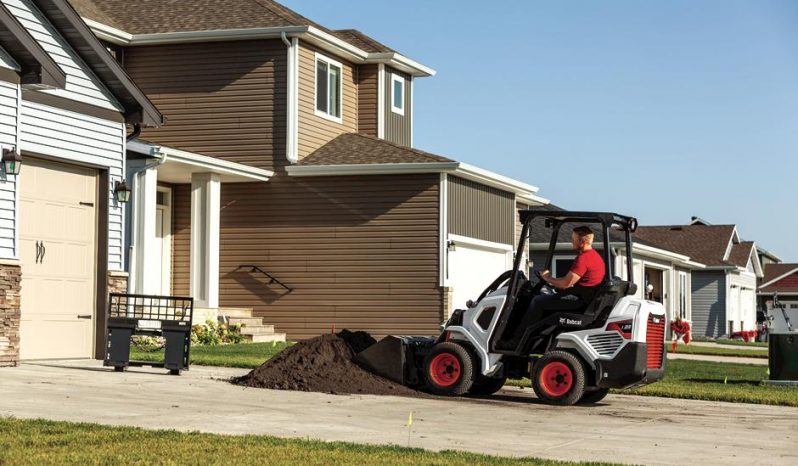

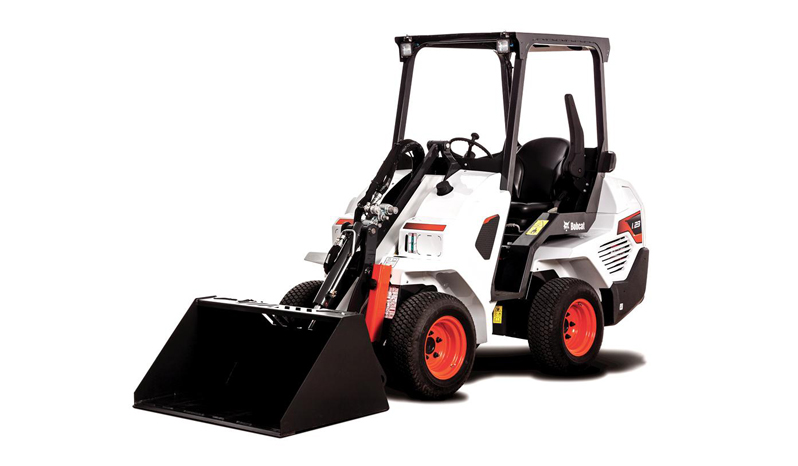

The L23 small articulated loader features an articulation joint that enables the rear tires to match the path of the front tires as they turn, resulting in a nimble machine that easily navigates small work zones. It does your heavy lifting with minimal ground disturbance thanks to a turf-safe mode that keeps the wheels from scrubbing on the ground. It lifts heavy loads and you can add optional rear counterweights to increase lift capacity. The 25-hp, low-rpm, high-torque engine provides performance that is more forgiving when pushing the machine to its limit under load. Added comfort features and easy-to-use controls help maximize your productivity.

Small Articulated Loader Literature:

Download Small Articulated Loader Brochure

Download Bobcat Attachments Catalog

Features

• Adjustable Seat
• Backup Alarm
• BICS System (Interlock)
• Lift-Arm Support
• Hydraulic Bucket Positioning
• Auxiliary Hydraulics
• Spark Arrestor Muffler
• Bob-Tach Attachment System
• Horn
• Front and Rear Work Lights
• Cup Holder

Options

• Cab Enclosure
• Cab Heater
• Operating Lights
• Rear Window
• Rotating Flashing Beacon
• Turn Signals
• Heavy-Duty Float Tires

Popular Attachments

• Breaker

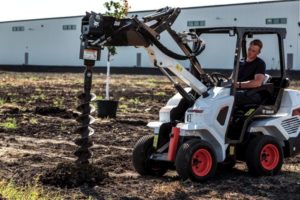

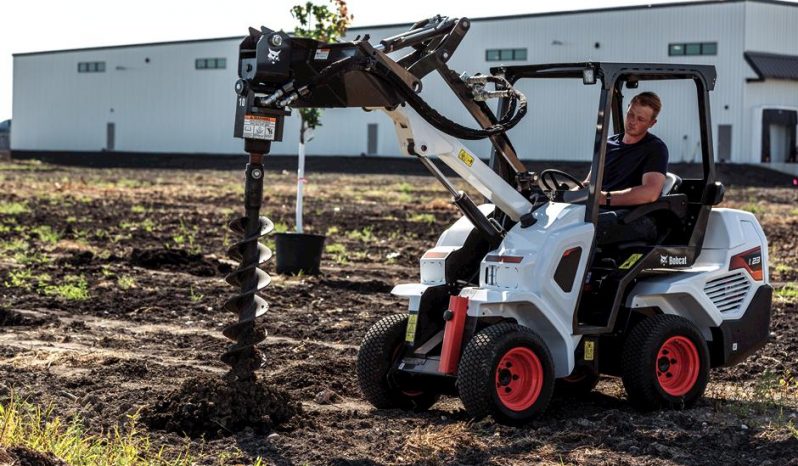

• Auger
• Sweeper
• Pallet Forks
• Stump Grinder
• Angle Broom

L23

Dimensions

• LENGTH

  93.2 in

• LENGTH WITH BUCKET

  122.4 in

• HEIGHT

  78.1 in

• WIDTH

  44 in

• WEIGHT

  3,790 lb

• ARTICULATION ANGLE

  43°

• TURNING RADIUS INSIDE

  77.2 in

• TURNING RADIUS OUTSIDE

  100.9 in

• WHEELBASE

  47.2 in

• MAX REACH

  16.8 in

• TIRE SIZE

  23 x 8.5-12

• GROUND CLEARANCE

  5.5 in

• ROLLBACK ANGLE

  32°

• DUMP ANGLE AT MAXIMUM HEIGHT

  40°

Engine

• ENGINE

  Tier 4

• COOLING

  Liquid

• ENGINE FUEL

  Diesel

• HORSEPOWER

  24.8 hp

Hydraulics

• SYSTEM RELIEF AT QUICK COUPLERS

  2,900 psi

• AUXILIARY STD FLOW

  12.1 gal/min

Operational

• RATED OPERATING CAPACITY STRAIGHT

  1,395 lb

• TIPPING LOAD STRAIGHT

  2,789 lb

• ROC WITH COUNTERWEIGHT OPTION STRAIGHT

  1,815 lb

• RATED OPERATING CAPACITY ART.

  1,159 lb

• TIPPING LOAD ART.

  2,317 lb

• ROC WITH COUNTERWEIGHT OPTION ART.

  1,471 lb

• TRAVEL SPEED

  13.5 km/h
