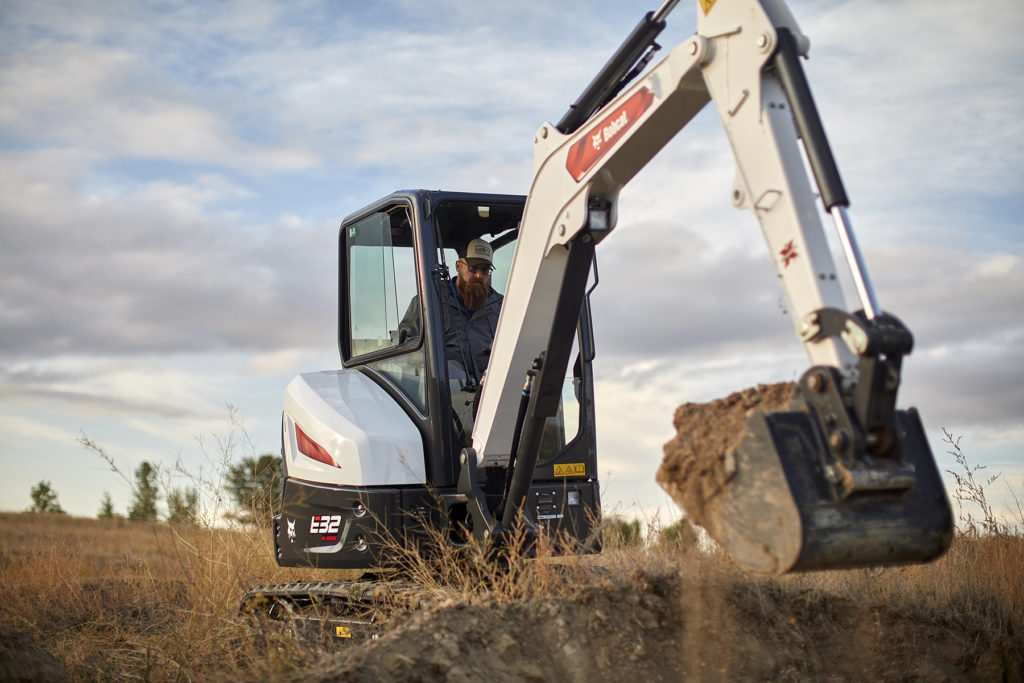

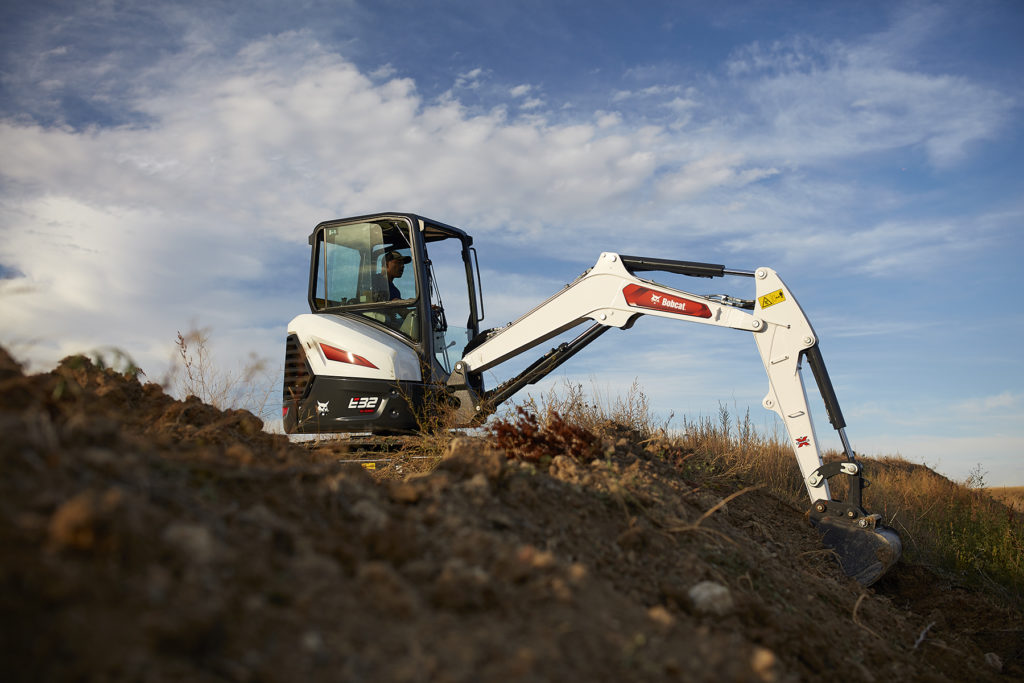

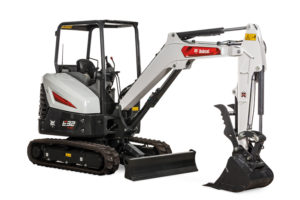

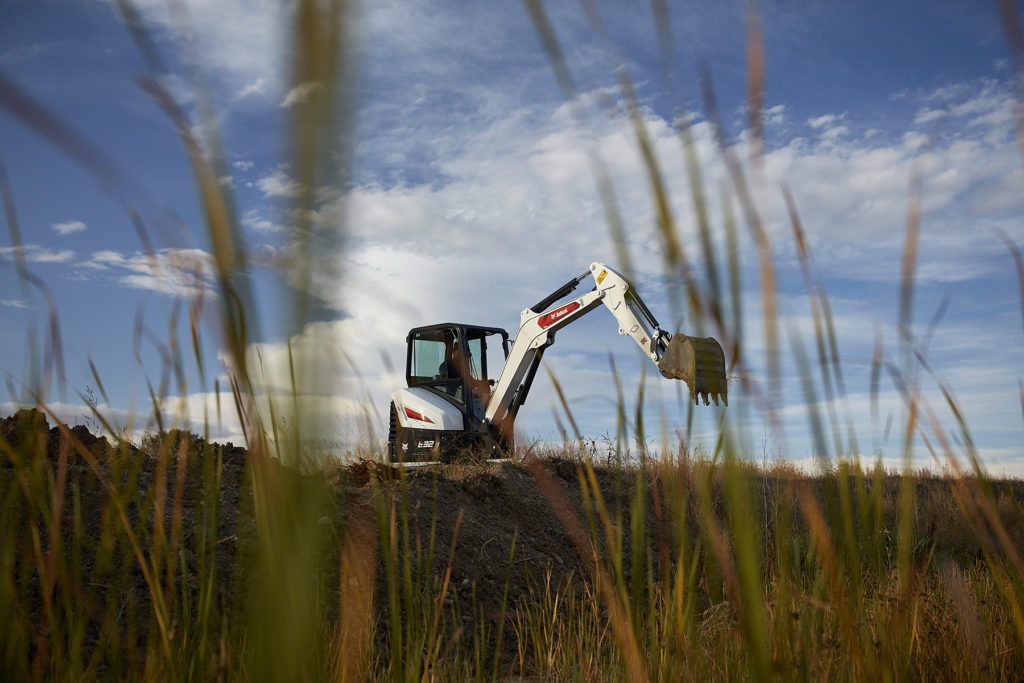

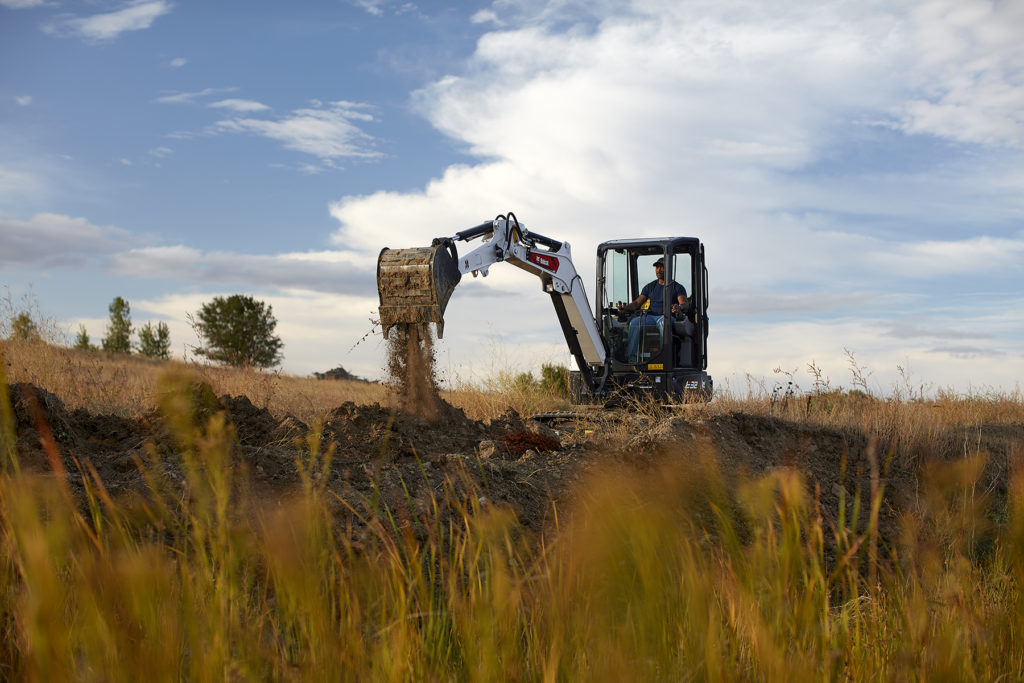

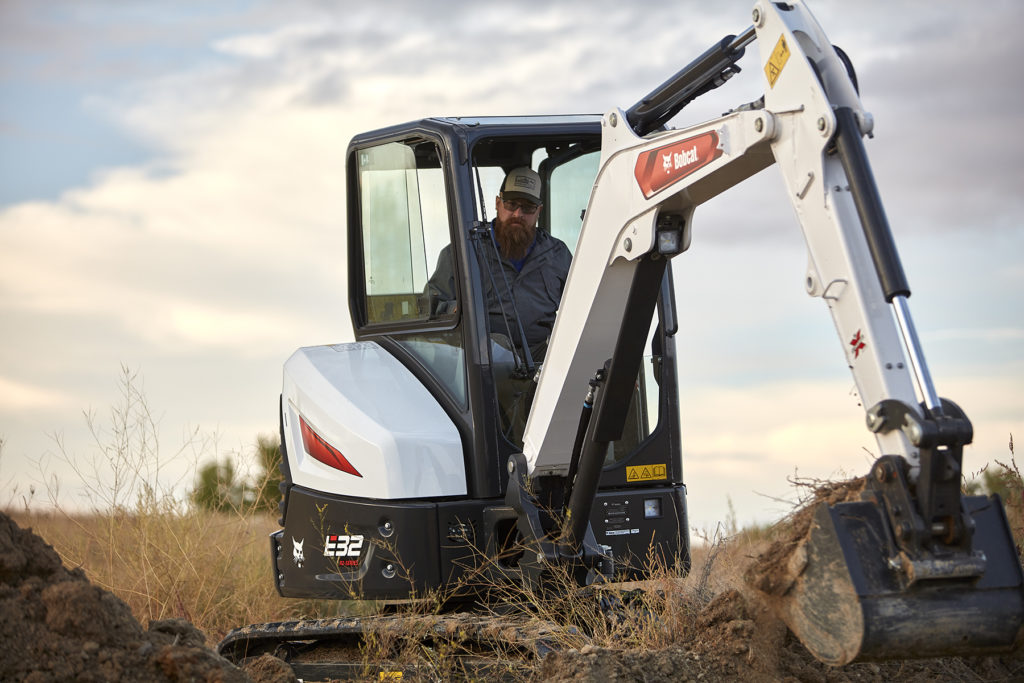

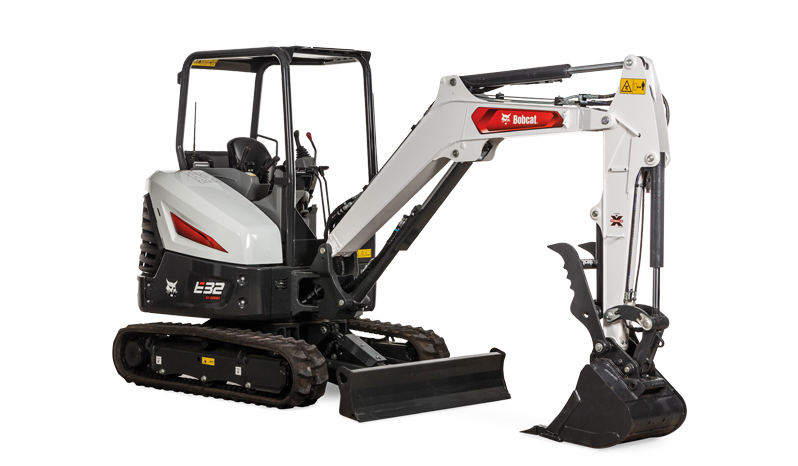

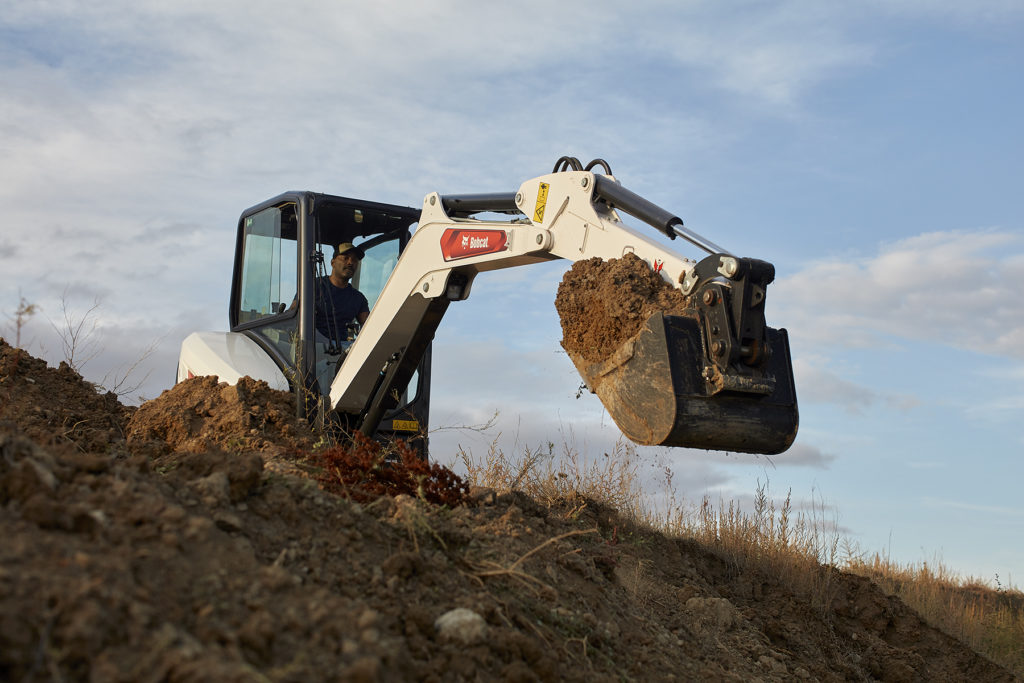

Bobcat E32

E32

The Bobcat R2-Series E32 compact excavator packs powerful performance and maneuverability into a conventional tail swing design. Narrower than the E35, this machine is ideal if you frequently work around width restrictions. R2-Series compact excavators set new standards in comfort, as the spacious cab offers many refinements and an unbeatable operator experience with excellent ride quality, low noise, optimal visibility and low-effort joysticks that respond precisely to operator input.

Boost your working range with the long arm option or a clamp-ready extendable arm option. Additional options that will increase your productivity include a clamp diverter valve, a 7-inch touch display screen and rearview camera.

Compact Excavator Literature:

Download Compact Excavator Brochure

Download Bobcat Attachments Catalog

Features

• Engine Shutdown
• Auxiliary Hydraulics
• Quick Tach System
• Rubber Track
• Selectable Auxiliary Hydraulic Flow

Options

• Air Conditioning
• Cab Enclosure
• Heater Air Conditioning
• Radio
• Secondary Auxiliary Hydraulics

Popular Attachments

• Auger
• Clamp
• Breaker
• Hydra-Tilt
• Power-Tilt
• Ripper

E32

Dimensions

• LENGTH

  187.3 in

• HEIGHT

  96.2 in

• WIDTH

  61.8 in

• WEIGHT

  8,269 lb

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  24.8 hp

• FUEL TANK CAPACITY

  13.7 gal

• FUEL TYPE

  Diesel

Hydraulics

• SYSTEM RELIEF PRESSURE

  2,987 psi

• AUXILIARY STD FLOW

  16.9 gal/min

Operational

• TRAVEL SPEED - HIGH

  4.7 km/h

• TRAVEL SPEED - LOW

  2.6 km/h

• ARM DIGGING FORCE

  4,074 lbf

• BUCKET DIGGING FORCE

  7,284 lbf

• MAX DIG DEPTH

  11.1 ft

• MAX REACH AT GROUND LEVEL

  17.2 ft

• MAX DUMP HEIGHT

  12 ft

• RATED LIFT CAPACITY

  2,871 lb

• LIFT RADIUS

  118 in

• BOOM SWING RADIUS - LEFT

  75°

• BOOM SWING RADIUS - RIGHT

  55°

• TAIL SWING RADIUS

  Conventional

Base Arm Option

• WEIGHT

  7,403 lb

• MAX DIG DEPTH

  10.2 ft

• MAX REACH AT GROUND LEVEL

  16.2 ft

• MAX DUMP HEIGHT

  11.4 ft

Extendable-Arm Option

• WEIGHT

  8,497 lb

• MAX DIG DEPTH

  12.8 ft

• MAX REACH AT GROUND LEVEL

  18.8 ft

• MAX DUMP HEIGHT

  12.9 ft
