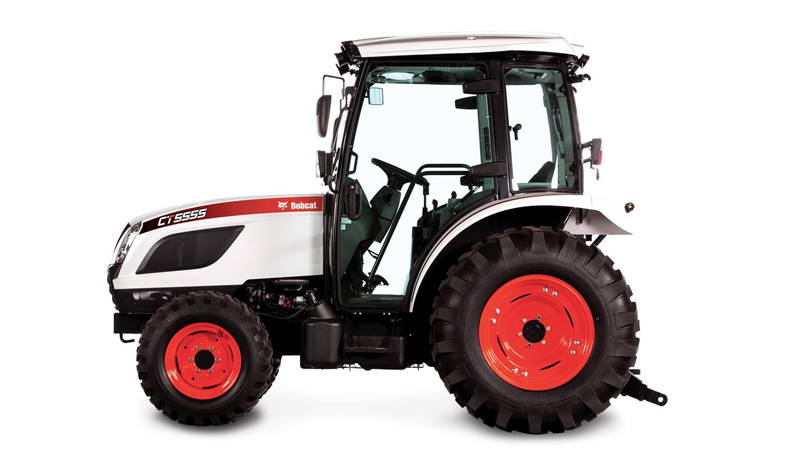

Bobcat CT5555

CT5555

The Bobcat® 55-hp CT5555 combines power, comfort and outstanding versatility for work around your farm and property. This compact tractor is fully equipped for easy operation and implement use to help you do more, do it faster and do it better. With a deluxe factory-installed tractor cab, you can work in comfort whether you are blowing snow in frigid temperatures or mowing, brush clearing, or handling other grounds keeping in the heat and humidity. The electronic hydrostatic transmission offers simplicity and ease of direction changes plus near-effortless input on the travel pedal. When you need it all, this compact tractor delivers.

Compact Tractor Literature:

Download CT5000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Electronic Hydrostatic Transmission
• Independent PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• 3-Point Hitch
• Roll-Over Protective Structure
• Deluxe Suspension Seat
• Work Lights
• Deluxe Enclosed Cab
• True Cruise Control
• One-Side Maintenance
• One-Piece Engine Hood
• All-In-One Fuse And Relay Box

Options

• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower
• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT5555

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  55 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3FT-TH4-U

• FUEL TANK

  14.8 gal

Dimensions

• LENGTH

  139.6 in

• WIDTH

  75 in

• HEIGHT

  94.2 in

• WEIGHT

  4,685 lb

• GROUND CLEARANCE

  13 in

• TURNING RADIUS

  9' 9"

• WHEELBASE

  6' 3"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  17.8 gal/min

• IMPLEMENT HYDRAULIC FLOW

  9.6 gal/min

• STEERING HYDRAULIC FLOW

  8.2 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  Infinite, 3 Range Hydrostatic (Servo Control Valve With Electric Sol.)

Operational

• TRAVEL SPEED

  28.2 km/h

• TRAVEL SPEED - REVERSE

  28.2 km/h

• 3-POINT HITCH

  Category 2

• 3-PT LIFT CONTROL TYPE

  Position With Draft Control

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  3,177 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  43.1 hp

• MID PTO - RPM

  2,103

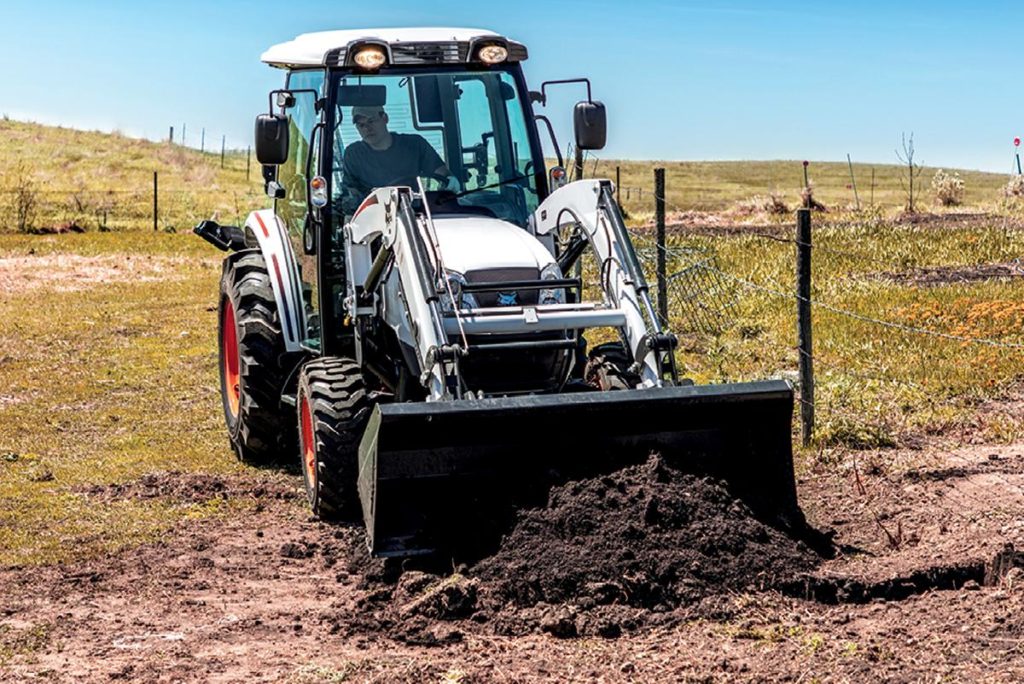

Loader Attachment

• LOADER LIFT HEIGHT

  9' 1"

• BUCKET WIDTH

  6' 0"
