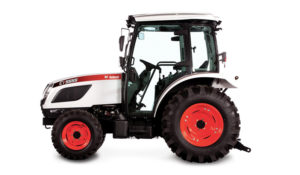

Bobcat CT5555

CT5555

The Bobcat® 55-hp CT5555 combines power, comfort and outstanding versatility for work around your farm and property. This compact tractor is fully equipped for easy operation and implement use to help you do more, do it faster and do it better. With a deluxe factory-installed tractor cab, you can work in comfort whether you are blowing snow in frigid temperatures or mowing, brush clearing, or handling other groundskeeping in the heat and humidity. The electronic hydrostatic transmission offers simplicity and ease of direction changes plus near-effortless input on the travel pedal. When you need it all, this compact tractor delivers.

Features

  • Electronic Hydrostatic Transmission
  • Independent PTO
  • Power Take-Off PTO
  • Leading Drawbar Towing
  • 3-Point Hitch
  • Roll-Over Protective Structure
  • Deluxe Suspension Seat
  • Work Lights
  • Deluxe Enclosed Cab
  • True Cruise Control
  • One-Side Maintenance
  • One-Piece Engine Hood
  • All-In-One Fuse And Relay Box

Options

  • Linked Pedal Lever Option
  • Three Tire Options

CT5555

Main

  • Horsepower
    55 hp
  • Width
    75 in
  • PTO
    43.1 hp
  • Weight
    4,685 lb
  • Fuel Type
    Diesel

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    55 hp
  • DISPLACEMENT
    111 in³
  • NUMBER OF CYLINDERS
    3
  • ENGINE MODEL
    3FT-TH4-U
  • FUEL TANK
    14.8 gal

Dimensions

  • LENGTH
    139.6 in
  • WIDTH
    75 in
  • HEIGHT
    94.2 in
  • WEIGHT
    4,685 lb
  • GROUND CLEARANCE
    13 in
  • TURNING RADIUS
    9' 9"
  • WHEELBASE
    6' 3"
  • FRONT TIRE SIZE
    Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)
  • REAR TIRE SIZE
    Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

  • TOTAL HYDRAULIC FLOW
    17.8 gal/min
  • IMPLEMENT HYDRAULIC FLOW
    9.6 gal/min
  • STEERING HYDRAULIC FLOW
    8.2 gal/min
  • BRAKE TYPE
    Wet Multi Disc
  • TRANSMISSION TYPE
    Infinite, 3 Range Hydrostatic (Servo Control Valve With Electric Sol.)

Operational

  • TRAVEL SPEED
    28.2 km/h
  • TRAVEL SPEED - REVERSE
    28.2 km/h
  • 3-POINT HITCH
    Category 2
  • 3-PT LIFT CONTROL TYPE
    Position With Draft Control
  • LIFT CAPACITY AT 24" BEHIND LIFT POINT
    3,177 lb
  • REAR PTO SYSTEM
    Independent
  • REAR PTO - RPM
    540
  • PTO HP
    43.1 hp
  • MID PTO - RPM
    2,103

Loader Attachment

  • LOADER LIFT HEIGHT
    9' 1"
  • BUCKET WIDTH
    6' 0"
