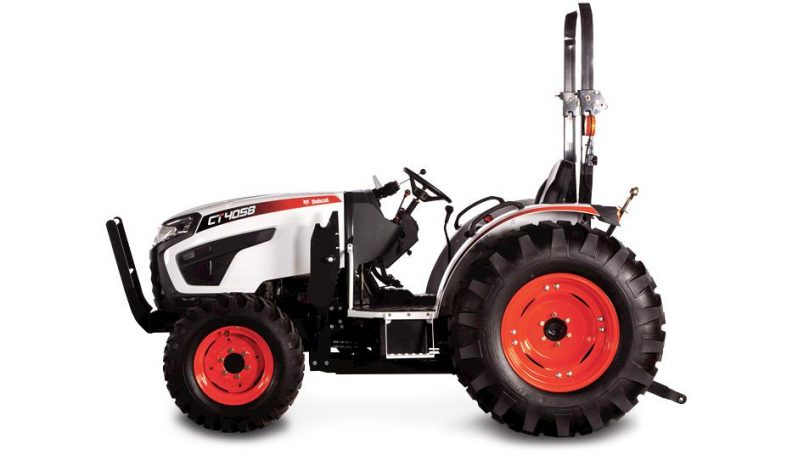

Bobcat CT4058

CT4058

Get rugged power and work efficiency with the turbo-charged, 58-hp Bobcat® CT4058 compact tractor. It can do all the work around a large or small farm property, from grading private roads and moving snow to mowing the lawn to clearing overgrown land. This compact tractor features an open cab that makes it convenient to get in and out of the machine throughout the day to change implements or open gates. Standard features include a Category 1 3-point hitch, independent rear PTO and hydrostatic transmission – a good choice for frequent front-end loader work such as cleaning stalls, mowing or maneuvering in tight areas. This powerful tractor is sure to become your ultimate heavy-duty work companion.

Compact Tractor Brochures:

Download CT4000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Hydrostatic Transmission
• Independent PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• 3-Point Hitch
• Roll-Over Protective Structure (ROPS)
• Deluxe Suspension Seat
• Work Lights
• One-Side Maintenance
• One-Piece Engine Hood
• All-In-One Fuse And Relay Box

Options

• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

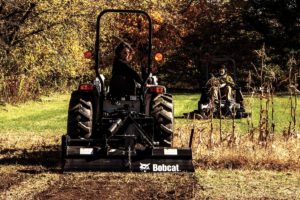

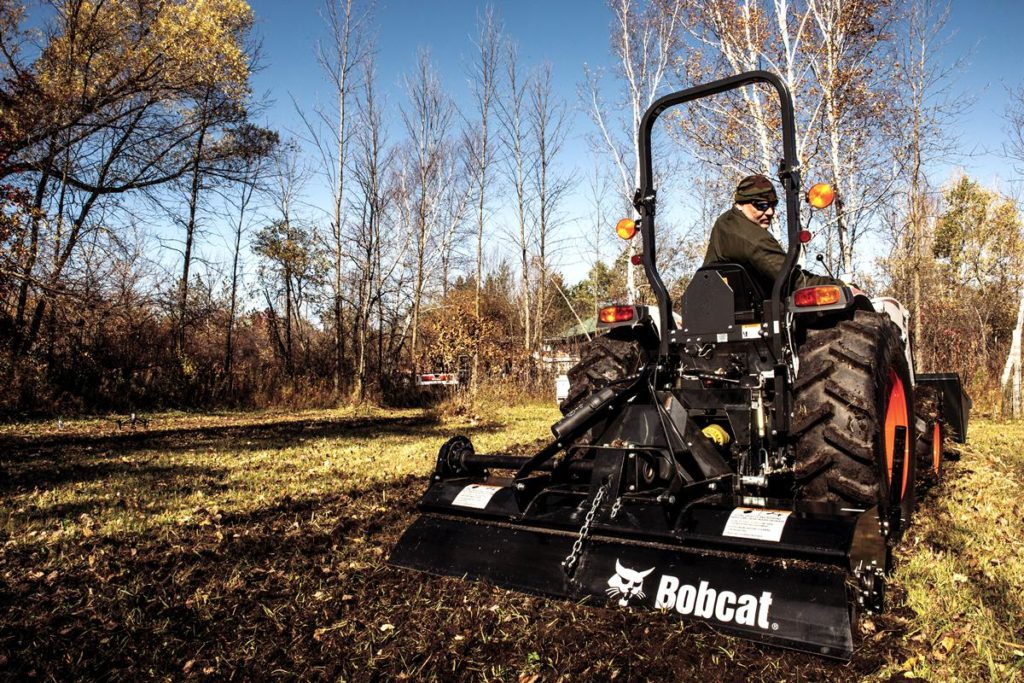

• Tiller
• Finish Mower

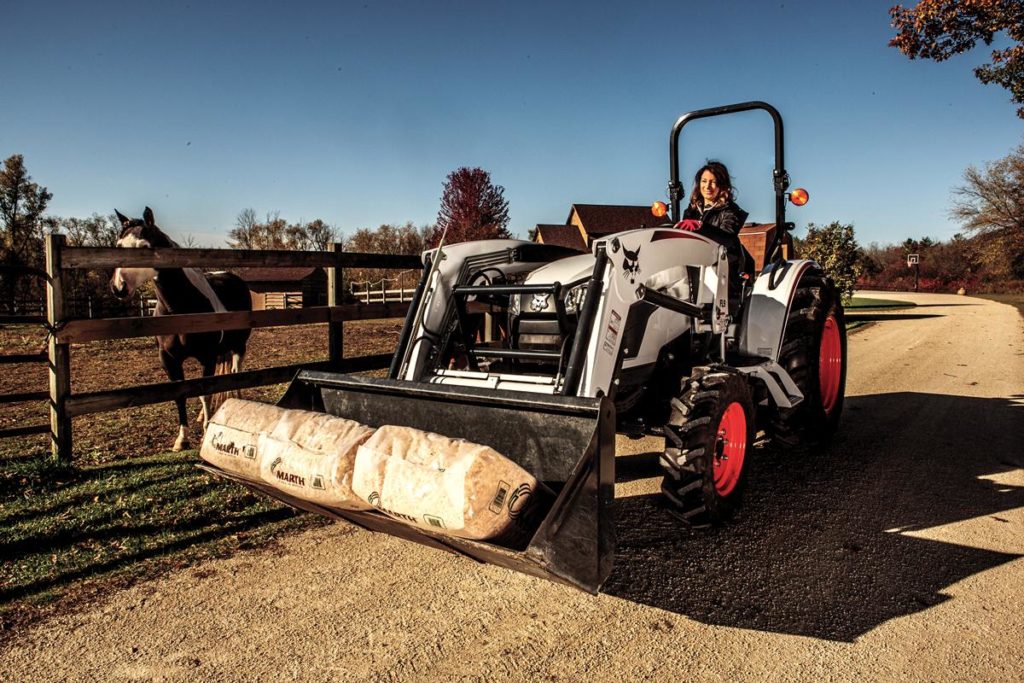

• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT4058

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  57.7 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3FT-THL4-U

• FUEL TANK

  11.9 gal

Dimensions

• LENGTH

  125.5 in

• WIDTH

  70 in

• HEIGHT

  97.4 in

• WEIGHT

  3,745 lb

• GROUND CLEARANCE

  15.3 in

• TURNING RADIUS

  8' 7"

• WHEELBASE

  5' 11"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  16.5 gal/min

• IMPLEMENT HYDRAULIC FLOW

  9.6 gal/min

• STEERING HYDRAULIC FLOW

  6.9 gal/min

• BRAKE TYPE

  Hydraulic Position Control System

• TRANSMISSION TYPE

  3-Range HST

Operational

• TRAVEL SPEED

  30 km/h

• TRAVEL SPEED - REVERSE

  20 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  2,716 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  45.1 hp

• MID PTO - RPM

  2,119

Loader Attachment

• LOADER LIFT HEIGHT

  8' 8"

• BUCKET WIDTH

  5' 6"
