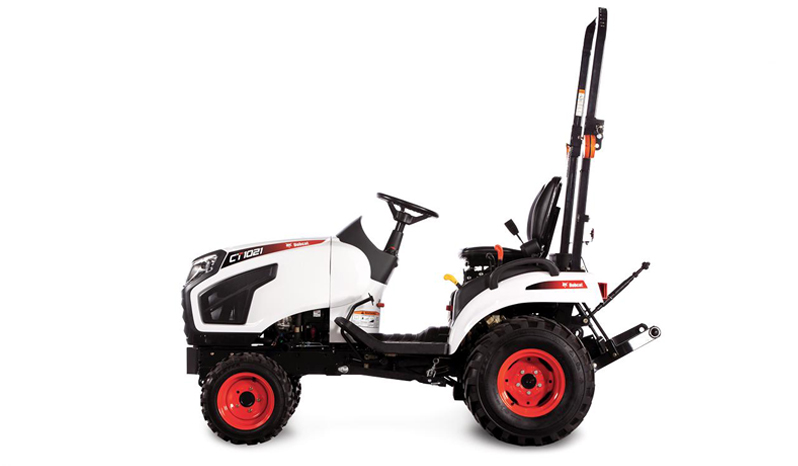

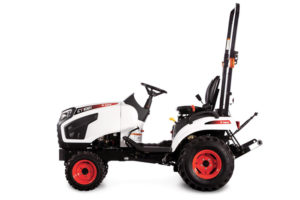

Bobcat CT1021

CT1021

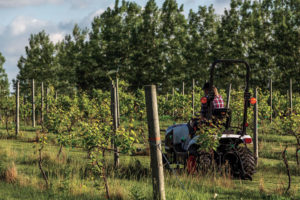

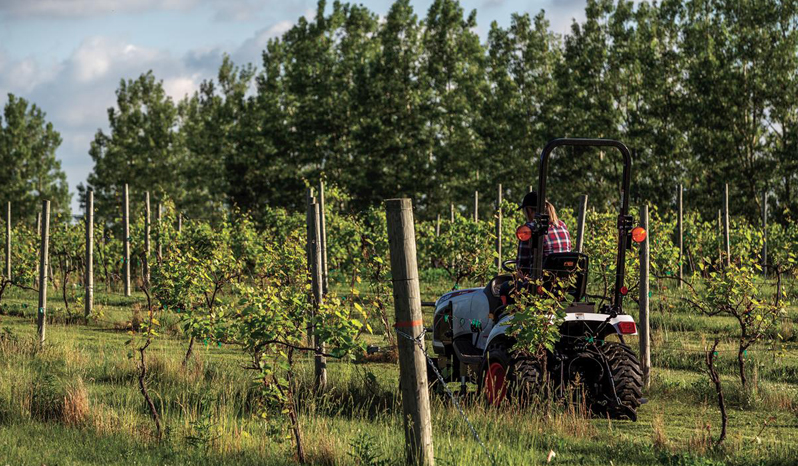

The easy-to-use Bobcat® CT1021 sub-compact tractor maneuvers around barns and sheds, making it perfect for a variety of projects around your small acreage. This versatile, 21-hp diesel sub-compact tractor is larger than lawn and garden tractors, and it offers a Category 1 3-point hitch, hydrostatic transmission and standard four-wheel drive to make quick work of mowing and other light-duty tasks around your home.

Compact Tractor Literature:

Download CT1000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Hydrostatic Transmission
• Four-Wheel Drive
• Power Steering

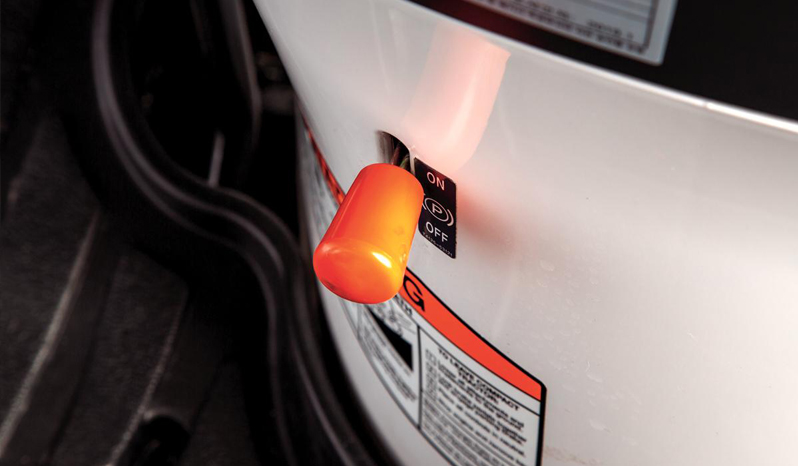

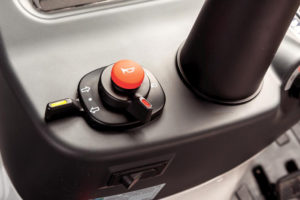

• Independent Rear PTO & Mid PTO
• A Category 1, 3-Point Hitch
• Vertically Opening Hood
• Roll Over Protective Structure (ROPS)

Options

• Three Tire Options

Popular Attachments

• Tiller
• Mower
• Angle Blade

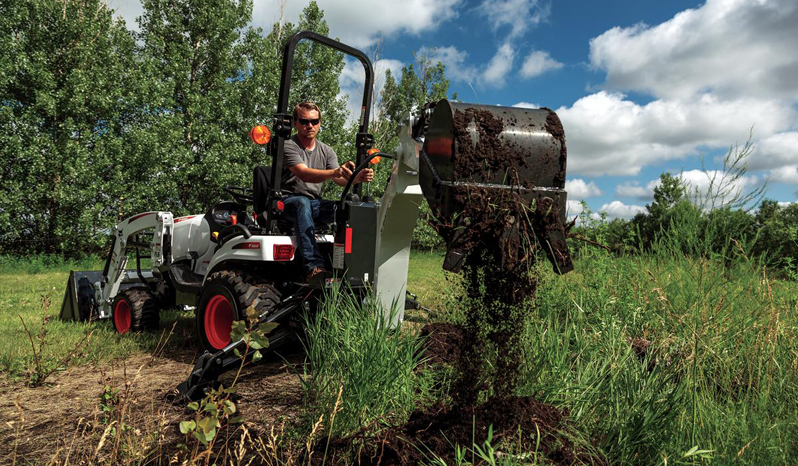

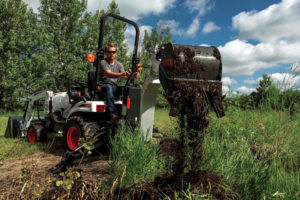

• Backhoe
• Front End Loader Arms
• Finish Mower

CT1021

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  21 hp

• DISPLACEMENT

  62 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3C100LWH-U2

• FUEL TANK

  6.7 gal

Dimensions

• LENGTH

  99.3 in

• WIDTH

  46 in

• HEIGHT

  87.6 in

• WEIGHT

  1,521 lb

• GROUND CLEARANCE

  6.3 in

• TURNING RADIUS

  8' 3"

• WHEELBASE

  4' 7"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 18X8.5-10 (18X8.5-10,18X8.5-10)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 26X12-12 (26X12-12,26X12-12)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  6.4 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  Infinite, 2 Range Hydrostatic

Operational

• TRAVEL SPEED

  17.7 km/h

• TRAVEL SPEED - REVERSE

  12 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  700 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  16.3 hp

• MID PTO - RPM

  2,200

Loader Attachment

• LOADER LIFT HEIGHT

  6' 0"

• BUCKET WIDTH

  4' 0"
