Trencher – LT113

Request a Quote

LT113 Trencher (MT/S70)

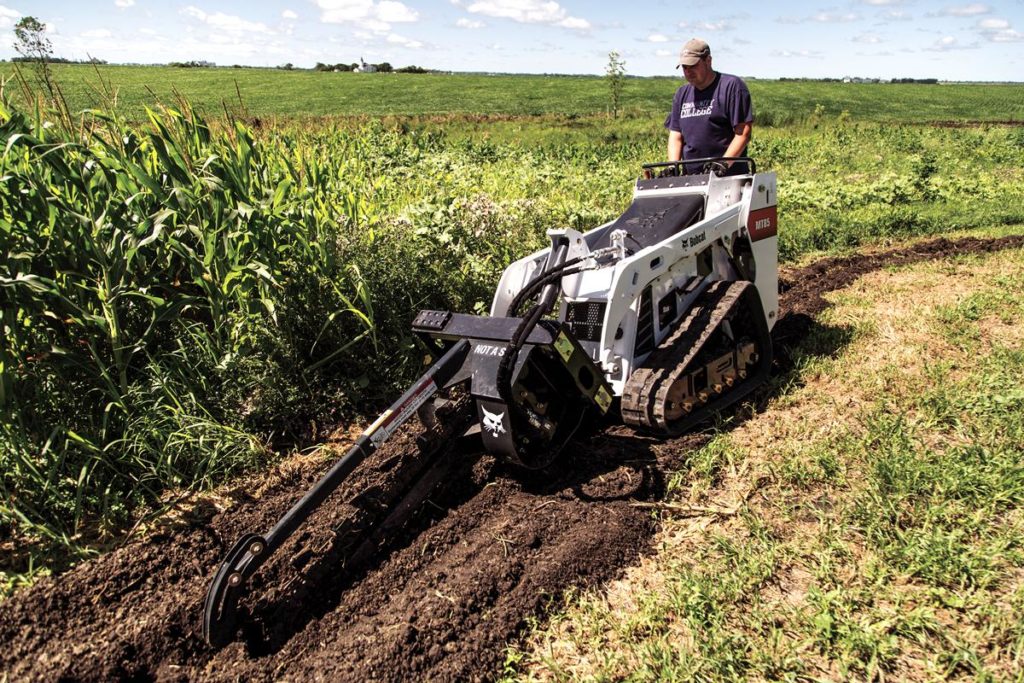

Tackle tough trenching jobs with the trencher attachment. Cut into the ground and create a trench through all soil conditions. The trencher is designed with the power and strength to dig in even the toughest, rocky soil types. Use the side-shift feature – manual or hydraulic, depending on the model – to dig a trench close to buildings, fences, and other objects. Equip the trencher with different teeth and chain options to maximize trenching capabilities in different soil conditions. The easy-to-use trencher attachment is built for improved trench digging and greater reliability on the jobsite. The trencher is the ideal attachment for maintenance crews, municipalities, landscaping contractors, and rental facilities.

Used For

  • Digging trenches for utility and irrigation systems, power & water lines
  • Trenching close to buildings, walls, fences & other objects

Pricing

  • Daily Cost: $240
  • Weekly Cost: $840
  • Monthly Cost: Request a Quote

Features

  • Auger: Designed with a large diameter, the auger moves material from the side of the trench, limiting the amount of spoil falling back into the trench.
  • Grease Cylinder Tensioning: Quickly and easily adjust your train to the proper tension.
  • Crumber: Standard on each trencher model to help remove soil from the trench and provide a clean, smooth trench bottom.
  • Reverse Rotation: All trencher models are capable of momentarily reversing the chain direction to minimize stalling.
  • Narrow Frame Width: Narrow enough to fit into a pickup box to make transportation easy.
  • Powerful Operation: From black dirt to gravel, the powerful operation of the trencher digs through even tough, rocky soil types to build a trench.
  • Side-Shift: Provides attachment flexibility when working next to building or objects, allowing the trencher to achieve optimal productivity in all ground conditions and locations.

LT113 Trencher (MT/S70)

Specs

  • WEIGHT
    638 lb
  • LENGTH
    74 in
  • WIDTH
    36 in
  • AUGER DIAMETER
    12 in
  • FRAME WIDTH
    36 in
  • MAX OPERATING PRESSURE
    3,000 psi
  • SIDE SHIFT TRAVEL
    16.1 in
  • SIDE SHIFT TYPE
    Manual
  • CHAIN TENSIONING
    Grease Cylinder
  • CHAIN OPTIONS
    Multiple
  • FLOW RANGE
    9-15 GPM
  • AUGER CLEARANCE
    13.8-15.8 in
  • STANDARD BOOM LENGTH
    52.5 in
  • DIG DEPTH
    36 in
  • WIDTHS AVAILABLE MIN
    4 in
  • WIDTHS AVAILABLE MAX
    8 in
