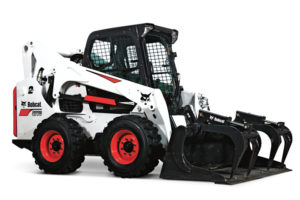

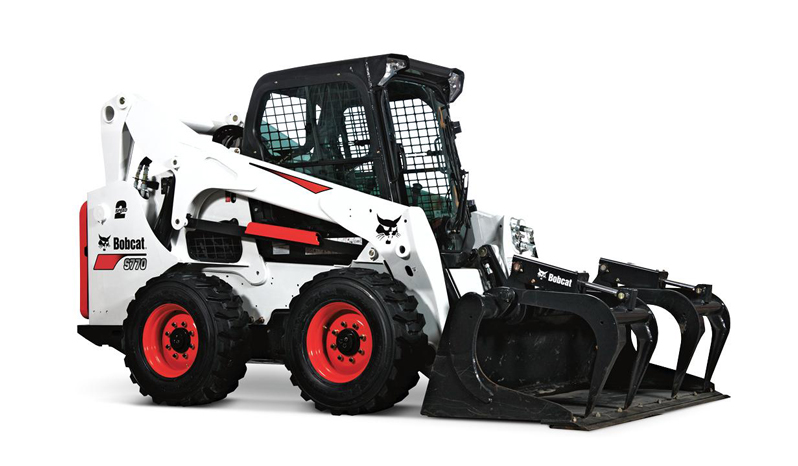

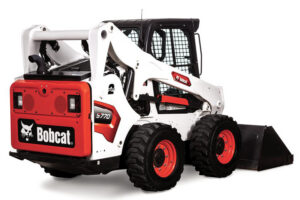

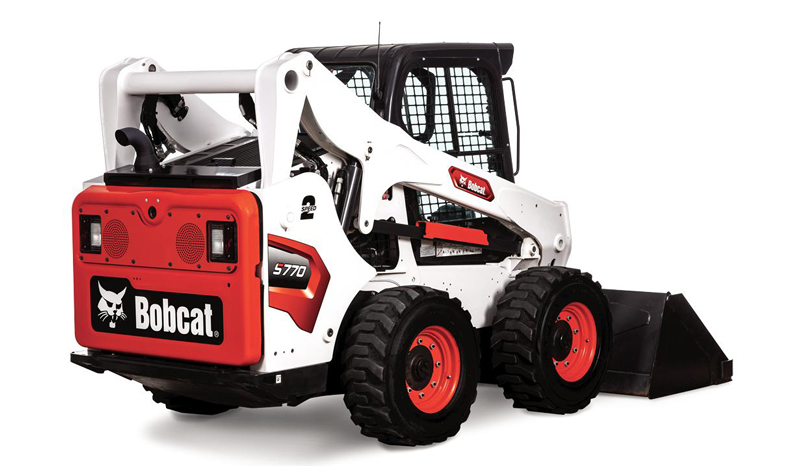

Bobcat S770

Rent Equipment

S770

The Bobcat® S770 delivers big productivity and performance for tough digging, loading, pushing, grading and other tough assignments. With a 92 horsepower engine, 3,350 pound Rated Operating Capacity (ROC), stronger lifting power (up to 11 feet of vertical lift) and added reach, you can easily place cargo and tackle your most demanding tasks. The S770 also has improved hydraulic flow, providing you with the versatility to operate the most powerful Bobcat® attachments. Like all M-series models, the S770 has an industry-leading cab design that offers improved comfort, visibility and operator-friendly features. The optional pressurized cab provides a cleaner and 60 percent quieter work environment.

Pricing

  • Daily Cost: Request a Quote
  • Weekly Cost: Request a Quote
  • Monthly Cost: Request a Quote

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Operating Lights
  • Parking Brake
  • Rear Window
  • Top Window
  • Lift-Arm Support
  • Seat Belt
  • Engine Shutdown
  • Auxiliary Hydraulics
  • Spark Arrestor Muffler
  • Bob-Tach Attachment System
  • Horn

Frequently Rented With

  • Breaker
  • Auger
  • Sweeper
  • Pallet Forks
  • Rock Bucket
  • Industrial Grapple

S770

Dimensions

  • LENGTH
    141.6 in
  • LENGTH WITHOUT BUCKET
    114.3 in
  • HEIGHT
    81.3 in
  • WIDTH
    72.1 in
  • WIDTH WITH BUCKET
    74 in
  • WEIGHT
    9,314 lb
  • WHEELBASE
    48.3 in
  • TURNING RADIUS
    85.8 in
  • REACH AT MAX HEIGHT
    33.6 in

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    92 hp
  • FUEL TYPE
    Diesel
  • FUEL TANK CAPACITY
    23.9 gal
  • COOLING
    Liquid

Hydraulics

  • AUXILIARY STD FLOW
    23 gal/min
  • AUXILIARY HIGH FLOW
    36.6 gal/min
  • SYSTEM RELIEF AT QUICK COUPLERS
    3,500 psi

Operational

  • RATED OPERATING CAPACITY
    3,350 lb
  • TIPPING LOAD
    6,700 lb
  • TRAVEL SPEED
    11.4 km/h
  • TRAVEL SPEED - 2-SPEED OPTION
    19.8 km/h
