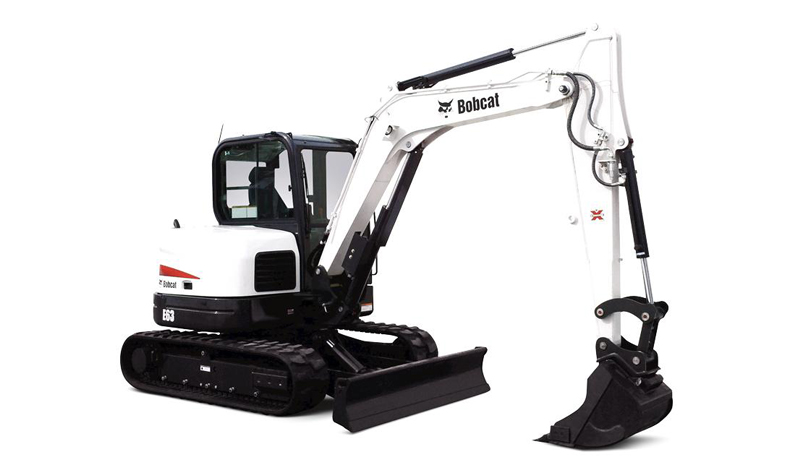

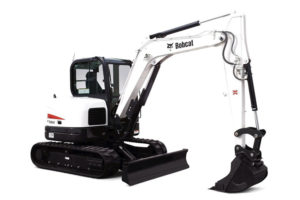

Bobcat E63

  • Make
    Bobcat
  • Type
    Bobcat Excavator Rental
  • Dig Depth
    13.5 ft
  • Width
    78 in
  • Weight
    13,779 lb
  • Engine
    Tier 4
  • Fuel Type
    Diesel
Rent Equipment

E63

With best-in-class over-the-side lifting performance, the Bobcat® E63 compact excavator attacks your most difficult jobs. Improved slew performance makes it an ideal machine for working on slopes. The Tier 4-compliant E63 is a conventional tail swing model. You’ll remain comfortable all day long in the standard, fully adjustable super deluxe seat.

Pricing

  • Daily Cost: Request a Quote
  • Weekly Cost: Request a Quote
  • Monthly Cost: Request a Quote

Features

  • Air Conditioning
  • Enclosed Cab
  • Cab Heater
  • Auxiliary Hydraulics
  • Quick-Tach System
  • Rubber Track
  • Selectable Auxiliary Hydraulic Flow

Frequently Rented With

  • Auger
  • Clamp
  • Breaker
  • Hydra-Tilt
  • Power-Tilt
  • Plate Compactor

E63

Dimensions

  • LENGTH
    147.6 in
  • HEIGHT
    100.4 in
  • WIDTH
    78 in
  • WEIGHT
    13,779 lb

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    59.4
  • FUEL TANK CAPACITY
    20.6 gal
  • FUEL TYPE
    Diesel

Hydraulics

  • SYSTEM RELIEF PRESSURE
    3,046 psi
  • AUXILIARY STD FLOW
    22.5 gal/min

Operational

  • TRAVEL SPEED - HIGH
    4.7 km/h
  • TRAVEL SPEED - LOW
    2.6 km/h
  • ARM DIGGING FORCE
    5,767 lbf
  • BUCKET DIGGING FORCE
    9,731 lbf
  • MAX DIG DEPTH
    13.5 ft
  • MAX REACH AT GROUND LEVEL
    20.4 ft
  • MAX DUMP HEIGHT
    14 ft
  • RATED LIFT CAPACITY
    5,902 lb
  • LIFT RADIUS
    118 in
  • BOOM SWING RADIUS - LEFT
    70°
  • BOOM SWING RADIUS - RIGHT
    50°
  • TAIL SWING RADIUS
    Conventional
