Bobcat E35

  • Make
    Bobcat
  • Type
    Bobcat Excavator Rental
  • Dig Depth
    10.2 ft
  • Width
    69 in
  • Weight
    8,377 lb
  • Engine
    Tier 4
  • Fuel Type
    Diesel
Request a Quote

E35

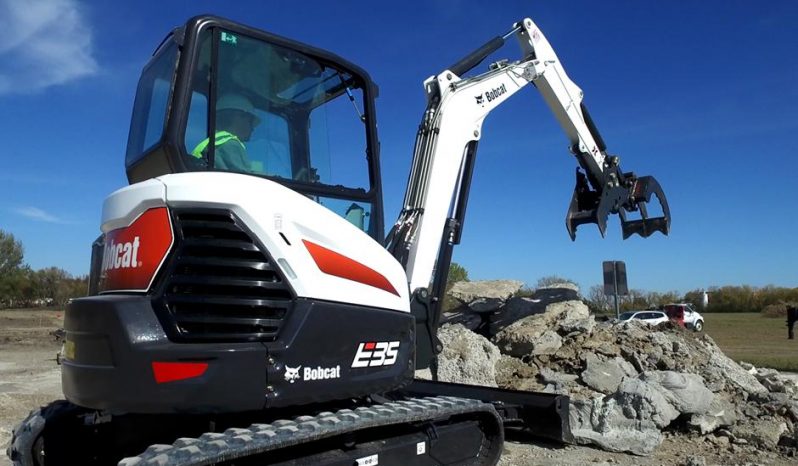

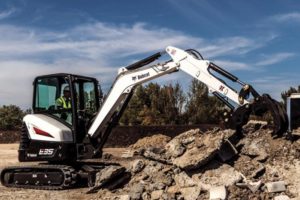

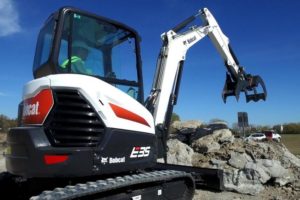

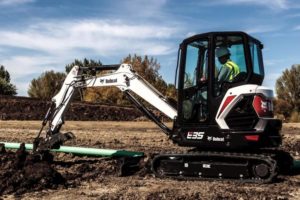

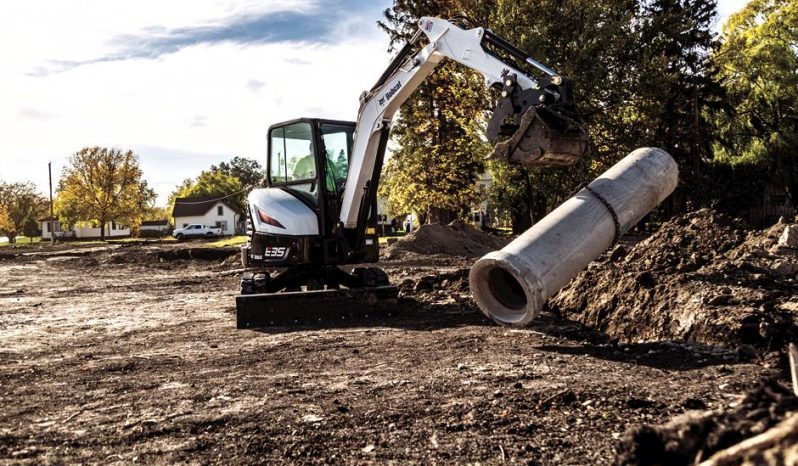

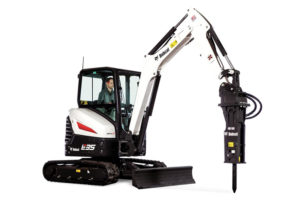

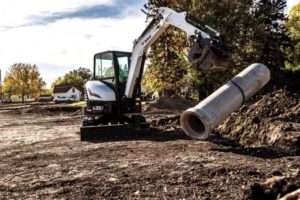

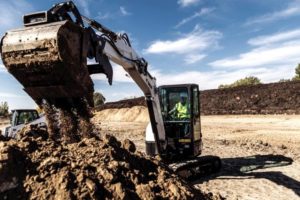

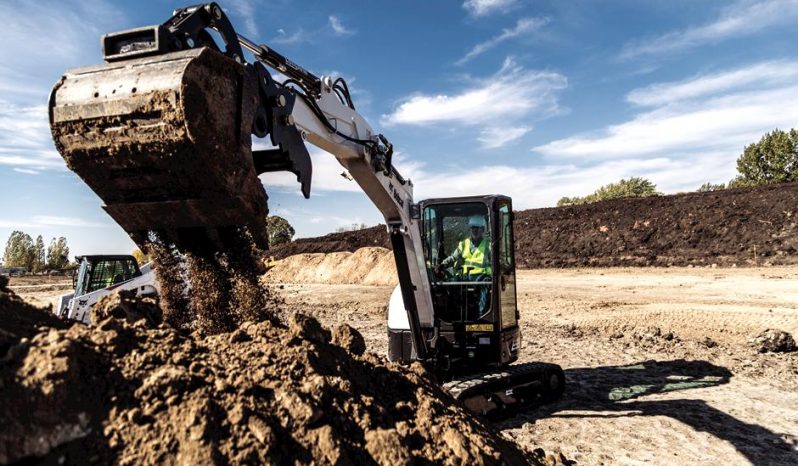

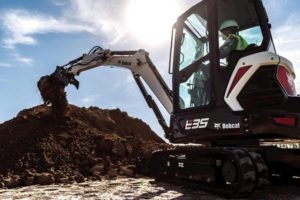

Part of the R-Series, the Bobcat® E35 compact (mini) excavator is a popular choice in the 3-ton size class. Zero Tail Swing (ZTS) provides unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property. It’s available with an angle blade option, long arm option or clamp-ready extendable arm option. Upgrade to an optional 33 hp engine for even more productivity.

Pricing

  • Daily Cost: Request a Quote
  • Weekly Cost: Request a Quote
  • Monthly Cost: Request a Quote

Features

  • Auxiliary Hydraulics
  • Engine Shutdown
  • Quick-Tach System
  • Rubber Track
  • Selectable Auxiliary Hydraulic Flow

Frequently Rented With

  • Auger
  • Clamp

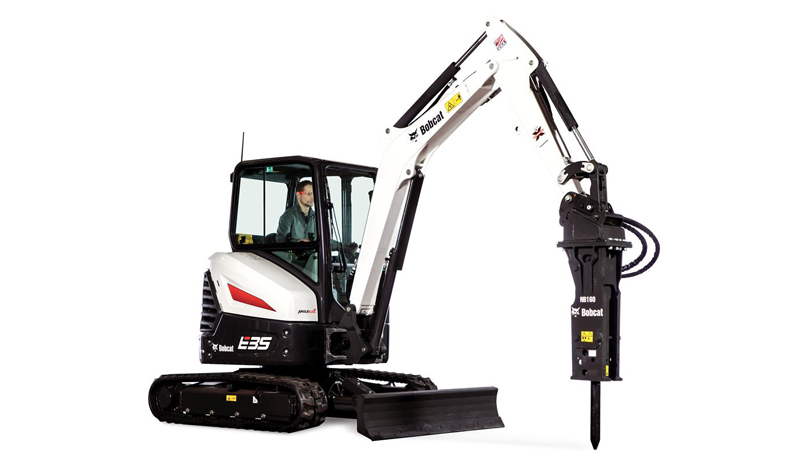

  • Breaker
  • Hydra-Tilt
  • Power-Tilt
  • Ripper

E35

Dimensions

  • LENGTH
    189.9 in
  • HEIGHT
    96.2 in
  • WIDTH
    69 in
  • WEIGHT
    8,377 lb

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    24.8 hp
  • FUEL TANK CAPACITY
    13.7 gal
  • FUEL TYPE
    Diesel

Hydraulics

  • SYSTEM RELIEF PRESSURE
    2,987 psi
  • AUXILIARY STD FLOW
    16.9 gal/min

Operational

  • TRAVEL SPEED - HIGH
    4.7 km/h
  • TRAVEL SPEED - LOW
    2.6 km/h
  • ARM DIGGING FORCE
    4,859 lbf
  • BUCKET DIGGING FORCE
    6,968 lbf
  • MAX DIG DEPTH
    11.2 ft
  • MAX REACH AT GROUND LEVEL
    18.1 ft
  • MAX DUMP HEIGHT
    11.6 ft
  • RATED LIFT CAPACITY
    3,232 lb
  • LIFT RADIUS
    118 in
  • BOOM SWING RADIUS - LEFT
    75°
  • BOOM SWING RADIUS - RIGHT
    55°
  • TAIL SWING RADIUS
    Zero
