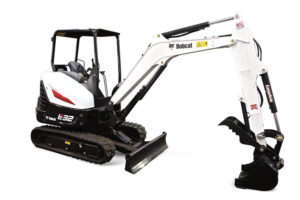

Bobcat E32

  • Make
    Bobcat
  • Type
    Bobcat Excavator Rental
  • Dig Depth
    11.2 ft
  • Width
    61 in
  • Weight
    8,203 lb
  • Engine
    Tier 4
  • Fuel Type
    Diesel
Request a Quote

E32

Part of the R-Series, the Bobcat® E32 compact (mini) excavator packs powerful performance and maneuverability into a conventional tail swing design. Narrower than the E35, this machine is ideal if you frequently work around width restrictions such as doors or gates. Boost your digging performance with the long arm option or a clamp-ready extendable arm option.

Pricing

  • Daily Cost: Request a Quote
  • Weekly Cost: Request a Quote
  • Monthly Cost: Request a Quote

Features

  • Engine Shutdown
  • Auxiliary Hydraulics
  • Quick-Tach System
  • Rubber Track
  • Selectable Auxiliary Hydraulic Flow

Frequently Rented With

  • Auger
  • Clamp
  • Breaker
  • Hydra-Tilt
  • Power-Tilt
  • Ripper

E32

Dimensions

  • LENGTH
    183.5 in
  • HEIGHT
    96.2 in
  • WIDTH
    61 in
  • WEIGHT
    8,203 lb

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    24.8 hp
  • FUEL TANK CAPACITY
    13.7 gal
  • FUEL TYPE
    Diesel

Hydraulics

  • SYSTEM RELIEF PRESSURE
    2,987 psi
  • AUXILIARY STD FLOW
    16.9 gal/min

Operational

  • TRAVEL SPEED - HIGH
    4.7 km/h
  • TRAVEL SPEED - LOW
    2.6 km/h
  • ARM DIGGING FORCE
    4,589 lbf
  • BUCKET DIGGING FORCE
    6,968 lbf
  • MAX DIG DEPTH
    11.2 ft
  • MAX REACH AT GROUND LEVEL
    17.4 ft
  • MAX DUMP HEIGHT
    11.5 ft
  • RATED LIFT CAPACITY
    2,564 lb
  • LIFT RADIUS
    118 in
  • BOOM SWING RADIUS - LEFT
    75°
  • BOOM SWING RADIUS - RIGHT
    55°
  • TAIL SWING RADIUS
    Conventional
