Grapple Buckets – 62″-74″

Request a Quote

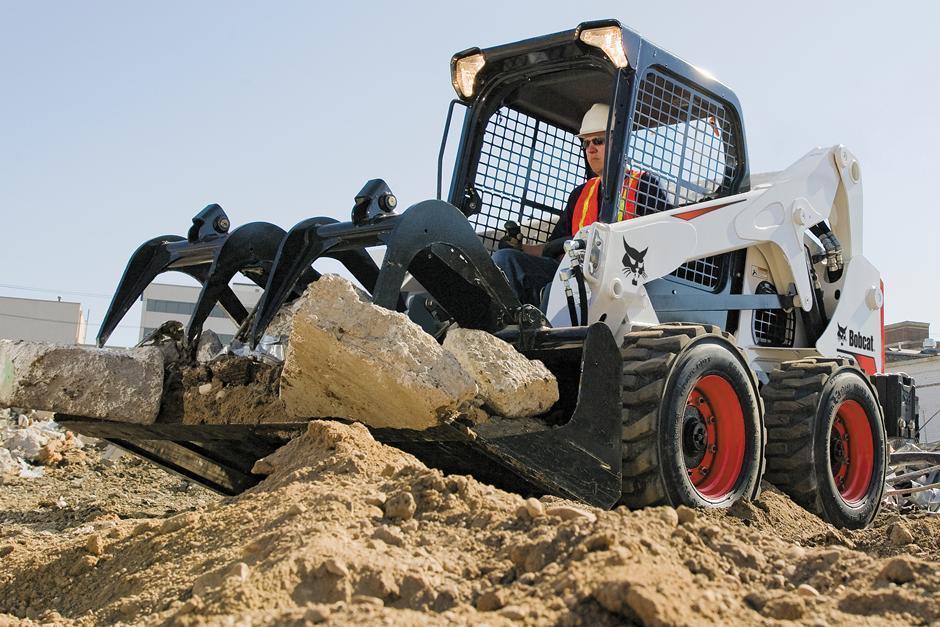

62″ / 68″ / 74″ Industrial Grapple Bucket

Grab onto and hold the toughest materials with the Bobcat industrial grapple attachment. Built for maximum power and reliability, it delivers easy handling of hard-to-manage materials in the industrial or construction setting. The two-arm design of the larger models provide strong, even biting force and with the hydraulic controls, it’s easy to operate and can securely handle bulky or uneven loads. Choose from a bucket or fork bottom for maximum load capability and sink into the toughest jobs all day, every day.

Used For

  • Handling demolition rubble & building materials
  • Handling recycling, salvage & scrap metal

Pricing

  • Daily Cost: $180
  • Weekly Cost: $630
  • Monthly Cost: Request a Quote

Features

  • Removable Hose Guide: Provides hose routing when the grapple is attached.
  • Hose Routing and Protection: Reduces exposure to snags and other hazards.
  • Replaceable Cutting Edge: Standard equipment for bucket protection.
  • Reinforced Tines: Backed by more steel and greater reinforcement.
  • Open Grapple Design: Provides superior visibility to the work area.
  • Greaseable Pivot Points: Provide long life for pins and bushings.
  • Inertia-Welded Cylinder Ends: Deliver strong, smooth operation by improving hydraulic cushioning at the end of the stroke.
  • Dual Cylinders: Provide the ability to secure uneven loads better.

62″ / 68″ / 74″ Industrial Grapple Bucket

Industrial Grapple Bucket - 62"

  • WEIGHT
    884 lb
  • LENGTH
    41.1 in
  • WIDTH
    62 in
  • HEIGHT
    30.2 in
  • OPEN HEIGHT
    42.5 in
  • CLOSED HEIGHT
    30.2 in
  • CLOSED LENGTH
    41.1 in
  • NUMBER OF GRAPPLE TINES
    2

Industrial Grapple Bucket - 68"

  • WEIGHT
    922 lb
  • LENGTH
    41.1 in
  • WIDTH
    68 in
  • HEIGHT
    30.2 in
  • OPEN HEIGHT
    45.8 in
  • CLOSED HEIGHT
    37 in
  • CLOSED LENGTH
    41.1 in
  • NUMBER OF GRAPPLE TINES
    2

Industrial Grapple Bucket - 74"

  • WEIGHT
    872 lb
  • LENGTH
    41.1 in
  • WIDTTH
    74 in
  • HEIGHT
    30.2 in
  • OPEN HEIGHT
    42.5 in
  • CLOSED HEIGHT
    30.2 in
  • CLOSED LENGTH
    41.1 in
  • NUMBER OF GRAPPLE TINES
    2
