Wheel Saw

Wheel Saw

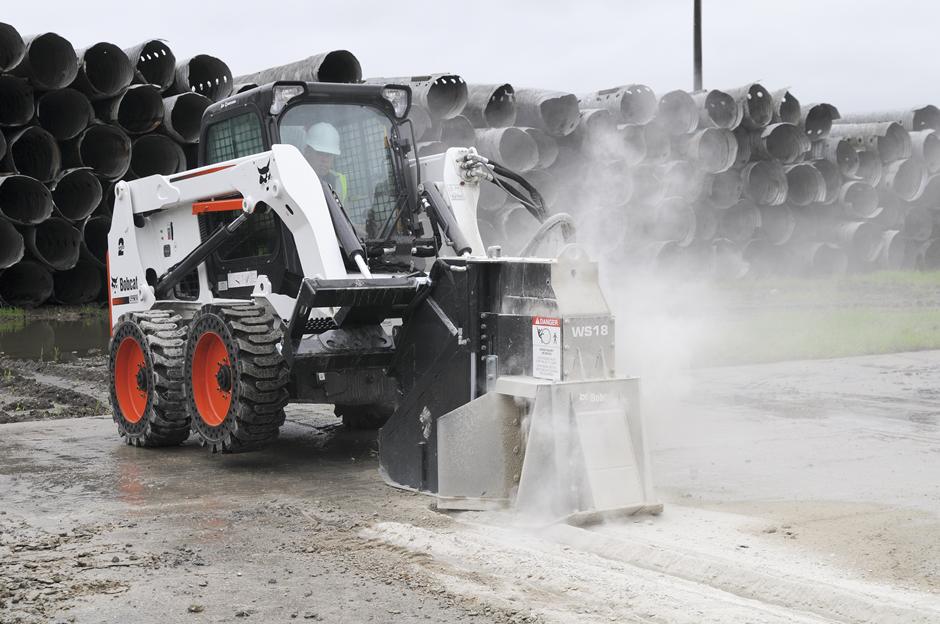

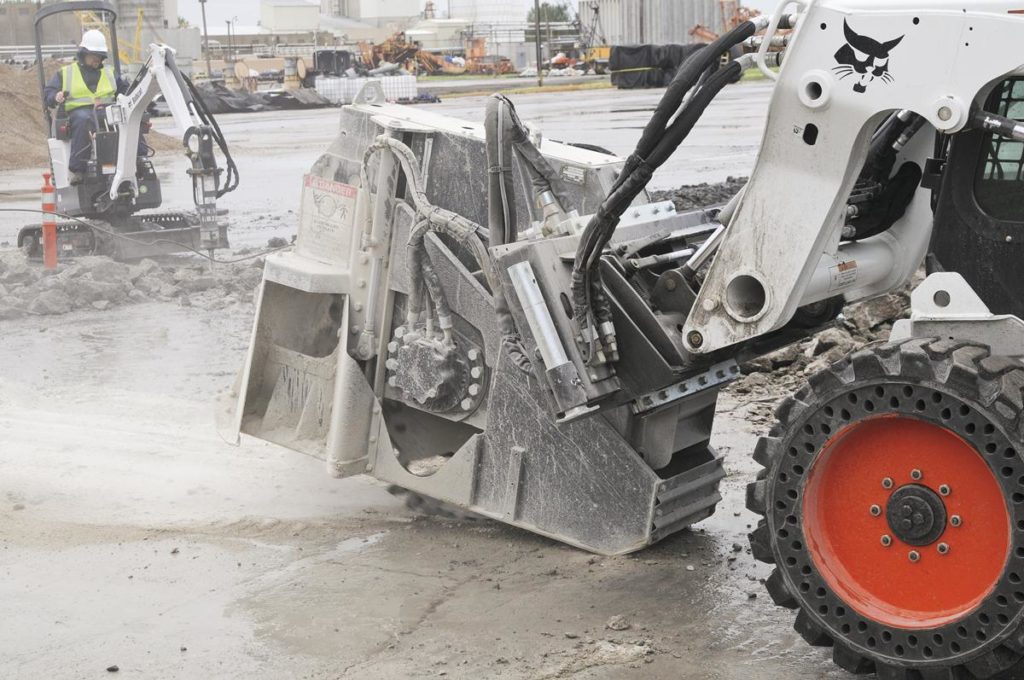

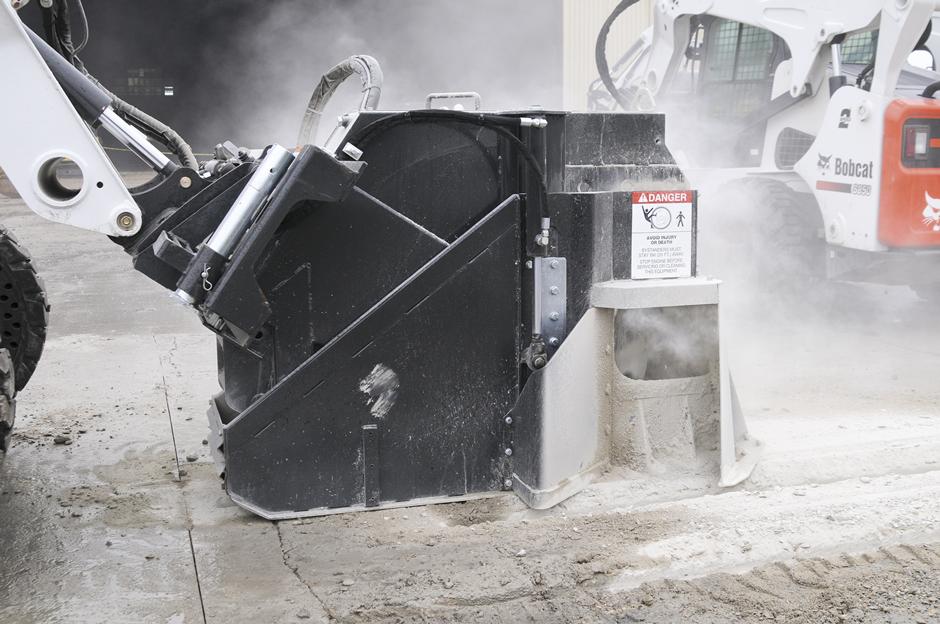

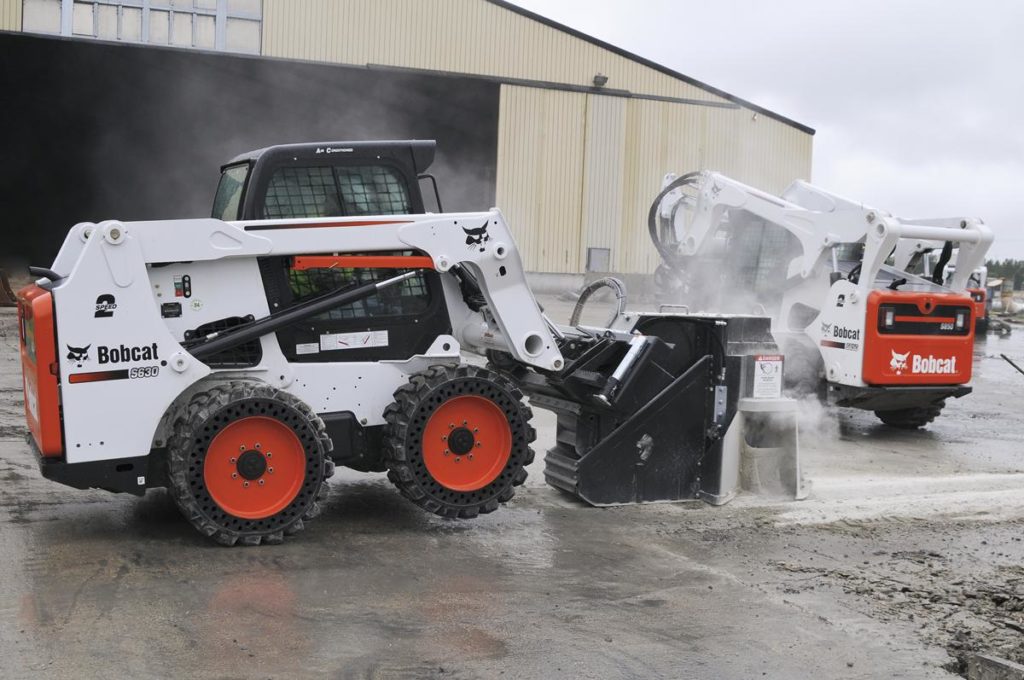

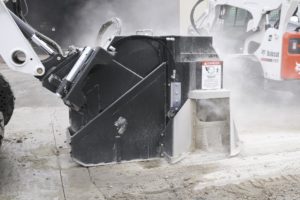

Powered by the carrier’s high-flow hydraulics, the wheel saw cuts through concrete, asphalt and other hard materials to create a trench for installing utility lines. Operating with minimal damage to the surrounding jobsite, the hydraulic side-shift feature allows the attachment to shift flush with any nearby object. For a precise cut, the hydraulic depth adjustment gauge will help deliver a consistent, uniform cut depth and the trench cleaner (available with 6-in and 8-in wheels only) is raised and lowered hydraulically to assure a clean trench for installation.

Used For

• Cutting trenches for installing water, gas, electrical, utility & fiber optics

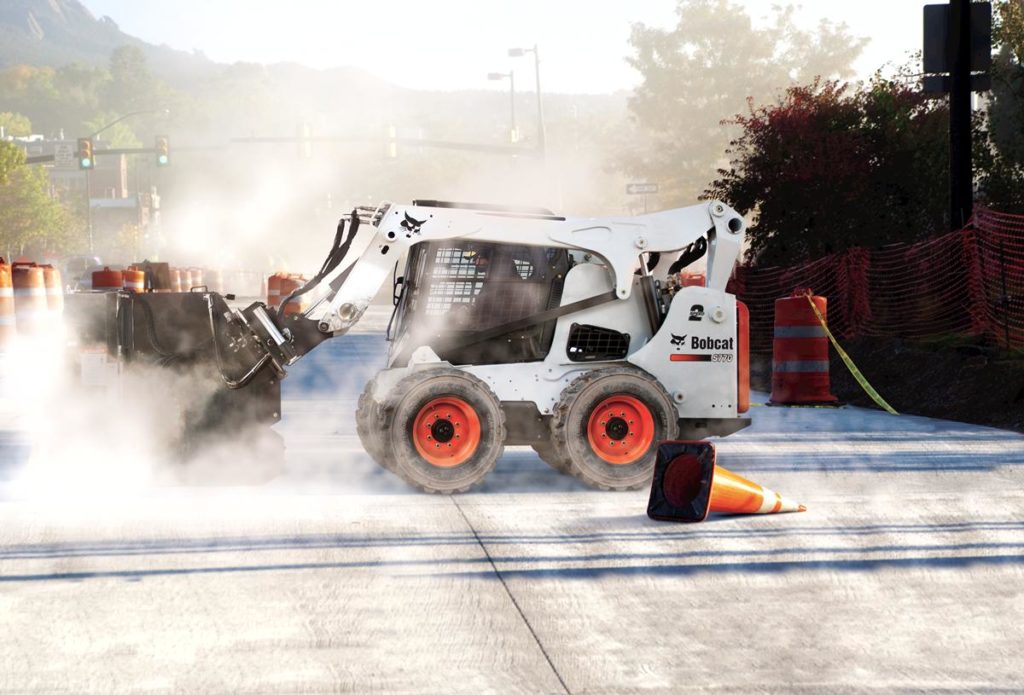

• Preparing pavement for repairs
• Cutting through asphalt, rebar, concrete, frozen ground & wire mesh

Features

• Carbide-Tipped Bits: For longer tooth wear.
• Hydraulic Depth Adjustment: Depth gauge provides a uniform depth control.
• Hydraulic Side-Shift: Allows the attachment to shift flush with any nearby object.
• Side Cutter Teeth: Reduces wear to the side of the wheel.
• Skis: Provides maximum stability and cutting accuracy.
• Spoil Deflectors: Push milled materials away from the trench.
• Stands: Storage stands raise the skis when the attachment is not in use.
• Trench Cleaner: Hydraulically controlled, ensures a clean trench is left behind.
• Hour Meter: Hours are electronically stored on the attachment.

Wheel Saw

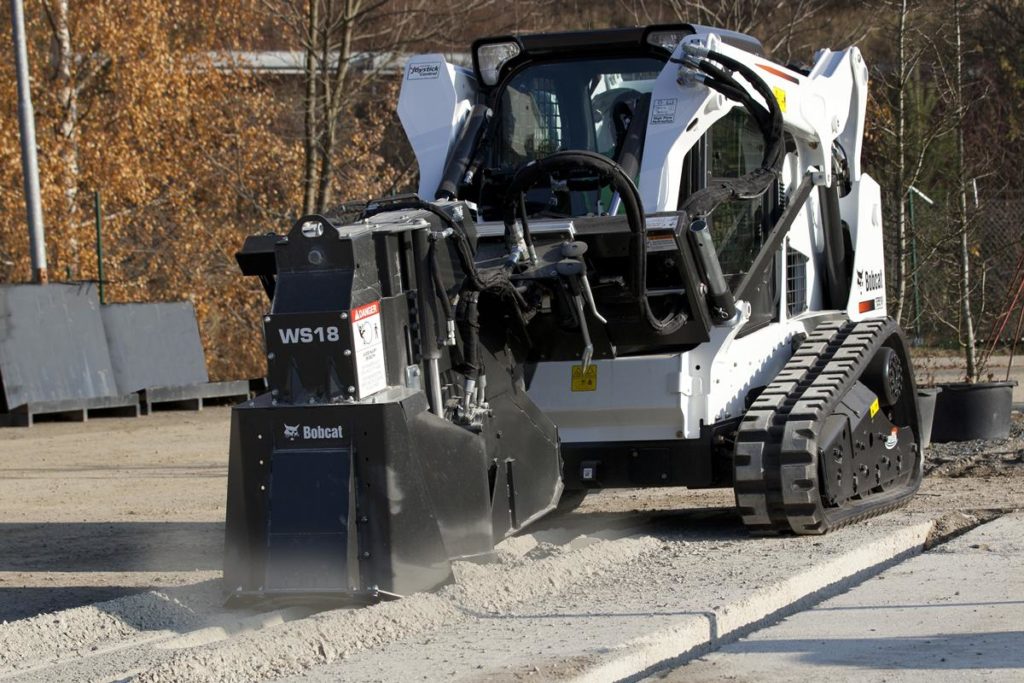

WS18

• WEGHT

  2,249 lb

• LENGTH

  74.8 in

• WIDTH

  68.5 in

• HEIGHT

  65 in

• WEIGHT LESS WHEEL & TRENCH CLEANER

  1,567 lb

• HYDRAULIC SIDE SHIFT

  25.6 in

• TRENCHING DEPTH MIN

  6 in

• TRENCHING DEPTH MAX

  18 in

WS24

• WEGHT

  2,723 lb

• LENGTH

  83.9 in

• WIDTH

  68.5 in

• HEIGHT

  76 in

• WEIGHT LESS WHEEL & TRENCH CLEANER

  1,865 lb

• HYDRAULIC SIDE SHIFT

  25.6 in

• TRENCHING DEPTH MIN

  8 in

• TRENCHING DEPTH MAX

  24 in
