Vibratory Roller

Want to rent before you buy? SEE RENTALS

Request a Quote

Vibratory Roller

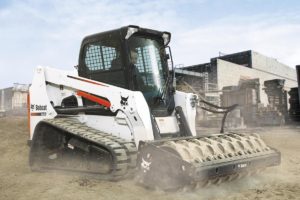

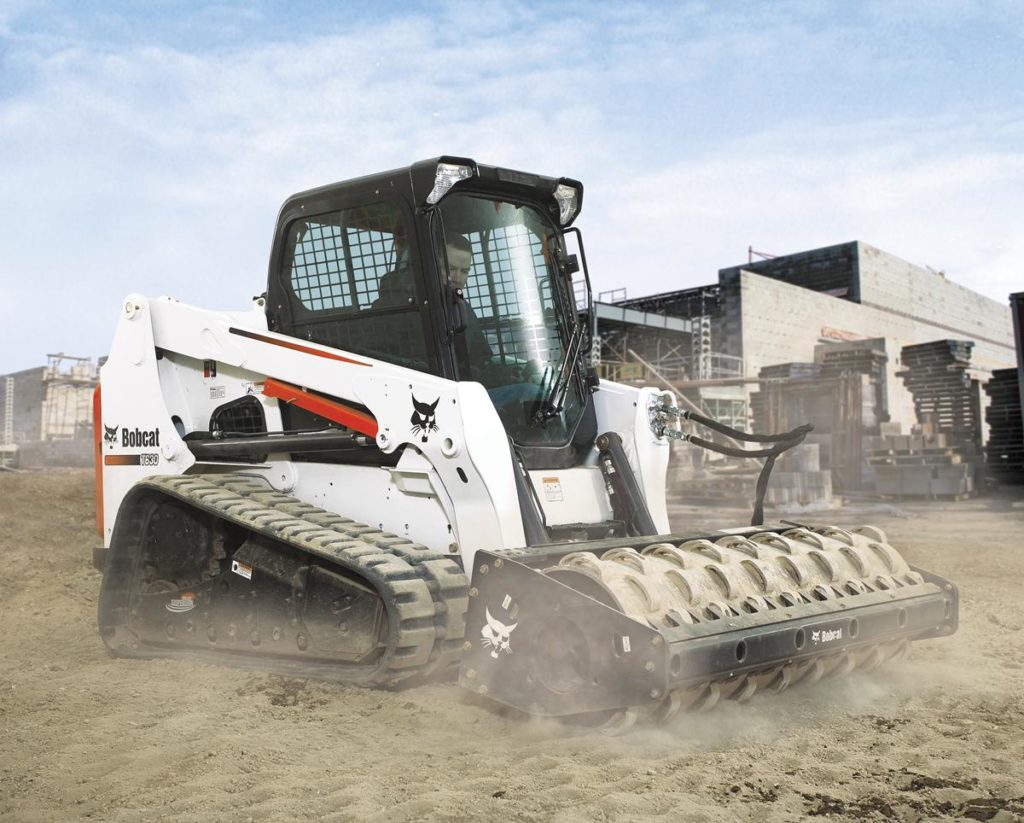

Tackle big jobs and uneven terrain with the vibratory roller attachment. Packing hard in both forward and reverse, the oscillation of the drum allows the roller to follow contours on uneven terrain, offering more precise control when moving on slopes. Designed for better operator comfort, the isolation mounting system reduces vibration transferred to the operator, meaning less fatigue and a more comfortable working condition. When working in a tight area, the offset drum design allows for moving tight against sidewalks, walls and curbs.



Used For

  • Site preparation
  • Paving, patching, trenching & flatwork

Features

  • Bi-Directional Operation: Dual-direction vibration motor permits compaction while traveling in either direction.
  • Drum Oscillation: Free drum oscillation keeps more of the drum in contact with the surface on uneven terrain.
  • Isolation Mounting System: Reduces vibration transferred to the operator.

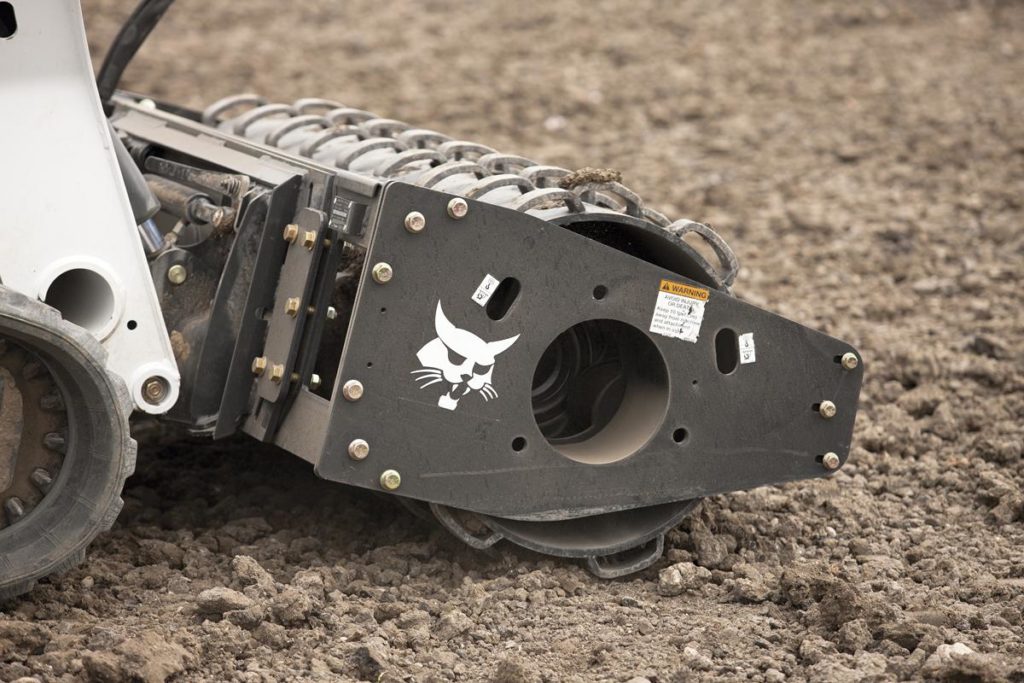

  • Offset Drum Design: Allows the right side of roller to extend past the machine.
  • Oil-Bath Bearings: Eliminates the need for daily greasing.

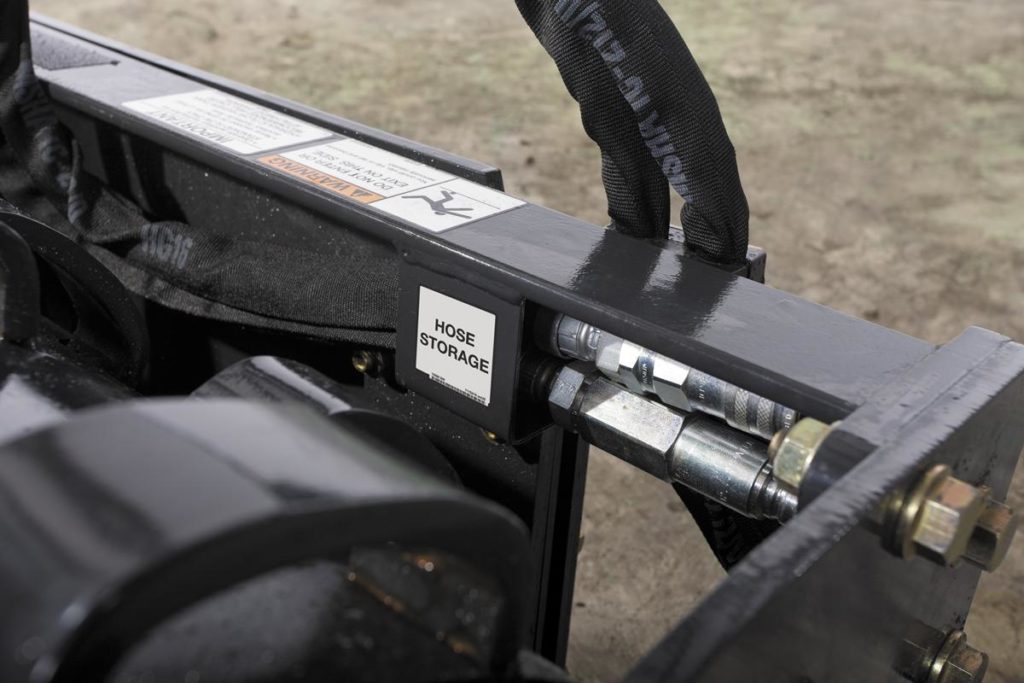

  • Protected Hose Routing: Maximizes uptime and keeps couplers clean.
  • Scrapers: Keep the drum clean for better ground contact and compaction.
  • Bob-Tach® Mounting System: Fast and easy attachment changes.

Options

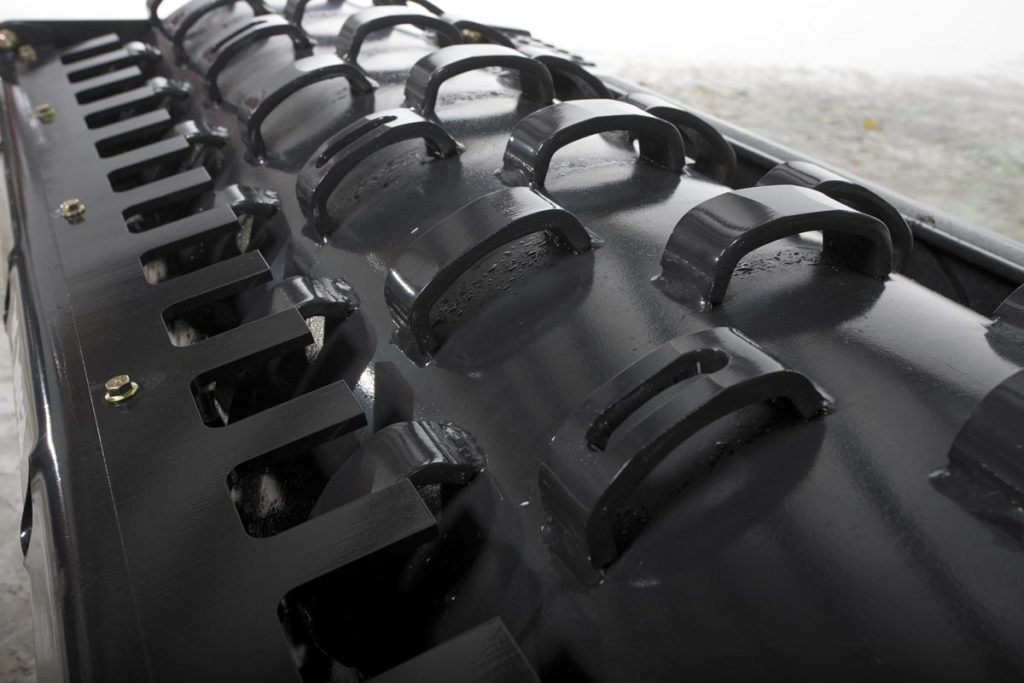

  • Padded Drum: For heavy soils, clay, & clay-based backfill compaction.

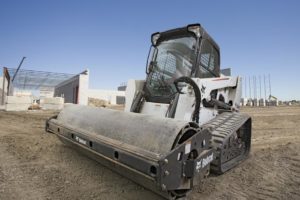

  • Smooth Drum: For sand, pea rock, gravel, & asphalt patching.

Vibratory Roller

Padded Drum - 48"

  • WEIGHT
    1,778 lb
  • LENGTH
    38.1 in
  • WIDTH
    60.5 in
  • HEIGHT
    25.4 in
  • DRUM WIDTH
    48 in
  • COVERS RIGHT SIDE TIRES ON
    66-in wide loaders
  • DRUM OFFSET
    9 in to right
  • DRUM OSCILLATION
    +/- 12°
  • DYNAMIC FORCE
    10,519 lb at 17 gal/min / 14,244 lb at 20 gal/min
  • FREQUENCY
    2,448 vpm at 17 gal/min / 2,879 vpm at 20 gal/min
  • NUMBER OF PADS
    78
  • DRUM DIAMETER
    25.4 in

Smooth Drum - 48"

  • WEIGHT
    17,88 lb
  • LENGTH
    38.1 in
  • WIDTH
    60.5 in
  • HEIGHT
    26 in
  • DRUM WIDTH
    48 in
  • COVERS RIGHT SIDE TIRES ON
    66-in wide loaders
  • DRUM OFFSET
    9 in to right
  • DRUM OSCILLATION
    +/- 12°
  • DYNAMIC FORCE
    10,519 lb at 17 gal/min / 14,244 lb at 20 gal/min
  • FREQUENCY
    2,448 vpm at 17 gal/min / 2,879 vpm at 20 gal/min
  • NUMBER OF PADS
    n/a
  • DRUM DIAMETER
    26 in

Padded Drum - 73"

  • WEIGHT
    2,189 lb
  • LENGTH
    37.9 in
  • WIDTH
    79 in
  • HEIGHT
    25.4 in
  • DRUM WIDTH
    73 in
  • COVERS RIGHT SIDE TIRES ON
    73-in wide loaders
  • DRUM OFFSET
    Centered
  • DRUM OSCILLATION
    +/- 7.5°
  • DYNAMIC FORCE
    9,905 lb at 20 gal/min / 14,263 lb at 24 gal/min
  • FREQUENCY
    2,401 vpm at 20 gal/min / 2,882 vpm at 24 gal/min
  • NUMBER OF PADS
    102
  • DRUM DIAMETER
    25.4 in

Smooth Drum - 73"

  • WEIGHT
    2,208 lb
  • LENGTH
    37.9 in
  • WIDTH
    79 in
  • HEIGHT
    26 in
  • DRUM WIDTH
    73 in
  • COVERS RIGHT SIDE TIRES ON
    73-in wide loaders
  • DRUM OFFSET
    Centered
  • DRUM OSCILLATION
    +/- 7.5°
  • DYNAMIC FORCE
    9,905 lb at 20 gal/min / 14,263 lb at 24 gal/min
  • FREQUENCY
    2,401 vpm at 20 gal/min / 2,882 vpm at 24 gal/min
  • NUMBER OF PADS
    n/a
  • DRUM DIAMETER
    26 in

Smooth Drum - 80"

  • WEIGHT
    2,320 lb
  • LENGTH
    37.9 in
  • WIDTH
    86 in
  • HEIGHT
    26 in
  • DRUM WIDTH
    80 in
  • COVERS RIGHT SIDE TIRES ON
    80-in wide loaders
  • DRUM OFFSET
    Centered
  • DRUM OSCILLATION
    +/- 7.5°
  • DYNAMIC FORCE
    9,905 lb at 20 gal/min / 14,263 lb at 24 gal/min
  • FREQUENCY
    2,401 vpm at 20 gal/min / 2,882 vpm at 24 gal/min
  • NUMBER OF PADS
    n/a
  • DRUM DIAMETER
    26 in
