Trenching Buckets – E145

Want to rent before you buy? SEE RENTALS

Request a Quote

Trenching Buckets – E145

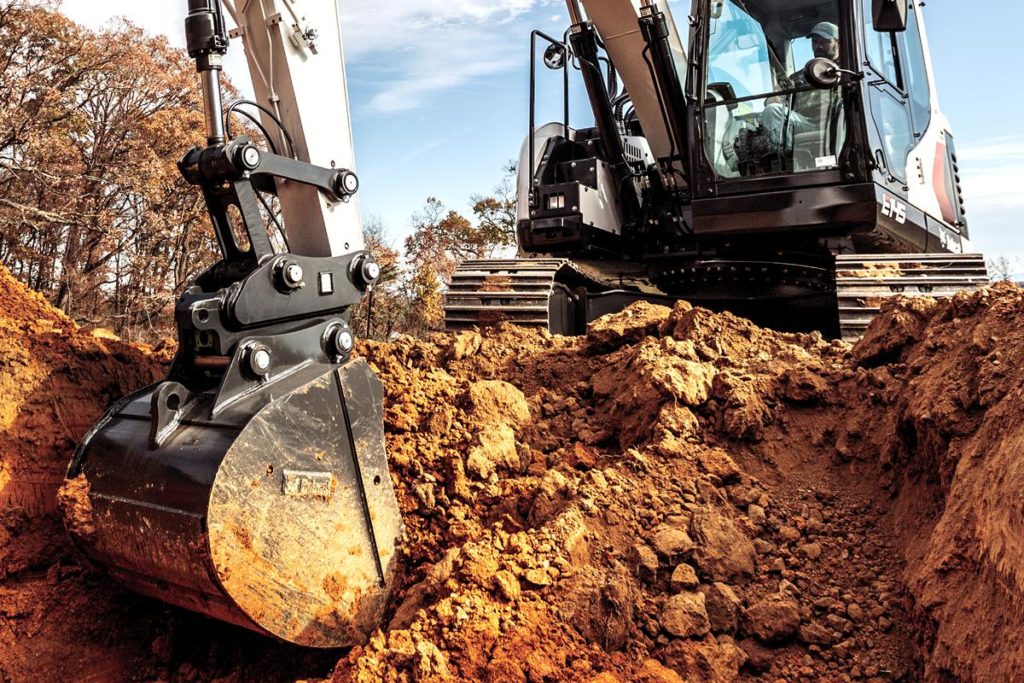

Big jobs require big equipment. When you need to dig deep into rough terrain, the E145 trenching bucket is your go-to attachment. Its diamond folded top section gives it peak structural strength and the overlapping plate reduces stresses in critical areas. The heel clearance is also increased by the unique duel radius shape, reducing drag and wear. Get maximum power from an already powerful machine.

Used For

  • General construction
  • Landscaping
  • Municipalities/utilities
  • Digging, loading, trenching and levelling

Features

  • Diamond folded top section for better structural strength.
  • Overlapping plates to reduce stress in critical areas.
  • Dual Radius shape increases heel clearance and reduces drag and wear.
  • Deep profile for high capacity.
  • Low tip radius for greater digging power.
  • igh quality, abrasion resistant material for a longer bucket life.

Trenching Buckets – E145

Trenching Bucket - E145 - 24"

  • WEIGHT
    822 lb
  • WIDTH
    24 in
  • DEFAULT TOOTH QTY
    3
  • ISO HEAPED CAPACITY
    10.9 ft³
  • ISO STRUCK CAPACITY
    9.2 ft³

Trenching Bucket - E145 - 36"

  • WEIGHT
    1,091 lb
  • WIDTH
    36 in
  • DEFAULT TOOTH QTY
    5
  • ISO HEAPED CAPACITY
    18.4 ft³
  • ISO STRUCK CAPACITY
    14.8 ft³

Trenching Bucket - E145 - 42"

  • WEIGHT
    1,197 lb
  • WIDTH
    42 in
  • DEFAULT TOOTH QTY
    5
  • ISO HEAPED CAPACITY
    22.2 ft³
  • ISO STRUCK CAPACITY
    17.7 ft³
