Trenching Buckets – Class 5

Want to rent before you buy? SEE RENTALS

Request a Quote

Trenching Buckets – Class 5

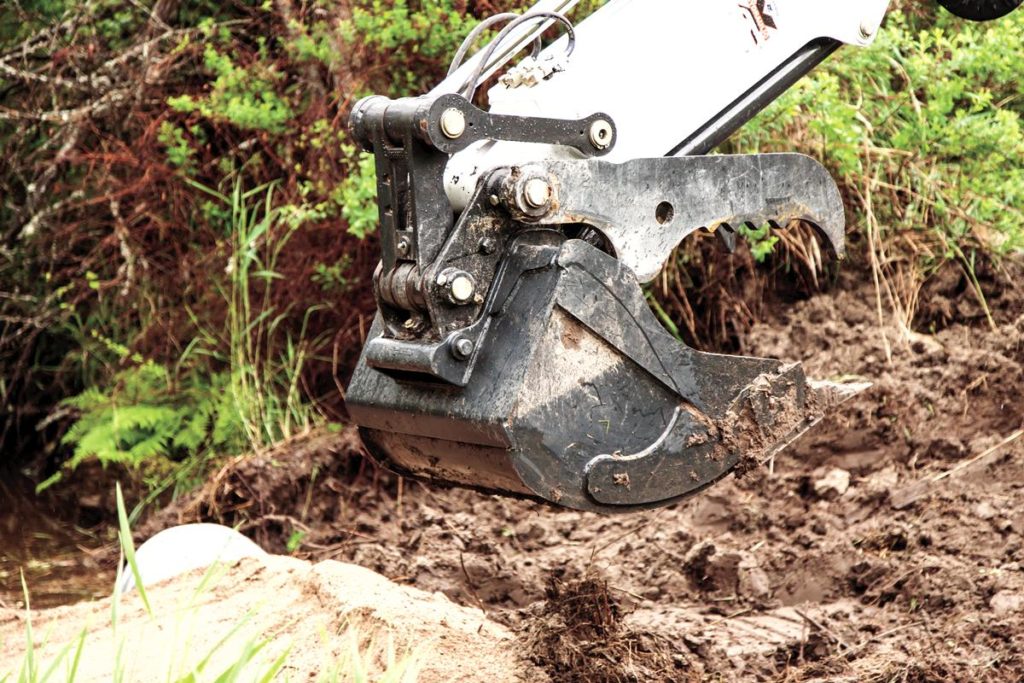

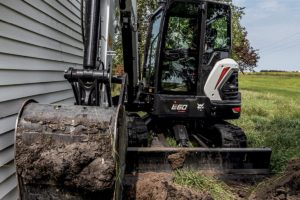

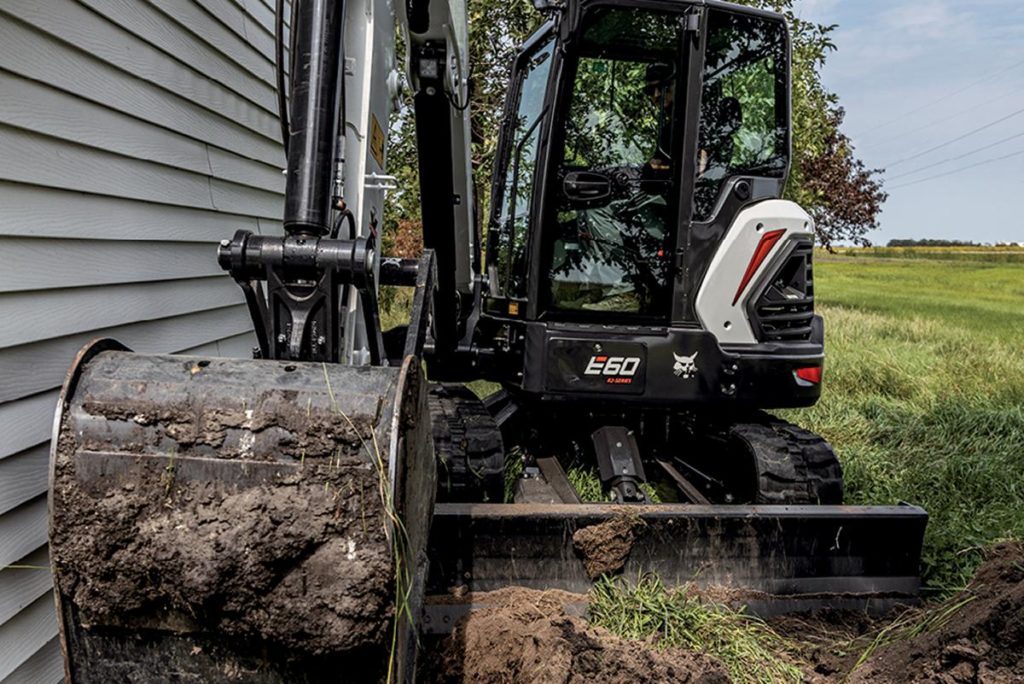

Dig through the toughest materials with the new trenching bucket excavator attachment. Ideal for dumping, prying and digging, this is the go-to attachment to get the most out of your machine and get your jobs done. Its reinforced frame provides even better strength and durability, while maximizing cycle times and breakout force. Compatible with the Bobcat E55, E60 & E63.

Used For

  • Digging trenches
  • Water, power and telecommunications jobs
  • Sewer and drainage projects

Options

  • X-Change mounting system
  • Shorter tip radius and deeper bowl
  • Replaceable cutting edge
  • Weld-on shanks
  • Cast side cutters
  • X-Change reinforcement plate

Trenching Buckets – Class 5

Class 5 - 18"

  • WEIGHT
    309 lb
  • LENGTH
    36.8 in
  • WIDTH
    18 in
  • HEIGHT
    26.1 in
  • ISO HEAPED CAPACITY
    3.4 ft³
  • ISO STRUCK CAPACITY
    3.5 ft³

Class 5 - 24"

  • WEIGHT
    368 lb
  • LENGTH
    36.8 in
  • WIDTH
    24 in
  • HEIGHT
    26.1 in
  • ISO HEAPED CAPACITY
    6.2 ft³
  • ISO STRUCK CAPACITY
    4.9 ft³

Class 5 - 30"

  • WEIGHT
    430 lb
  • LENGTH
    41.6 in
  • WIDTH
    30 in
  • HEIGHT
    26.1 in
  • ISO HEAPED CAPACITY
    8.2 ft³
  • ISO STRUCK CAPACITY
    6.2 ft³
