Trenching Buckets – Class 1

Want to rent before you buy? SEE RENTALS

Request a Quote

Trenching Buckets – Class 1

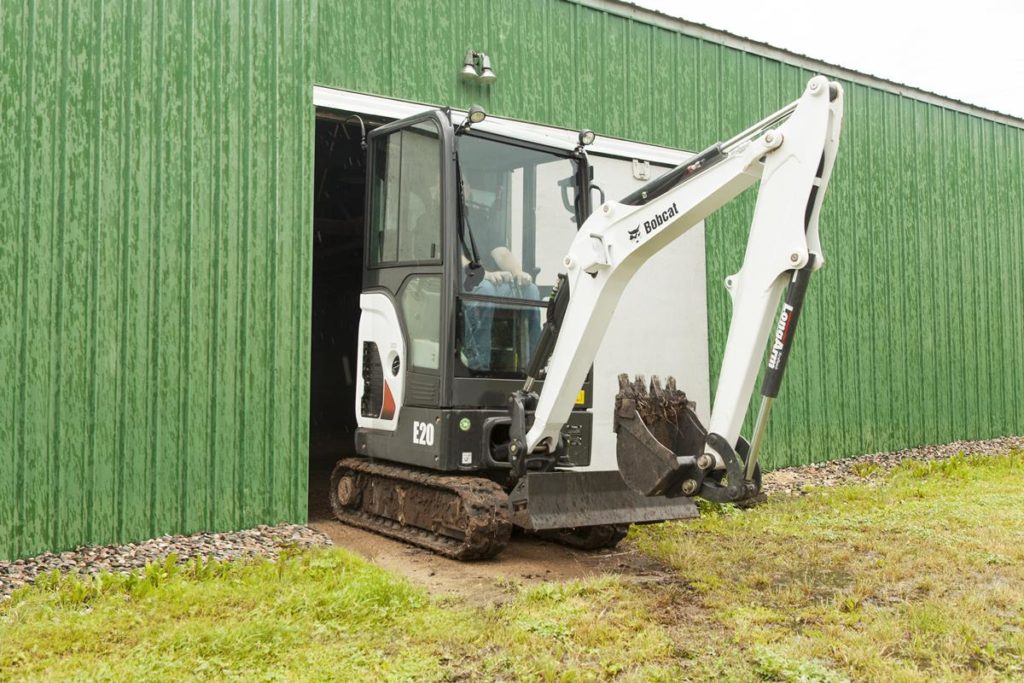

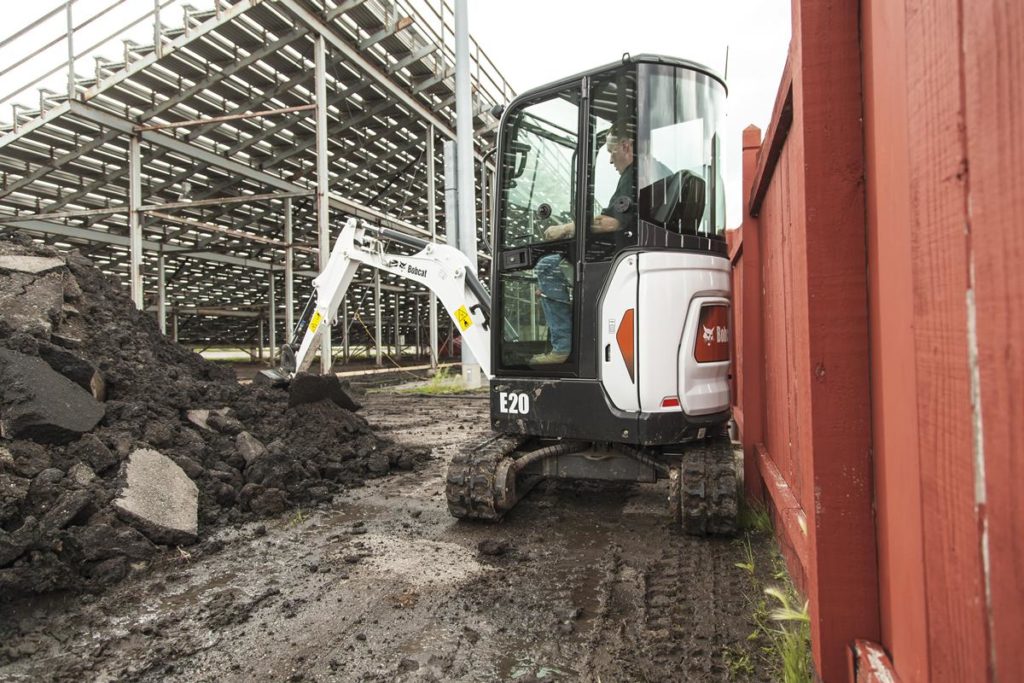

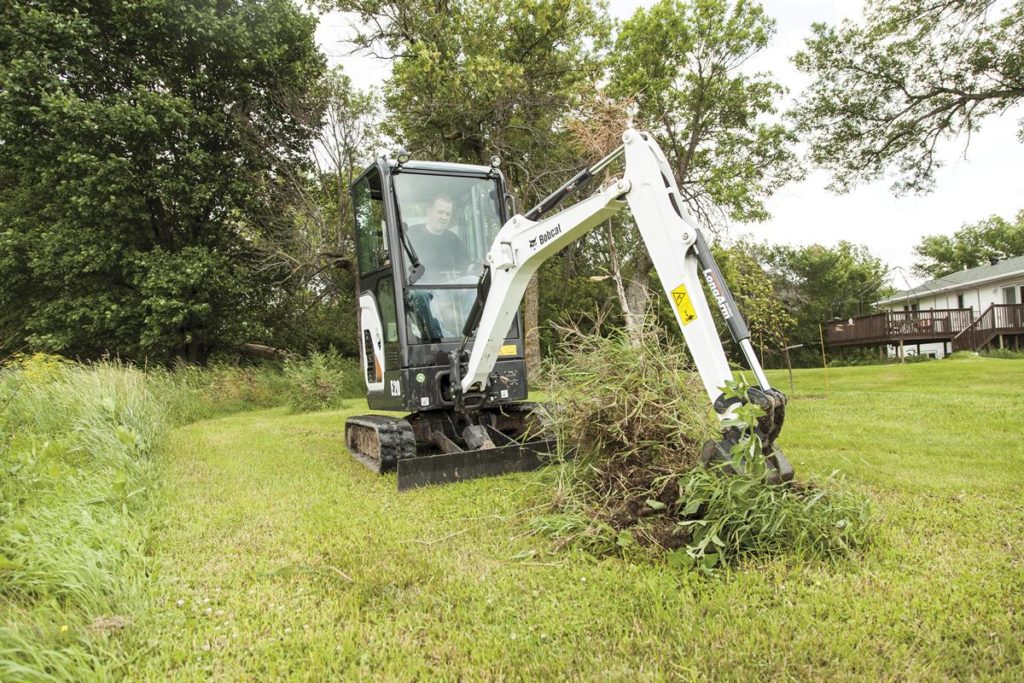

Get into tight areas to dig for hydro lines and waterways with the trenching bucket on your Bobcat E20 excavator. Redesigned for maximum durability and strength, this is your go-to attachment for everyday tasks like digging, dumping and loading.

Used For

  • Digging small trenches
  • Small water and power jobs
  • Telecommunications projects
  • Drainage and sewer jobs

Features

  • Pin-On Mounting System
  • Shorter Tip Radius And Deeper Bowl
  • Replaceable Cutting Edge
  • Weld-On Shanks
  • Cast Side Cutters

Trenching Buckets – Class 1

Class 1 - 9"

  • WEIGHT
    54 lb
  • LENGTH
    19.7 in
  • WIDTH
    9 in
  • HEIGHT
    17.4 in
  • ISO HEAPED CAPACITY
    0.6 ft³
  • ISO STRUCK CAPACITY
    0.4 ft³

Class 1 - 12"

  • WEIGHT
    68.1 lb
  • LENGTH
    19.7 in
  • WIDTH
    12 in
  • HEIGHT
    17.4 in
  • ISO HEAPED CAPACITY
    0.9 ft³
  • ISO STRUCK CAPACITY
    0.6 ft³

Class 1 - 16"

  • WEIGHT
    84.1 lb
  • LENGTH
    19.7 in
  • WIDTH
    16 in
  • HEIGHT
    17.4 in
  • ISO HEAPED CAPACITY
    1.3 ft³
  • ISO STRUCK CAPACITY
    0.8 ft³

Class 1 - 18"

  • WEIGHT
    90 lb
  • LENGTH
    19.7 in
  • WIDTH
    18 in
  • HEIGHT
    17.4 in
  • ISO HEAPED CAPACITY
    1.3 ft³
  • ISO STRUCK CAPACITY
    0.9 ft³

Class 1 - 20"

  • WEIGHT
    96 lb
  • LENGTH
    19.7 in
  • WIDTH
    20 in
  • HEIGHT
    17.4 in
  • ISO HEAPED CAPACITY
    1.6 ft³
  • ISO STRUCK CAPACITY
    1 ft³
