< Bobcat Attachments

Trencher

Want to rent before you buy? SEE RENTALS

Request a Quote
Trencher
Trencher – LT313
Trencher
Trencher – LT313

Trencher

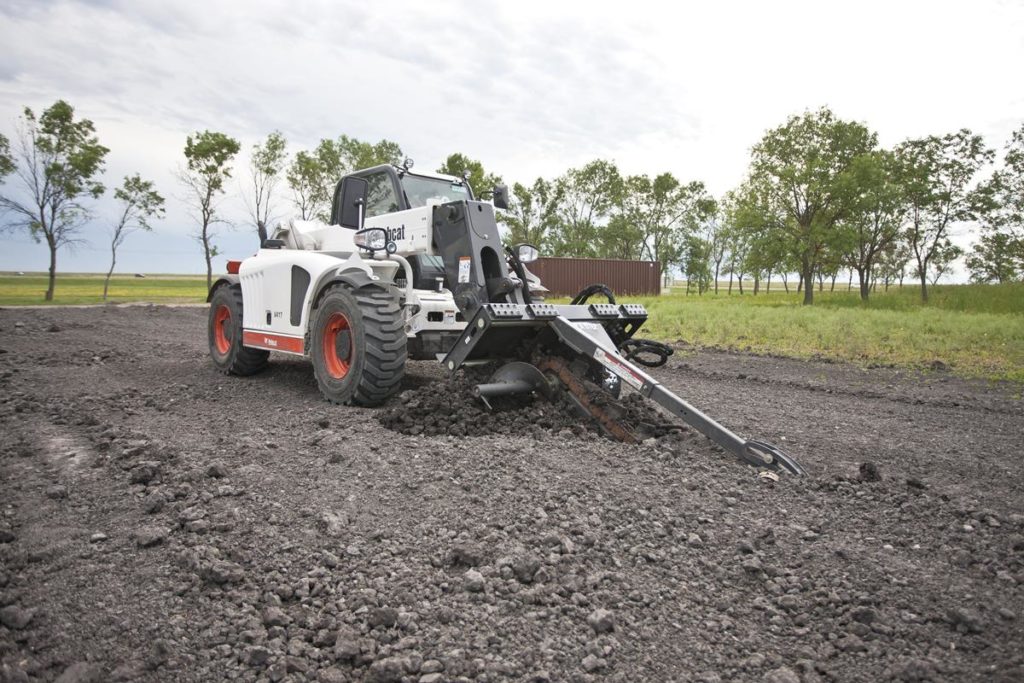

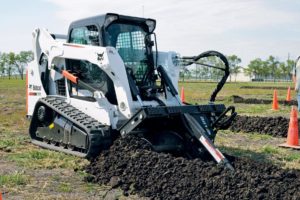

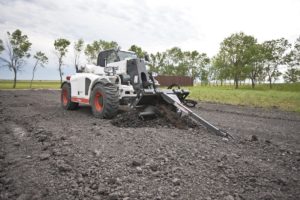

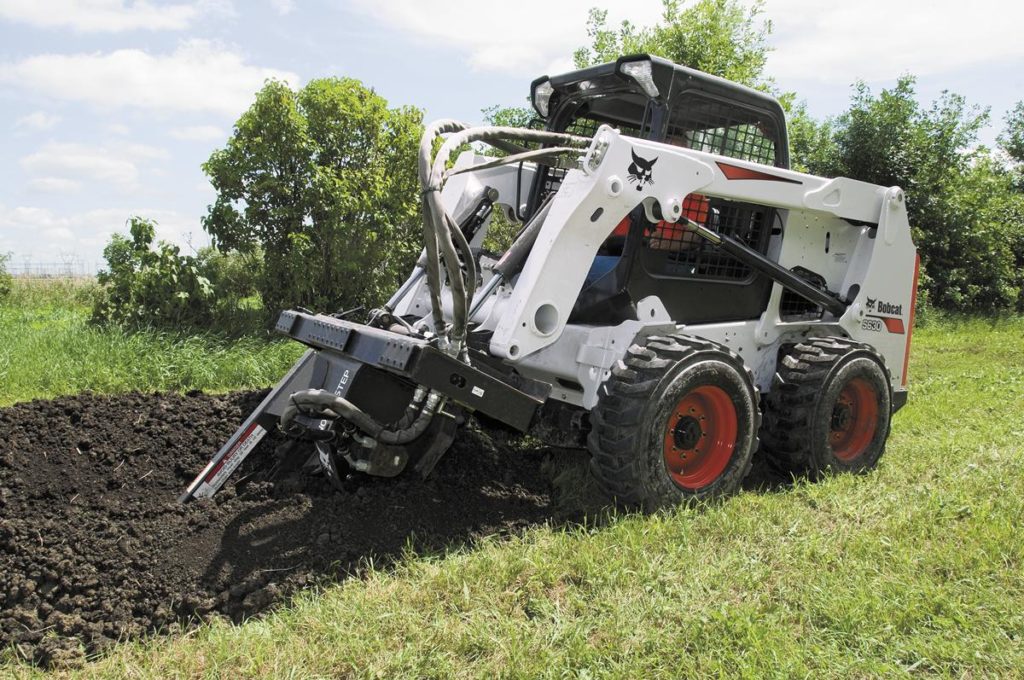

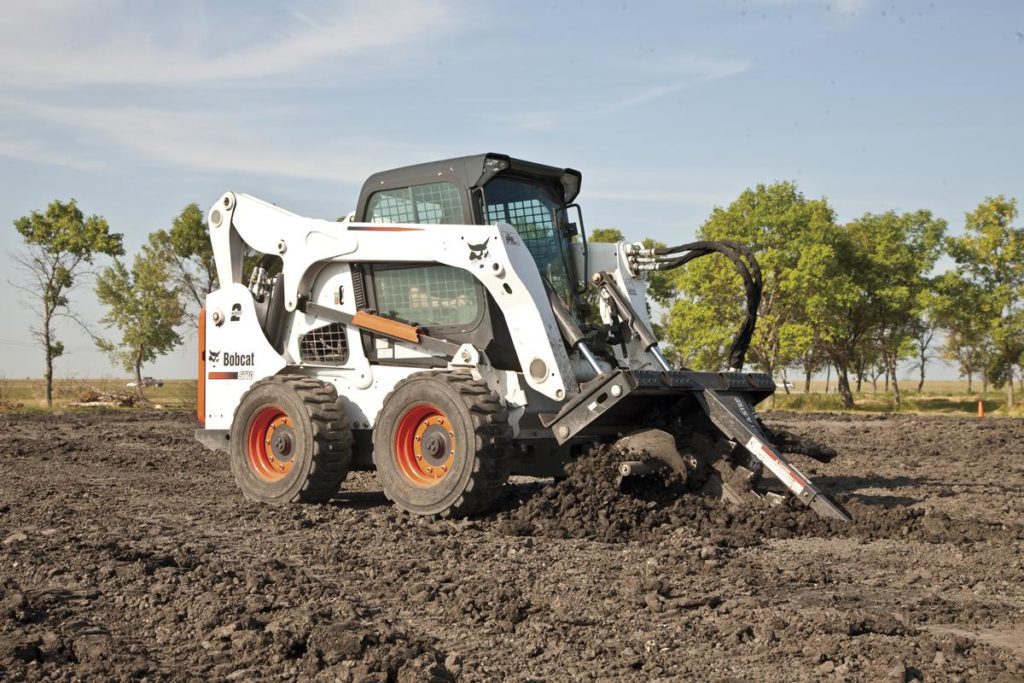

Cut into the ground and create a trench through all soil conditions with the trencher attachment. Designed with the power and strength to dig in even the toughest, rocky soil types, it can combine a number of teeth and chain options to build the perfect tool for your job. The side-shift feature is manual or hydraulic, depending on the model, and allows you to trench closely to buildings, fences and other objects. The trencher is a must-have attachment for maintenance crews, municipalities and landscaping contractors.



Used For

  • Digging trenches for utility and irrigation systems, power & water lines
  • Trenching close to buildings, walls, fences & other objects

Features

  • Auger: Moves material from the side of the trench, limiting the amount of spoil falling back into the trench.
  • Grease Cylinder Tensioning: Easily adjust your train to the proper tension.
  • Crumber: Helps remove soil from the trench to provide a clean trench bottom.
  • Reverse Rotation: Momentarily reverse the chain direction to minimize stalling.
  • Powerful Operation: Digs through even tough, rocky soil types to build a trench.
  • Side-Shift: Provides attachment flexibility when working next to objects.
  • Versatility: Several different teeth and chain configurations to choose from.

Trencher

    MX112 - Excavator

    • WEIGHT
      570 lb
    • LENGTH
      68.2 in
    • WIDTH
      30.6 in
    • AUGER DIAMETER
      12 in
    • FRAME WIDTH
      30.6 in
    • MAX OPERATING PRESSURE
      3,000 psi
    • SIDE SHIFT TRAVEL
      16.1 in
    • SIDE SHIFT TYPE
      n/a
    • CHAIN TENSIONING
      n/a
    • CHAIN OPTIONS
      n/a
    • FLOW RANGE
      n/a
    • AUGER CLEARANCE
      n/a
    • STANDARD BOOM LENGTH
      39.4 in
    • DIG DEPTH
      24 in
    • WIDTH AVAILABLE MIN
      4 in
    • WIDTH AVAILABLE MAX
      8 in

    LT112

    • WEIGHT
      613 lb
    • LENGTH
      60.7 in
    • WIDTH
      36 in
    • AUGER DIAMETER
      12 in
    • FRAME WIDTH
      36 in
    • MAX OPERATING PRESSURE
      3,000 psi
    • SIDE SHIFT TRAVEL
      16.1 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      9 - 15 gal/min
    • AUGER CLEARANCE
      13.8 - 15.8 in
    • STANDARD BOOM LENGTH
      39.4 in
    • DIG DEPTH
      24 in
    • WIDTH AVAILABLE MIN
      4 in
    • WIDTH AVAILABLE MAX
      8 in

    LT113

    • WEIGHT
      638 lb
    • LENGTH
      74 in
    • WIDTH
      36 in
    • AUGER DIAMETER
      12 in
    • FRAME WIDTH
      36 in
    • MAX OPERATING PRESSURE
      3,000 psi
    • SIDE SHIFT TRAVEL
      16.1 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      9 - 15 gal/min
    • AUGER CLEARANCE
      13.8 - 15.8 in
    • STANDARD BOOM LENGTH
      52.5 in
    • DIG DEPTH
      36 in
    • WIDTH AVAILABLE MIN
      4 in
    • WIDTH AVAILABLE MAX
      8 in

    LT213

    • WEIGHT
      725 lb
    • LENGTH
      74 in
    • WIDTH
      56 in
    • AUGER DIAMETER
      12 in
    • FRAME WIDTH
      56 in
    • MAX OPERATING PRESSURE
      3,300 psi
    • SIDE SHIFT TRAVEL
      23.1 in
    • CHAIN TENSIONING
      Grease Cylinder
    • SIDE SHIFT TYPE
      Manual
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      11 - 18 gal/min
    • AUGER CLEARANCE
      13.8 - 15.8 in
    • STANDARD BOOM LENGTH
      52.5 in
    • DIG DEPTH
      36 in
    • WIDTH AVAILABLE MIN
      4 in
    • WIDTH AVAILABLE MAX
      8 in

    LT313 - 3 ft

    • WEIGHT
      955 lb
    • LENGTH
      79.5 in
    • WIDTH
      56 in
    • AUGER DIAMETER
      13 in
    • FRAME WIDTH
      56 in
    • MAX OPERATING PRESSURE
      3,300 psi
    • SIDE SHIFT TRAVEL
      23.1 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      15 - 24 gal/min
    • AUGER CLEARANCE
      24 - 27 in
    • STANDARD BOOM LENGTH
      55.5 in
    • DIG DEPTH
      36 in
    • WIDTH AVAILABLE MIN
      6 in
    • WIDTH AVAILABLE MAX
      12 in

    LT313 - 4 ft

    • WEIGHT
      980 lb
    • LENGTH
      89.5 in
    • WIDTH
      56 in
    • AUGER DIAMETER
      13 in
    • FRAME WIDTH
      56 in
    • MAX OPERATING PRESSURE
      3,300 psi
    • SIDE SHIFT TRAVEL
      23.1 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      15 - 24 gal/min
    • AUGER CLEARANCE
      24 - 27 in
    • STANDARD BOOM LENGTH
      65.5 in
    • DIG DEPTH
      48 in
    • WIDTH AVAILABLE MIN
      6 in
    • WIDTH AVAILABLE MAX
      12 in

    LT414 - 4ft

    • WEIGHT
      1,181 lb
    • LENGTH
      90 in
    • WIDTH
      56.2 in
    • AUGER DIAMETER
      14.2 in
    • FRAME WIDTH
      56.2 in
    • MAX OPERATING PRESSURE
      3,300 psi
    • SIDE SHIFT TRAVEL
      21.8 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      26 - 40 gal/min
    • AUGER CLEARANCE
      23.4 - 26.4 in
    • STANDARD BOOM LENGTH
      65 in
    • DIG DEPTH
      50 in
    • WIDTH AVAILABLE MIN
      6 in
    • WIDTH AVAILABLE MAX
      12 in

    LT414 - 5ft

    • WEIGHT
      1,218 lb
    • LENGTH
      104 in
    • WIDTH
      56.3 in
    • AUGER DIAMETER
      14.2 in
    • FRAME WIDTH
      56.2 in
    • MAX OPERATING PRESSURE
      3,300 psi
    • SIDE SHIFT TRAVEL
      21.8 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      26 - 40 gal/min
    • AUGER CLEARANCE
      23.4 - 26.4 in
    • STANDARD BOOM LENGTH
      79 in
    • DIG DEPTH
      62 in
    • WIDTH AVAILABLE MIN
      6 in
    • WIDTH AVAILABLE MAX
      8 in

    LT405

    • WEIGHT
      1,520 lb
    • LENGTH
      105.3 in
    • WIDTH
      63 in
    • AUGER DIAMETER
      12 in
    • FRAME WIDTH
      65 in
    • MAX OPERATING PRESSURE
      3,300 psi
    • SIDE SHIFT TRAVEL
      26 in
    • SIDE SHIFT TYPE
      Manual
    • CHAIN TENSIONING
      Grease Cylinder
    • CHAIN OPTIONS
      Multiple
    • FLOW RANGE
      26 - 40 gal/min
    • AUGER CLEARANCE
      19 in
    • STANDARD BOOM LENGTH
      63 in
    • DIG DEPTH
      48 in
    • WIDTH AVAILABLE MIN
      6 in
    • WIDTH AVAILABLE MAX
      12 in
