< Bobcat Attachments

Trench Compactor

Want to rent before you buy? SEE RENTALS

Request a Quote

Trench Compactor

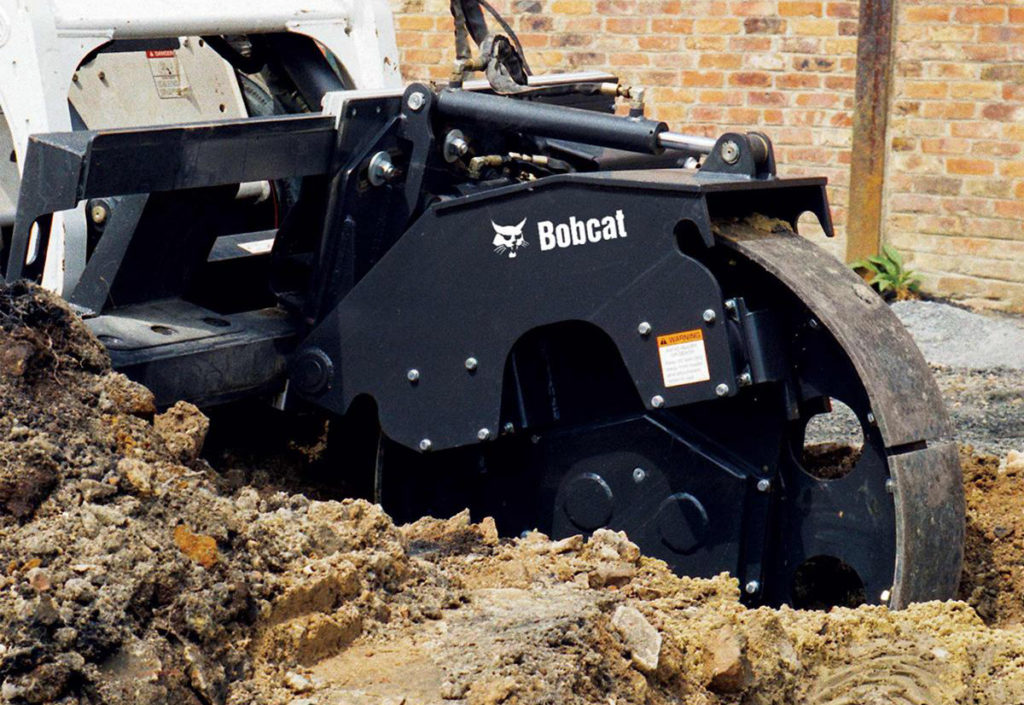

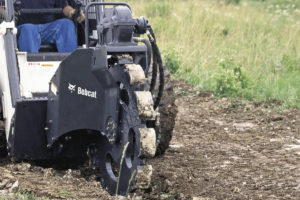

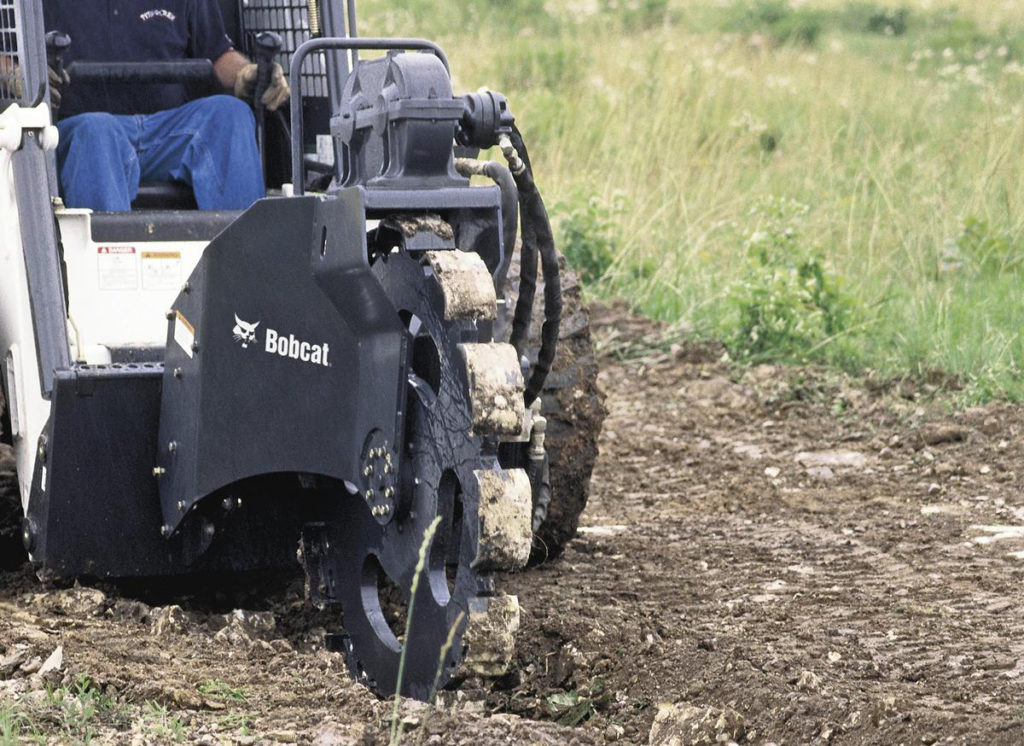

When the digging is done, get the job finished with the Bobcat trench compactor attachment. Its large, wheel-type compactor compresses soil down in the trench, using a vibratory shaker box for optimum compaction in any soil type. It works most efficiently in trenches 4 to 12-in wide, and up to 4 ft deep but for trenches that are more than 2 ft deep, backfill and compact the soil in two or three layers to achieve desired compaction.



Used For

  • Compacting soil in the trench after lying cable, power & water lines

Features

  • Replaceable Pads: For easy attachment maintenance while on the jobsite.
  • Vibratory Shaker Box: A double-gear, oil-bath style box with a built-in flow regulator to ensure proper RPM.

Trench Compactor

Specs

  • WEIGHT
    1,400 lb
  • LENGTH
    57 in
  • WIDTH
    48 in
  • HEIGHT
    59 in
  • WORKING DEPTH
    27 in
  • WORKING WIDTH - STD PAD
    4.5 - 6.75 in
  • WORKING WIDTH - WIDE PAD
    8.0 - 10.25 in
  • WHEEL DIAMETER
    46.5 in
  • DYNAMIC FORCE
    7,000 lb
  • VIBRATIONS PER MINUTE
    2,200 AT 18 gal/min
