< Bobcat Attachments

Soil Conditioner

Want to rent before you buy? SEE RENTALS

Request a Quote

Soil Conditioner

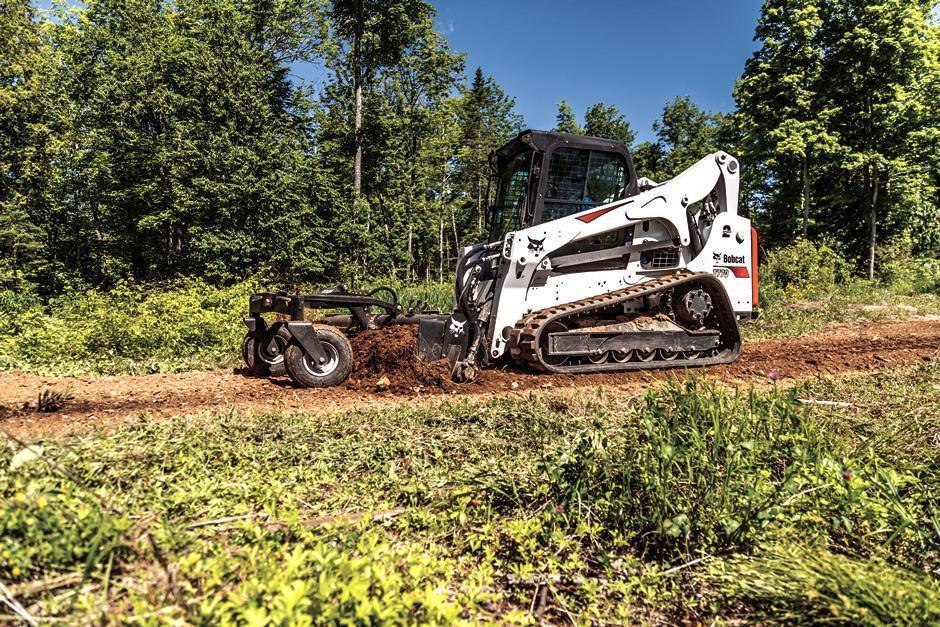

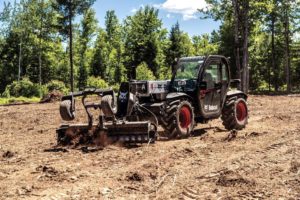

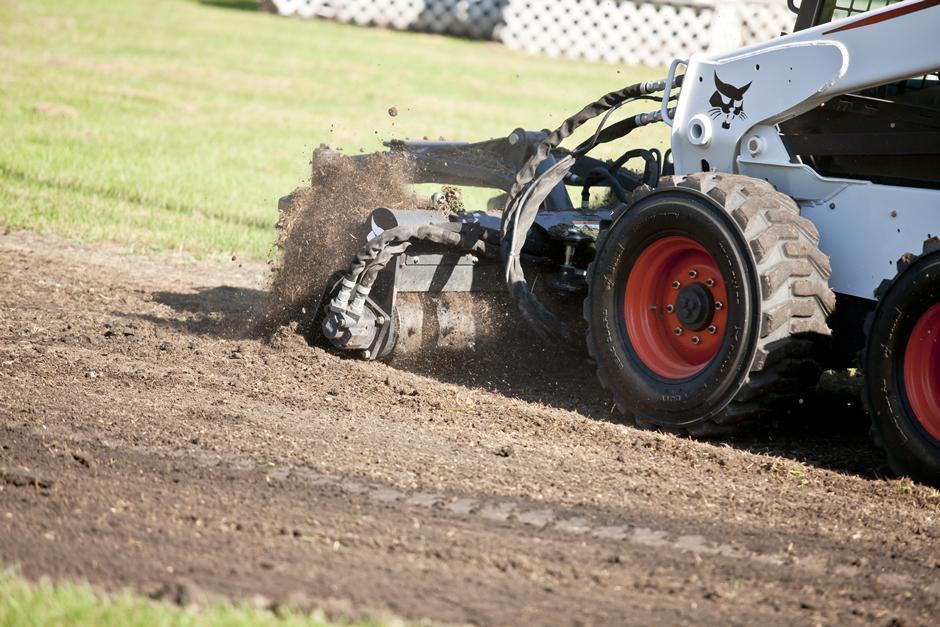

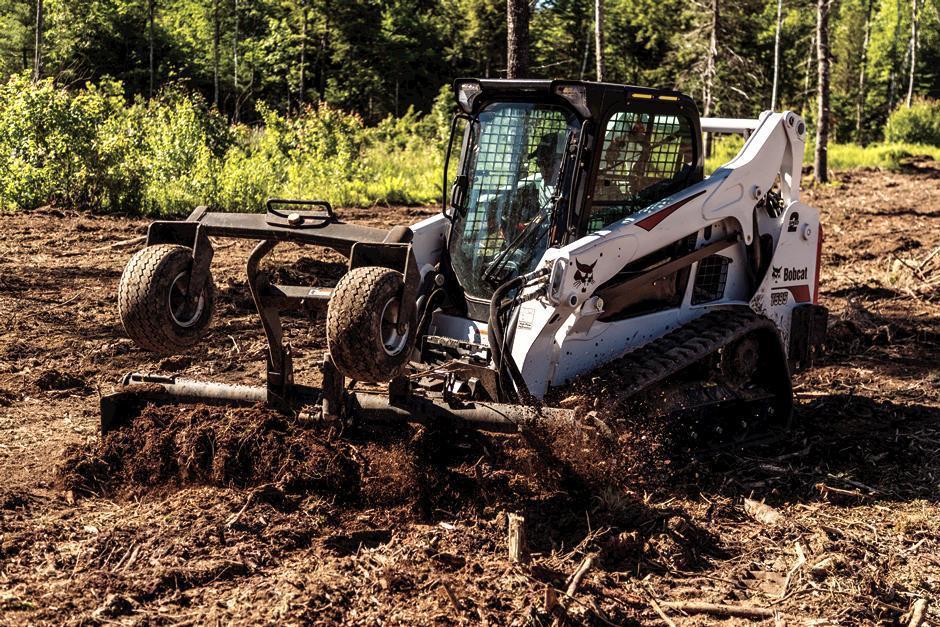

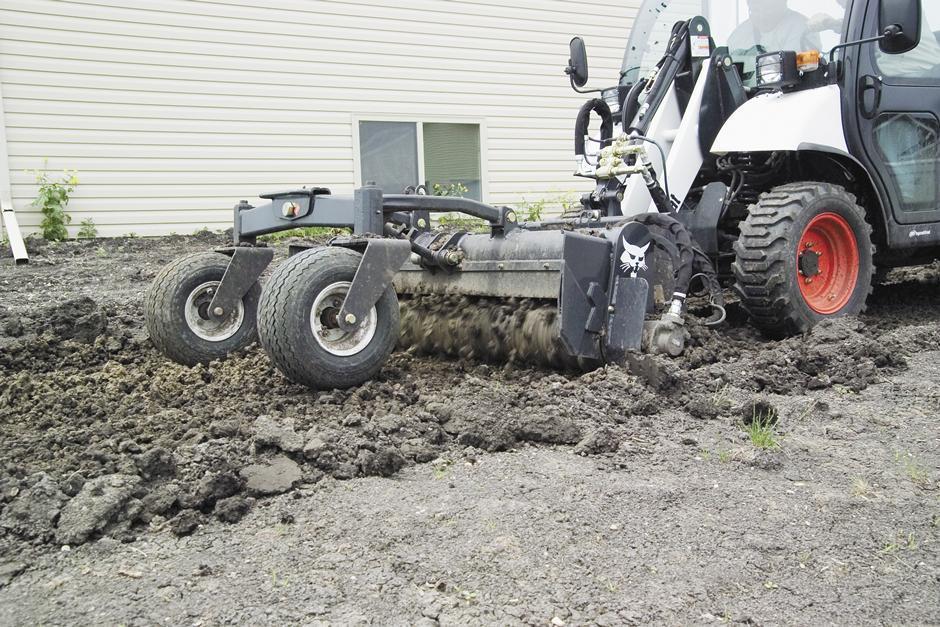

Lay a good foundation and prepare the land with the Bobcat soil conditioner attachment. The rotating drum is equipped with carbide-tipped teeth, which rip through clumps and penetrate the soil while levelling and filling in using fewer passes. To level and grade a surface, simply lock the drum for a box blade effect or place the drum in the float position to prepare the soil while following the contours of the terrain. The soil conditioner is a cost effective and versatile attachment that no landscaping crew should be without.



Used For

  • Levelling ground, clearing debris & moving material
  • Tilling soil, tearing out sod & smoothing ruts
  • Grading topsoil, cutting swales & preparing ground for seeding and sodding

Features

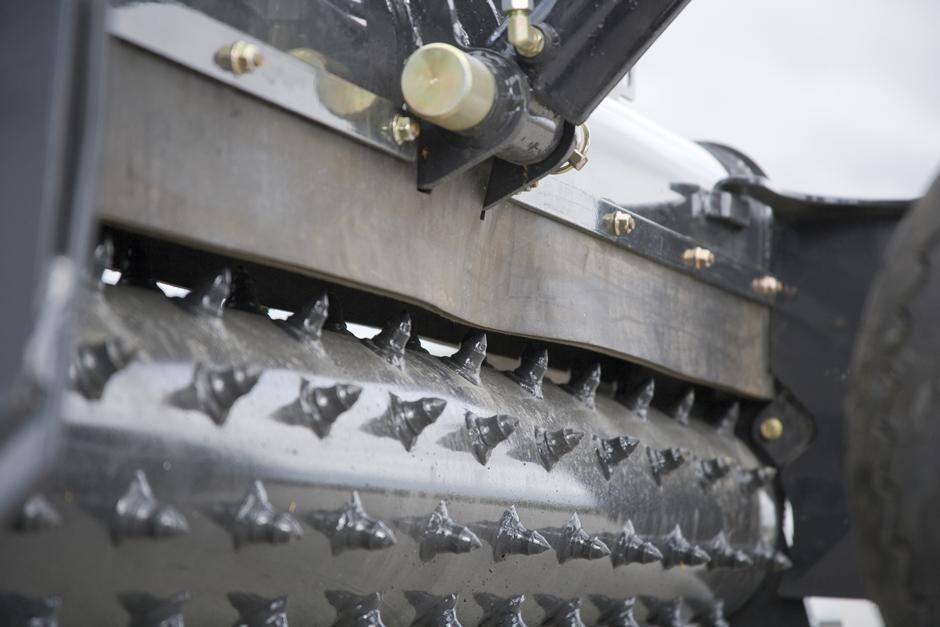

  • Carbide-Tipped Teeth: Easily rip through hardpan and pulverize clumps for maximum ground penetration.
  • Direct Drive Hydraulic Motor: Eliminates the need for sprockets and chains.
  • Drum Positioning: Lock the drum for a box blade effect, or allow the drum to float for preparing soil without altering land features.
  • Foam-Filled Tires: Provides better uptime protection.
  • Integrated controls: Control the angle and depth from inside the cab.
  • Front Bolster: Provides enough room between the wheels and drum to let material in front of the drum, delivering better grade control.
  • Oscillating Bolster: Keeps the drum parallel to the ground.
  • Increased Drum Torque: For moving more dirt and grading more efficiently.
  • Removable End Plates: Used to achieve a box blade effect.
  • Rubber Flap: Keeps large material from going over the drum.

Soil Conditioner

Manual - 48"

  • WEIGHT
    636 lb
  • LENGTH
    57.9 in
  • WIDTH
    60.6 in
  • HEIGHT
    28.9 in
  • NUMBER OF TEETH
    81
  • DEGREE OF ANGLE
    25° right or left
  • WIDTH (FULLY ANGLED)
    46 in
  • FLOW RANGE MIN
    10 gal/min
  • FLOW RANGE MAX
    18 gal/min

High Flow - 72"

  • WEIGHT
    1,110 lb
  • LENGTH
    67.9 in
  • WIDTH
    86.2 in
  • HEIGHT
    30 in
  • NUMBER OF TEETH
    121
  • DEGREE OF ANGLE
    25° right or left
  • WIDTH (FULLY ANGLED)
    65 in
  • FLOW RANGE MIN
    25 gal/min
  • FLOW RANGE MAX
    37 gal/min

Hydraulic - 72"

  • WEIGHT
    1,110 lb
  • LENGTH
    67.9 in
  • WIDTH
    86.2 in
  • HEIGHT
    30 in
  • NUMBER OF TEETH
    121
  • DEGREE OF ANGLE
    25° right or left
  • WIDTH (FULLY ANGLED)
    65 in
  • FLOW RANGE MIN
    13 gal/min
  • FLOW RANGE MAX
    37 gal/min

Manual - 72"

  • WEIGHT
    1,110 lb
  • LENGTH
    67.9 in
  • WIDTH
    86.2 in
  • HEIGHT
    30 in
  • NUMBER OF TEETH
    121
  • DEGREE OF ANGLE
    25° right or left
  • WIDTH (FULLY ANGLED)
    65 in
  • FLOW RANGE MIN
    13 gal/min
  • FLOW RANGE MAX
    37 gal/min

High Flow - 84"

  • WEIGHT
    1,268 lb
  • LENGTH
    67.9 in
  • WIDTH
    98.2 in
  • HEIGHT
    29.7 in
  • NUMBER OF TEETH
    141
  • DEGREE OF ANGLE
    25° right or left
  • WIDTH (FULLY ANGLED)
    76 in
  • FLOW RANGE MIN
    18 gal/min
  • FLOW RANGE MAX
    37 gal/min

Hydraulic - 84"

  • WEIGHT
    1,268 lb
  • LENGTH
    67.9 in
  • WIDTH
    98.2 in
  • HEIGHT
    29.7 in
  • NUMBER OF TEETH
    141
  • DEGREE OF ANGLE
    25° right or left
  • WIDTH (FULLY ANGLED)
    76 in
  • FLOW RANGE MIN
    18 gal/min
  • FLOW RANGE MAX
    37 gal/min
