< Bobcat Attachments

Tiller

Want to rent before you buy? SEE RENTALS

Request a Quote

Tiller

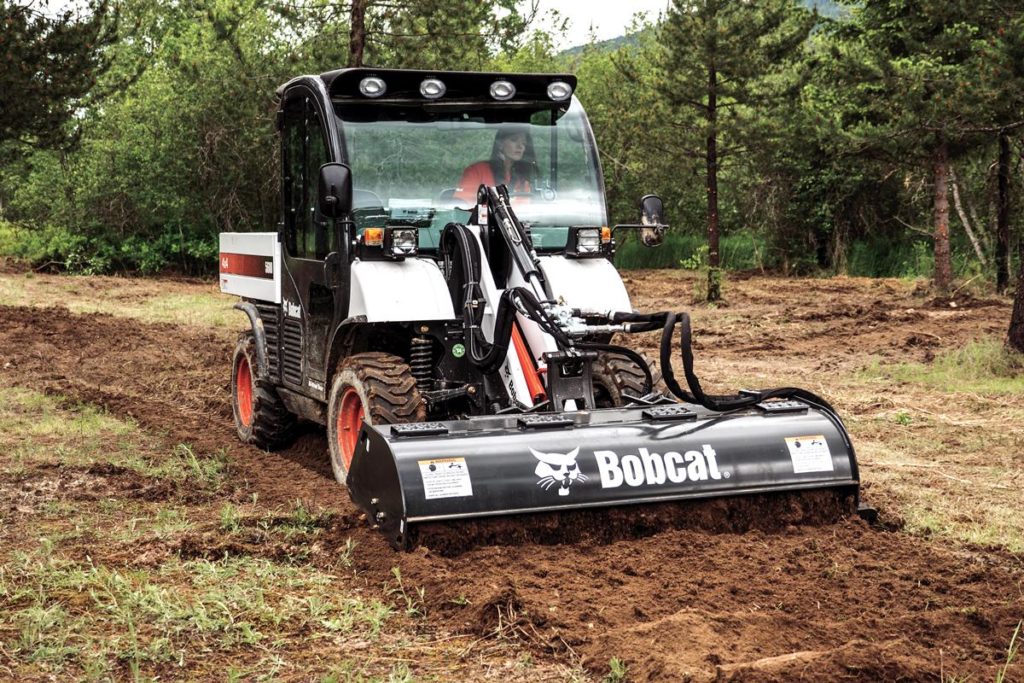

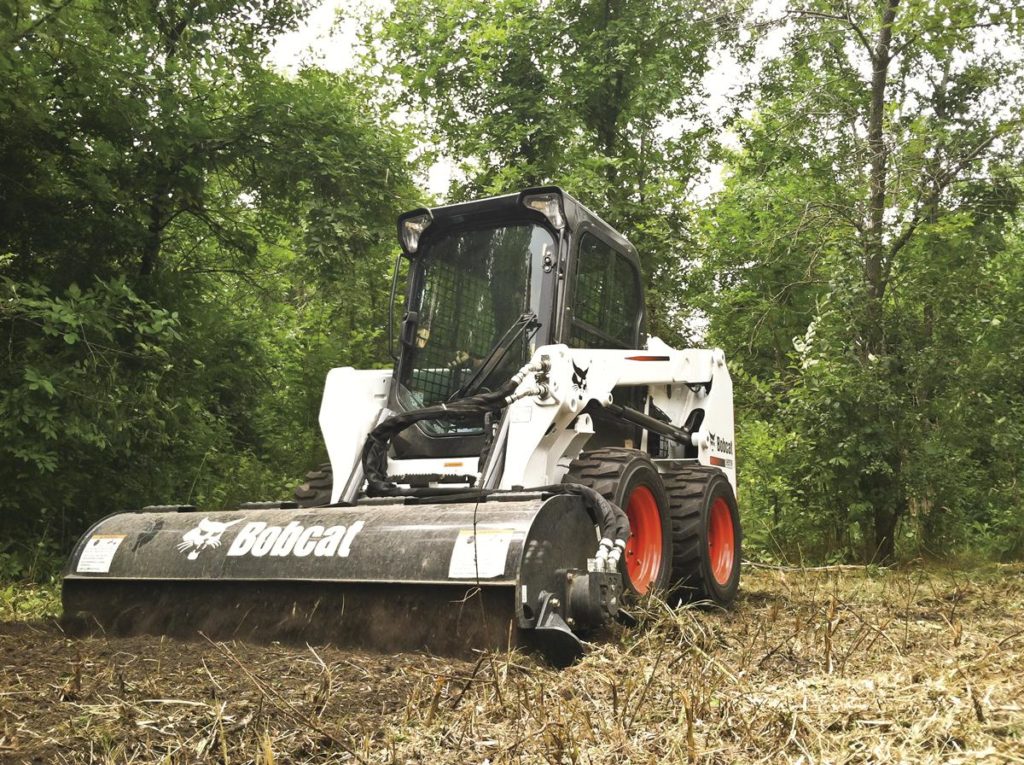

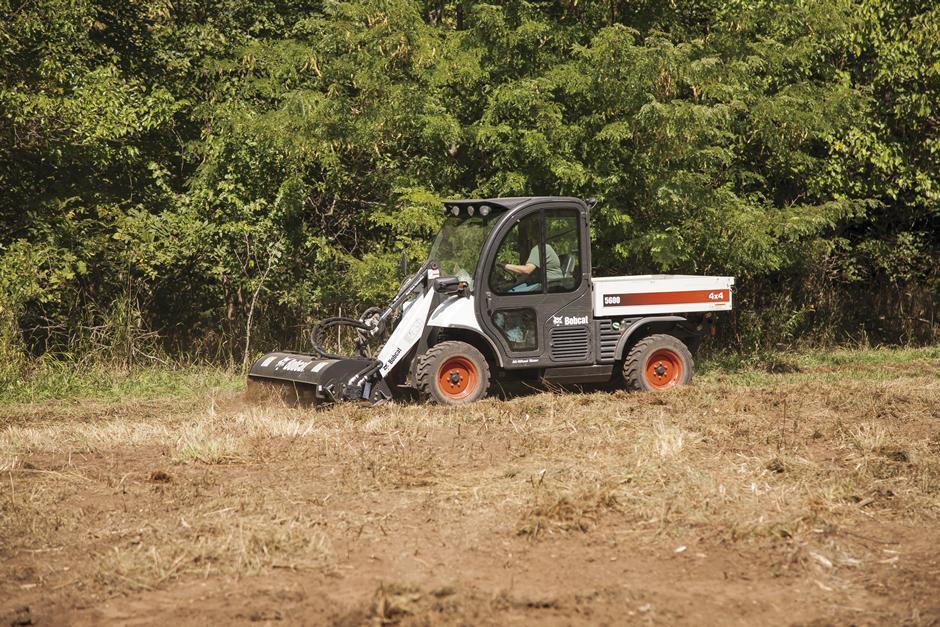

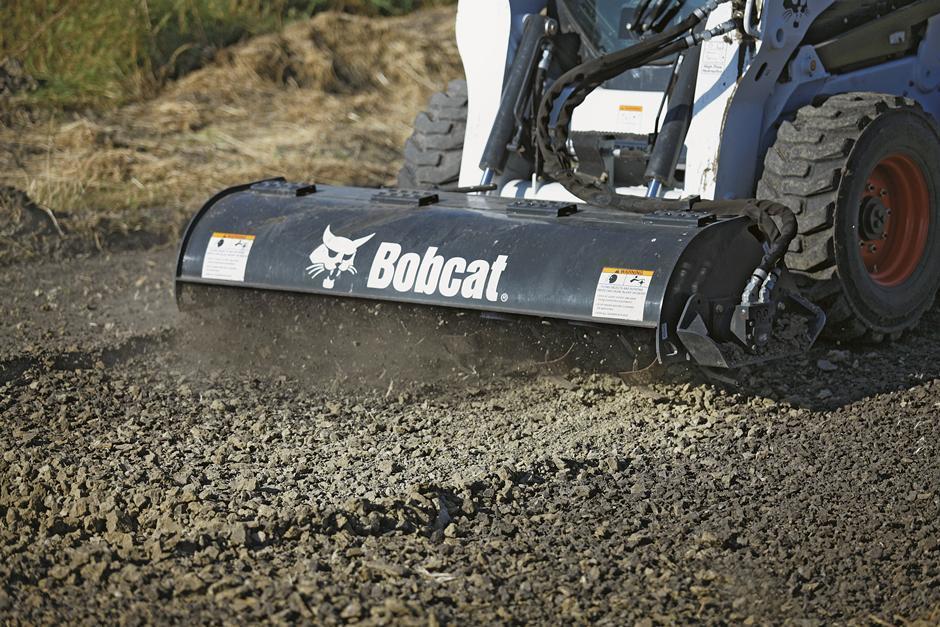

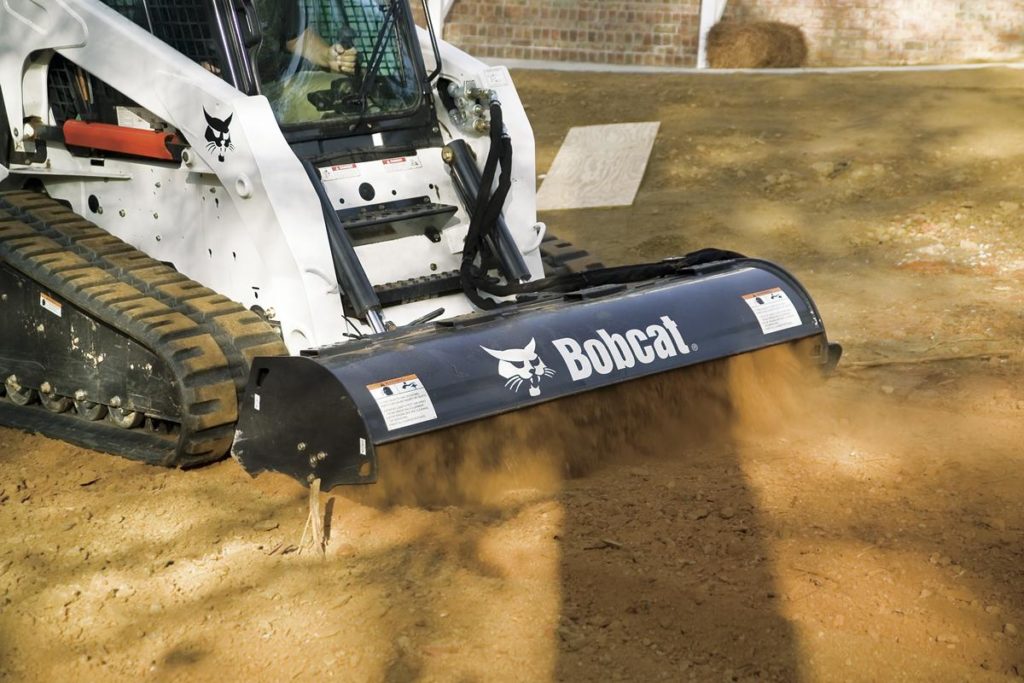

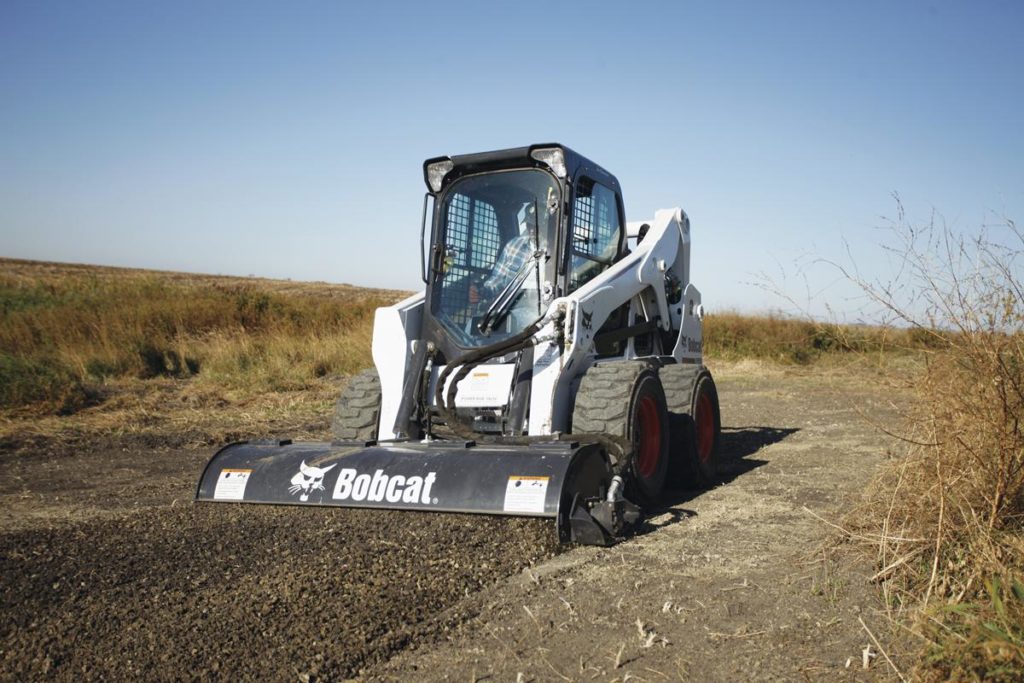

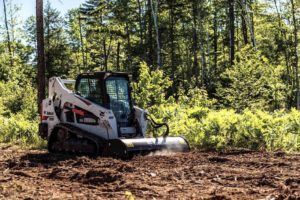

Tear through clumps and hardened materials with the replaceable, double-edge tines of the tiller attachment. The bi-directional operation allows for top-cutting and under-cutting in either direction, easily tilling and mixing the soil with compost materials. Built for easy and efficient soil preparation, the tiller attachment quickly turns a backyard plot into a soil bed for gardening. The offset mounting feature even allows for tilling next to sidewalks and buildings, maximizing the versatility of operation.



Used For

  • Mixing compost, fertilizer, manure & mulch into the soil
  • Preparing land for planting
  • Removing weeds between rows
  • Tearing through clumps and loosening soil
  • Tilling next to sidewalks, curbs & buildings

Features

  • Adjustable Skid Shoes: Deliver depth control for more precise tilling operation.
  • Bi-Directional Rotation: Allows for top-cutting and under-cutting when operating in either direction.

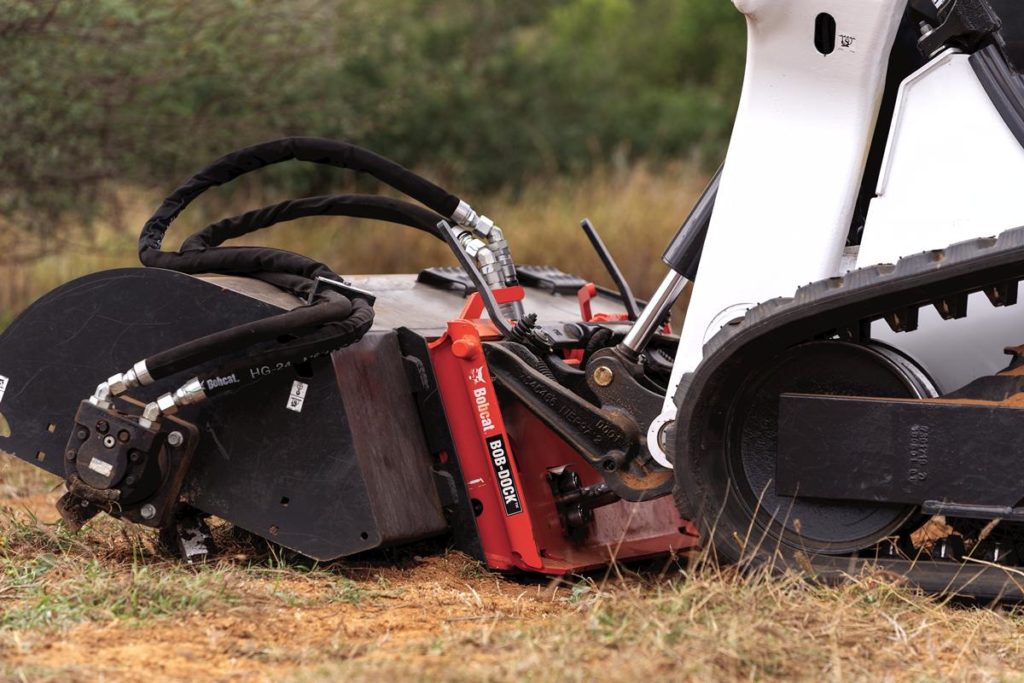

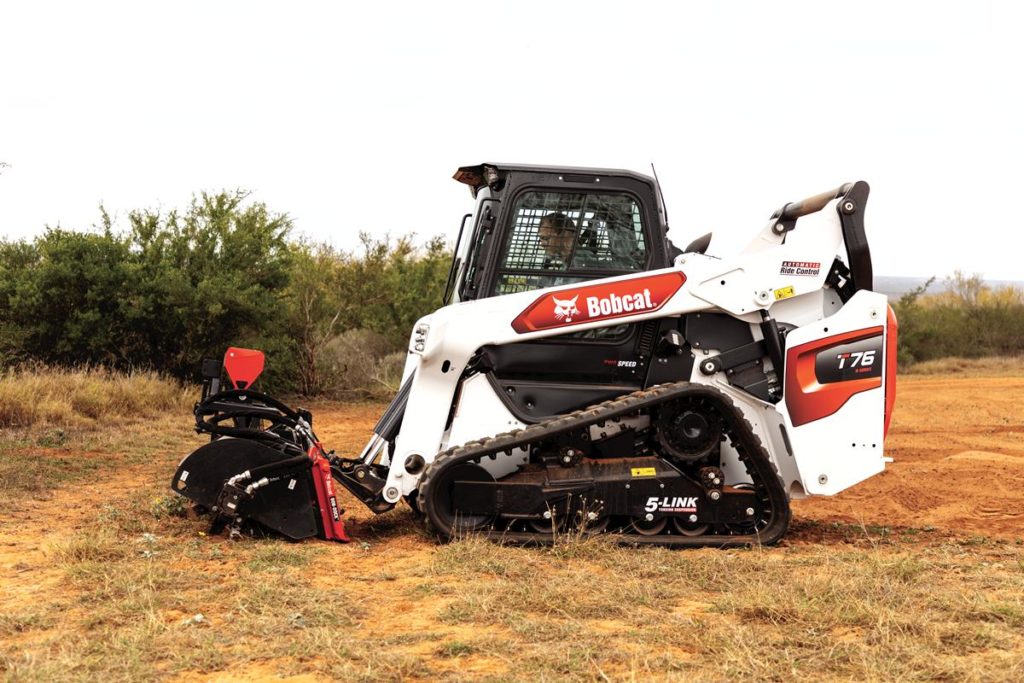

  • Bob-Tach Mounting System: Gives a quick, tight-fit attachment hook-up.
  • Direct Drive Hydraulic Motor: Delivers necessary operating power while reducing overall maintenance costs.
  • Offset Mounting: Permits tilling next to sidewalks, curbs, and buildings.
  • Replaceable Tines: Hardened for maximum soil penetration.

Tiller

Rotary Tiller - 40"

  • WEIGHT
    475 lb
  • LENGTH
    32.9 in
  • WIDTH
    47.9 in
  • HEIGHT
    24.2 in
  • WORKING DEPTH
    6 in Max
  • DRIVE
    Direct Drive
  • TINE ROTATION
    Bi-rotational
  • WORKING WIDTH
    40.6 in
  • TRAVEL DIRECTION
    Forward/Reverse
  • TINES
    24
  • FLOW RANGE MIN
    9 gal/min
  • FLOW RANGE MAX
    18 gal/min

Rotary Tiller - 62"

  • WEIGHT
    660 lb
  • LENGTH
    32.9 in
  • WIDTH
    70.8 in
  • HEIGHT
    24.2 in
  • WORKING DEPTH
    6 in Max
  • DRIVE
    Direct Drive
  • TINE ROTATION
    Bi-rotational
  • WORKING WIDTH
    62.1 in
  • TRAVEL DIRECTION
    Foward/Reverse
  • TINES
    36
  • FLOW RANGE MIN
    17 gal/min
  • FLOW RANGE MAX
    40 gal/min

Rotary Tiller - 76"

  • WEIGHT
    749 lb
  • LENGTH
    32.9 in
  • WIDTH
    84.4 in
  • HEIGHT
    24.2 in
  • WORKING DEPTH
    6 in Max
  • DRIVE
    Direct Drive
  • TINE ROTATION
    Bi-rotational
  • WORKING WIDTH
    75.4 in
  • TRAVEL DIRECTION
    Foward/Reverse
  • TINES
    44
  • FLOW RANGE MIN
    17 gal/min
  • FLOW RANGE MAX
    40 gal/min
