Planers

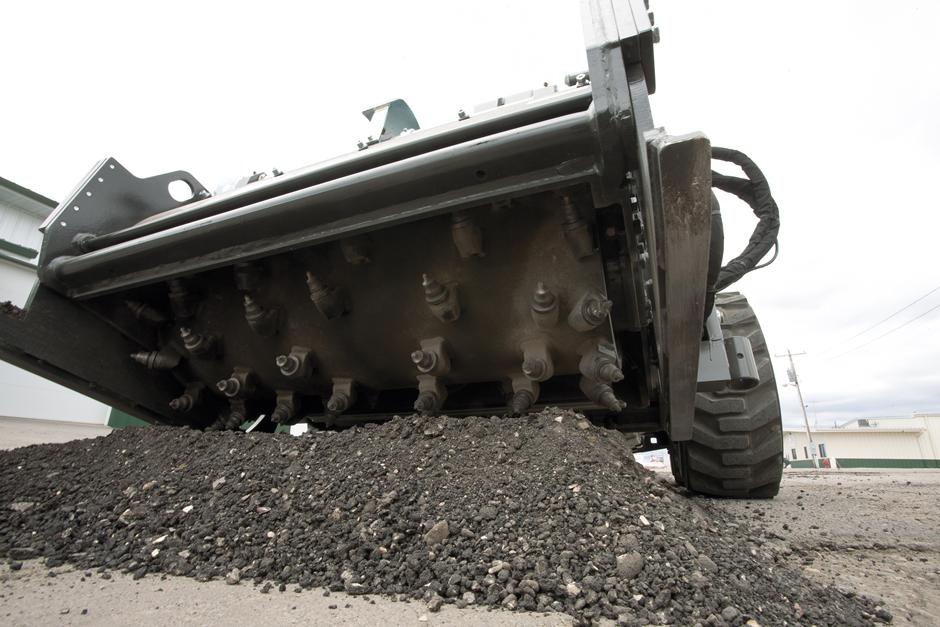

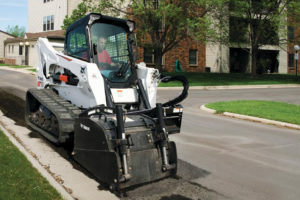

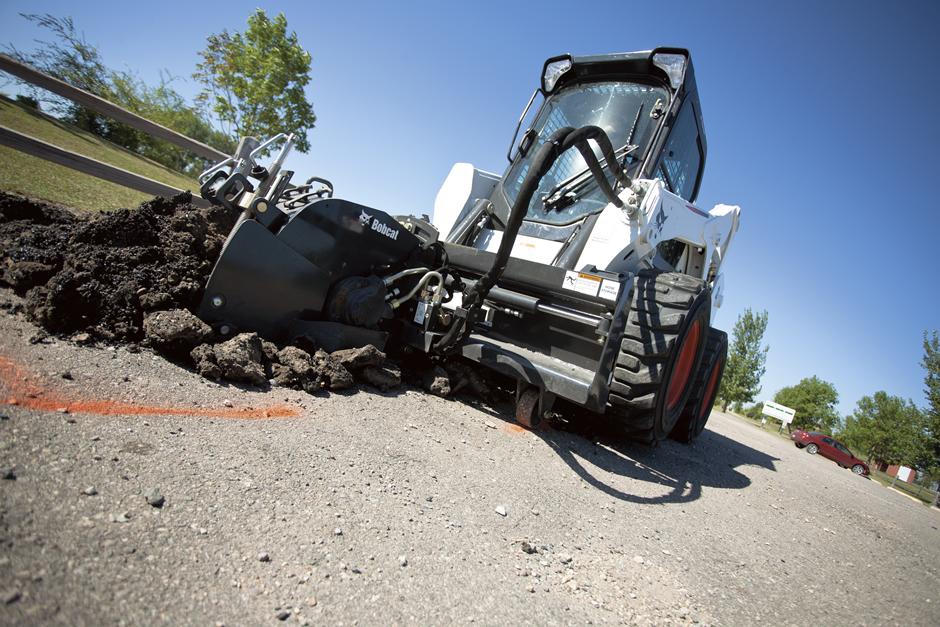

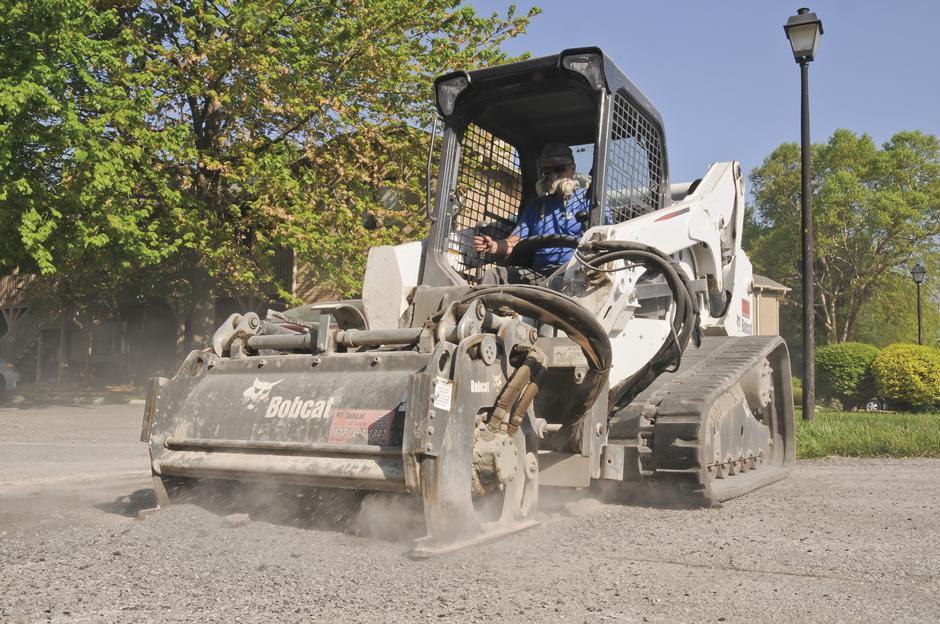

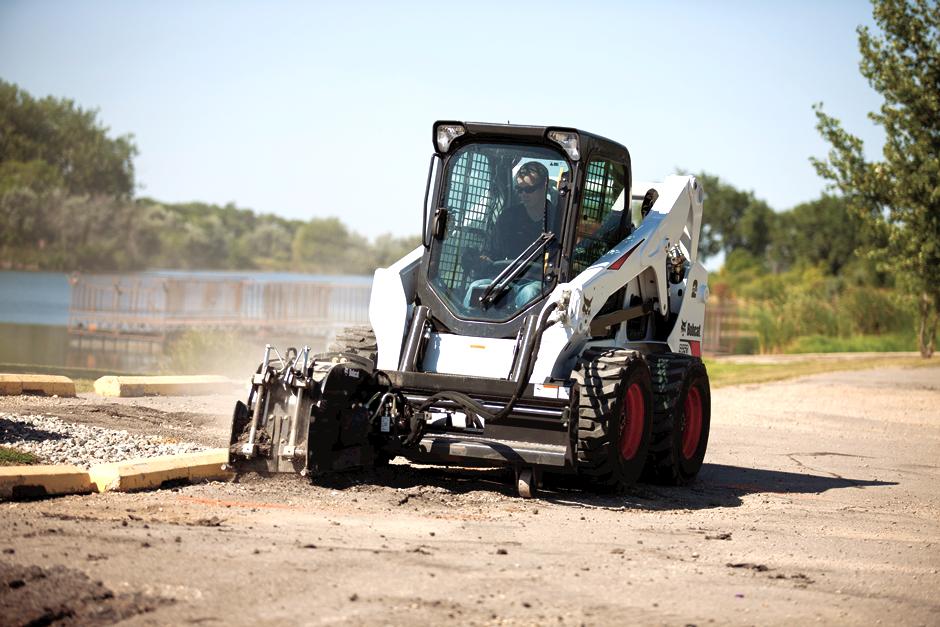

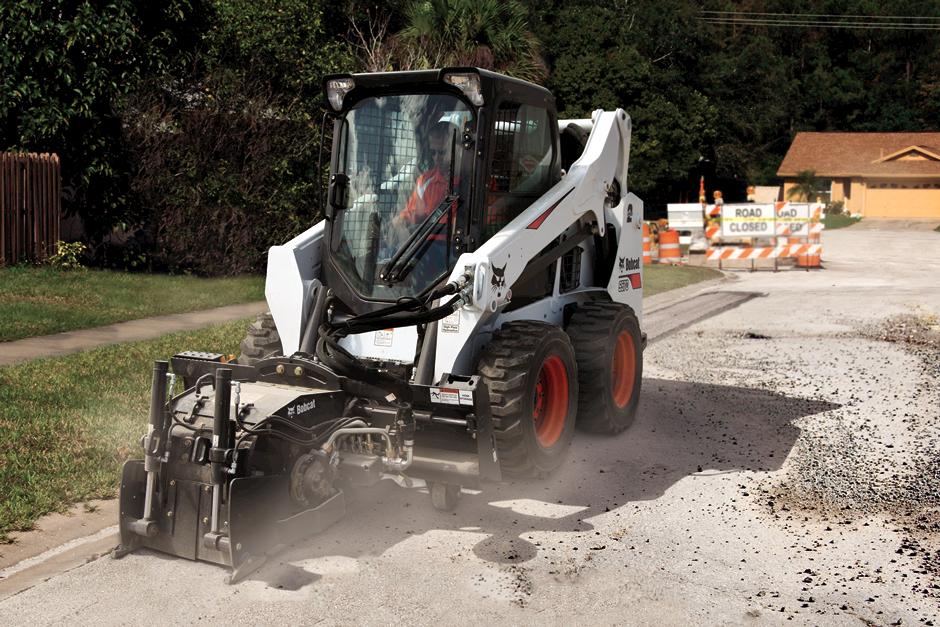

Cut and mill concrete and asphalt with the controlled removal process of the planer attachment. The milling process involves low angle, high velocity blows in a controlled pattern that uniformly chips pavement. Depth, width, and slope control are easily set and maintained by the operator. Milled material can be immediately recycled, nicely finishing any asphalt and repair jobs. The Bobcat® planer attachment is much less expensive to maintain and more maneuverable than dedicated planers. The planer attachment is versatile and durable, delivering high torque for maximum cutting and milling performance. Choose from four different planer models listed below. Standard flow planer provides excellent performance on standard flow machines allowing a lower initial investment for those that only need to use a planer periodically. High flow planers utilize the increased hydraulic horsepower available for high production needs.



Used For

  • Mating uneven pavement surfaces
  • Cleaning up around larger miller machines
  • Cutting drainage in a parking lot
  • Milling around manholes
  • Tapering edges on a roadway

Features

  • Oscillation: Housing oscillates up to +/- 15 degrees
  • Replaceable Ski Wear Pads: Make maintenance easier and more affordable.
  • Steel Wheels: Provide support and reduce tire bounce for a smoother cut.
  • Side Cutting Teeth: Decreases drum binding
  • Free Floating Oscillation: Cutting wheel oscillates side to side
  • Hydraulic Side Shift: Allows milling outside the width of the carrier
  • Removable End Plate: Allows the planer to mill flush against wall with no further clean-up work required.
  • Visible Left Ski: Keeps the planer centered and provides easier control.
  • Top Access Panel: Allows for easy inspection and saves maintenance time.
  • Priority Valve: Diverts oil to depth function without causing momentary loss of power to planer drum. (18-24" Models)
  • Independently Adjustable Skis: Fingertip controls from the operator’s seat provide depth and angle control. (18-24" Models)
  • Diverter Valve: Allows the operator to switch between hydraulic side-shift and hydraulic oscillation functions. (40-Inch High Flow Model)
  • Front Access Panel: To inspect and replace cutting bits. (40" High Flow Model)
  • Two Direct-Drive Motors: Increased torque force, providing an increase in productivity. (40" High Flow Model)

Planers

Standard Flow - 14"

  • WEIGHT
    1107 lb
  • LENGTH
    47.5 in
  • WIDTH
    66.4 in
  • HEIGHT
    29.3 in
  • CUTTING DEPTH MAX
    6 in
  • CUTTING DEPTH MIN
    0 in
  • DRUM WIDTH MAX
    14 in
  • NUMBER OF BITS
    n/a
  • SIDESHIFT
    29.8 in
  • MAX CUTTING ANGLE
    15°
  • PLANING DIST NEXT TO CURB
    75.4 in
  • DRUM DIAMETER
    17.8 in
  • FLOW RANGE MIN
    15 gal/min
  • FLOW RANGE MAX
    27 gal/min

High Flow - 18"

  • WIDTH
    1191 lb
  • LENGTH
    47.5 in
  • WIDTH
    66.4 in
  • HEIGHT
    35.2 in
  • CUTTING DEPTH MAX
    6 in
  • CUTTING DEPTH MIN
    0 in
  • DRUM WIDTH MAX
    18 in
  • NUMBER OF BITS
    n/a
  • SIDESHIFT
    29.8 in
  • MAX CUTTING ANGLE
    15°
  • PLANING DIST NEXT TO CURB
    75.4 in
  • DRUM DIAMETER
    17.8 in
  • FLOW RANGE MIN
    22 gal/min
  • FLOW RANGE MAX
    40 gal/min

High Flow - 24"

  • WEIGHT
    1254 lb
  • LENGTH
    47.5 in
  • WIDTH
    66.4 in
  • HEIGHT
    35.2 in
  • CUTTING DEPTH MAX
    6 in
  • CUTTING DEPTH MIN
    0 in
  • DRUM WIDTH MAX
    24 in
  • NUMBER OF BITS
    n/a
  • SIDESHIFT
    29.8 in
  • MAX CUTTING ANGLE
    15°
  • PLANING DIST NEXT TO CURB
    80.4 in
  • DRUM DIAMETER
    17.8 in
  • FLOW RANGE MIN
    22 gal/min
  • FLOW RANGE MAX
    40 gal/min

High Flow - 40"

  • WEIGHT
    2300 lb
  • LENGTH
    44 in
  • WIDTH
    68 in
  • HEIGHT
    32 in
  • CUTTING DEPTH MAX
    5 in
  • CUTTING DEPTH MIN
    0 in
  • DRUM WIDTH MAX
    40 in
  • NUMBER OF BITS
    78
  • SIDESHIFT
    25.6 in
  • MAX CUTTING ANGLE
  • PLANING DIST NEXT TO CURB
    2.6 in
  • DRUM DIAMETER
    14.5 in
  • FLOW RANGE MIN
    25 gal/min
  • FLOW RANGE MAX
    59 gal/min
