< Bobcat Attachments

Packer Wheel

Want to rent before you buy? SEE RENTALS

Request a Quote

Packer Wheel

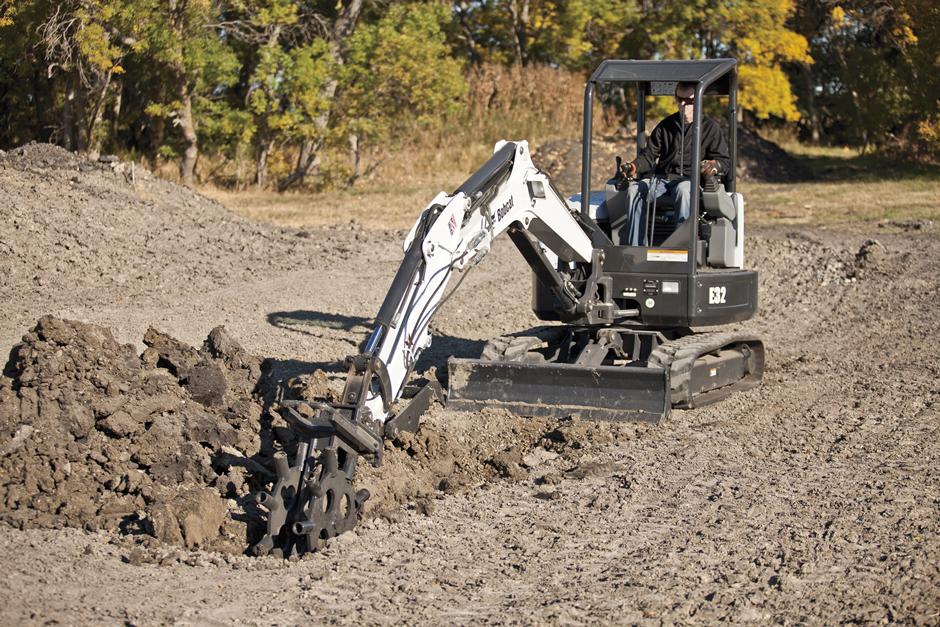

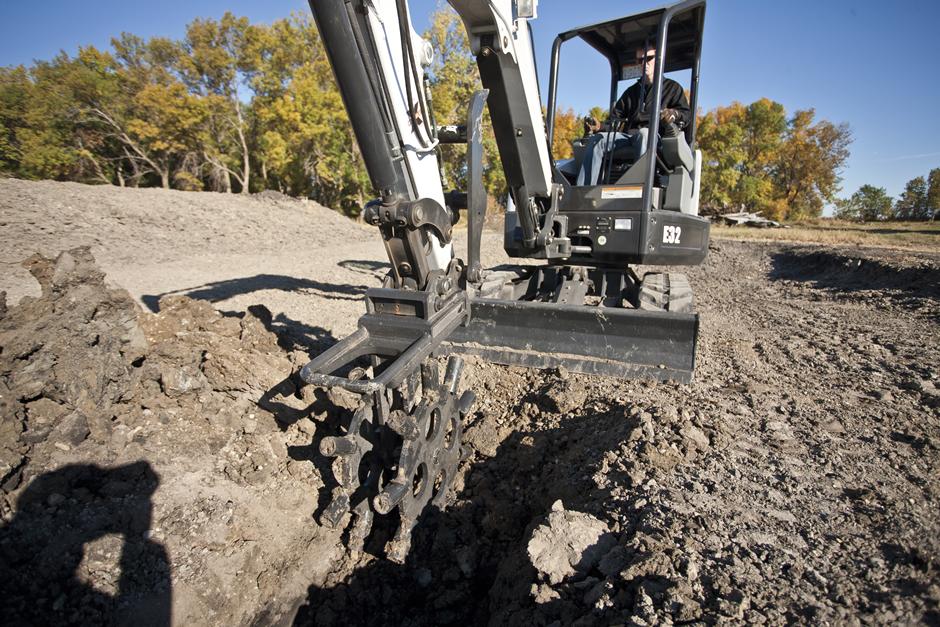

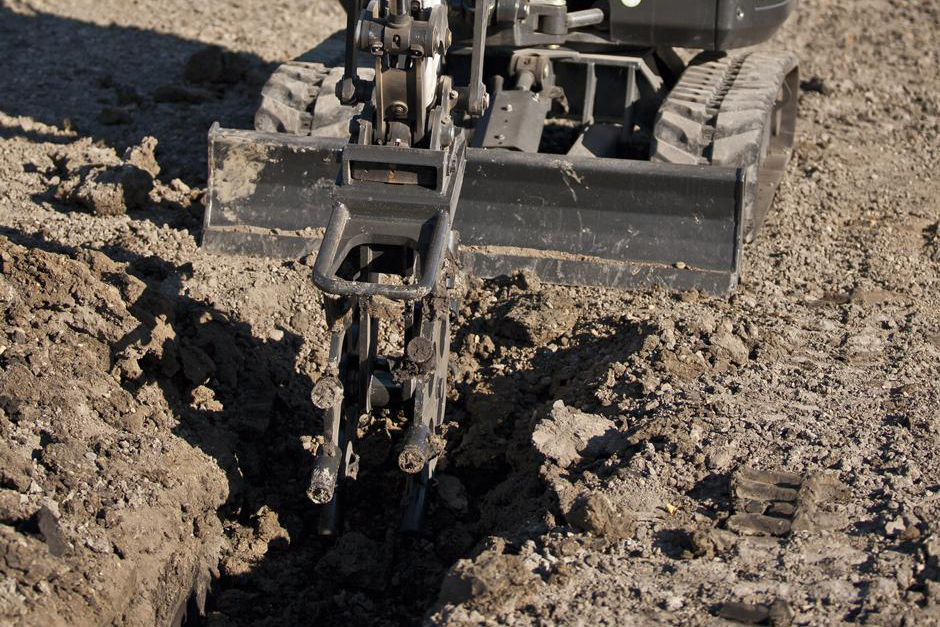

Easily compact backfilled trenches with the powerful force and labor-saving efficiency of the Bobcat packer wheel attachment. The packer wheel promotes on-the-job safety by eliminating the need for a person working in the trench, while reducing the need for conventional compaction equipment. The unique design of the attachment allows it to operate in small, tight areas, increasing the versatility of the carrier. There are no auxiliary hydraulics required to operate the wheel.



Used For

  • Compacting backfilled trenches

Features

  • Compact Design: Features an 11-in wide wheel, designed for maximum performance.

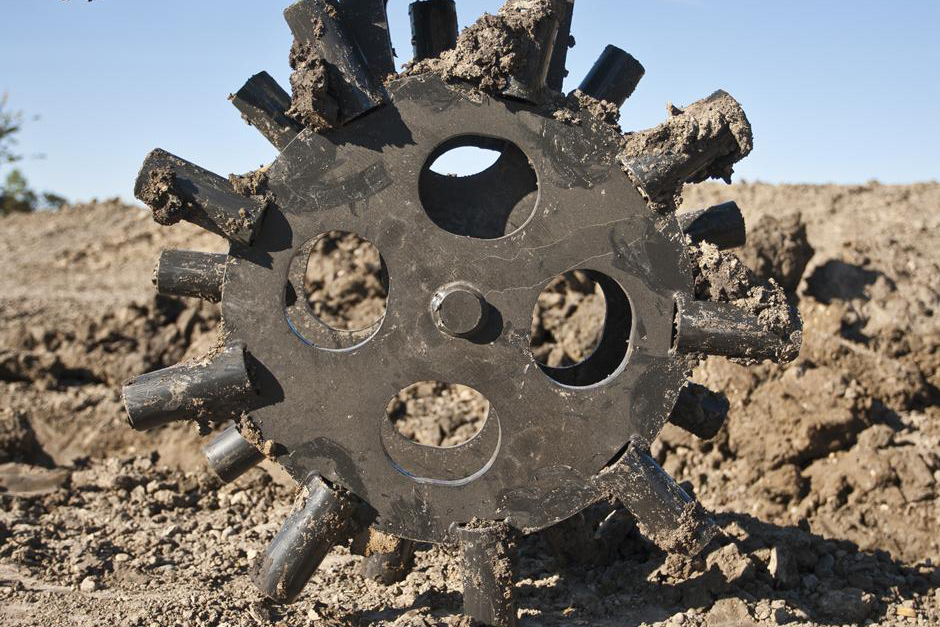

  • Double-Spike Sheep Foot Design: Easily penetrates through the lift of the backfill, compacting fill from the bottom up.
  • Lift Depth: Can be varied to match moisture content, texture and other soil conditions.

Packer Wheel

Specs

  • WEIGHT
    385 lb
  • LENGTH
    39.8 in
  • WIDTH
    11 in
  • HEIGHT
    30.1 in
  • WHEEL ASSEMBLY
    2
  • WHEEL DIAMETER
    30 in
  • SHEEPFOOT (HOLLOW TUBE)
    18 (9 per wheel)
