Landplane

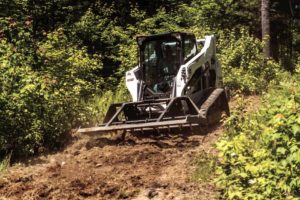

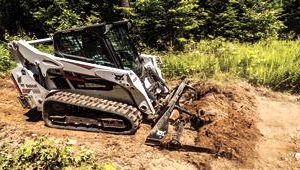

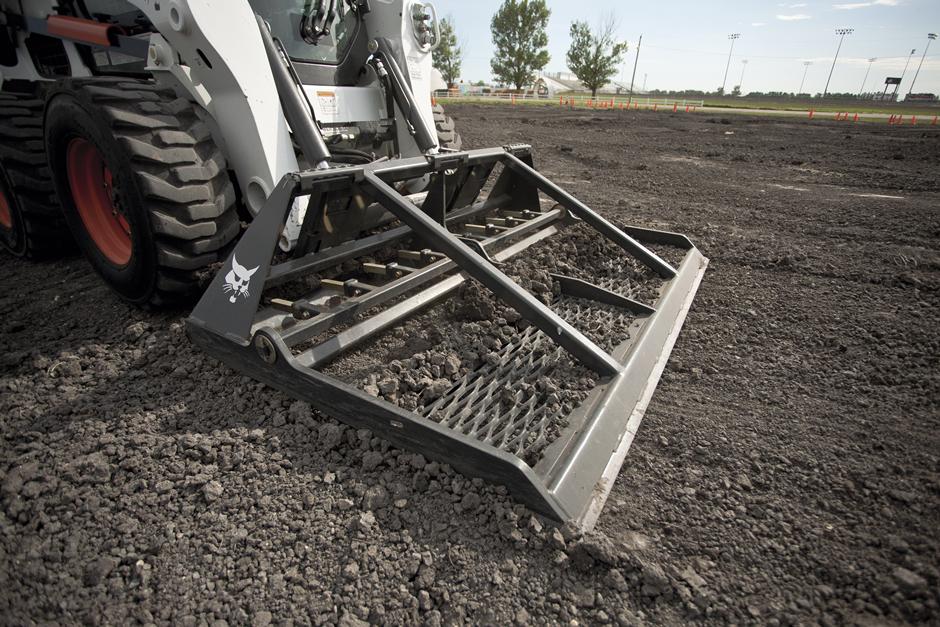

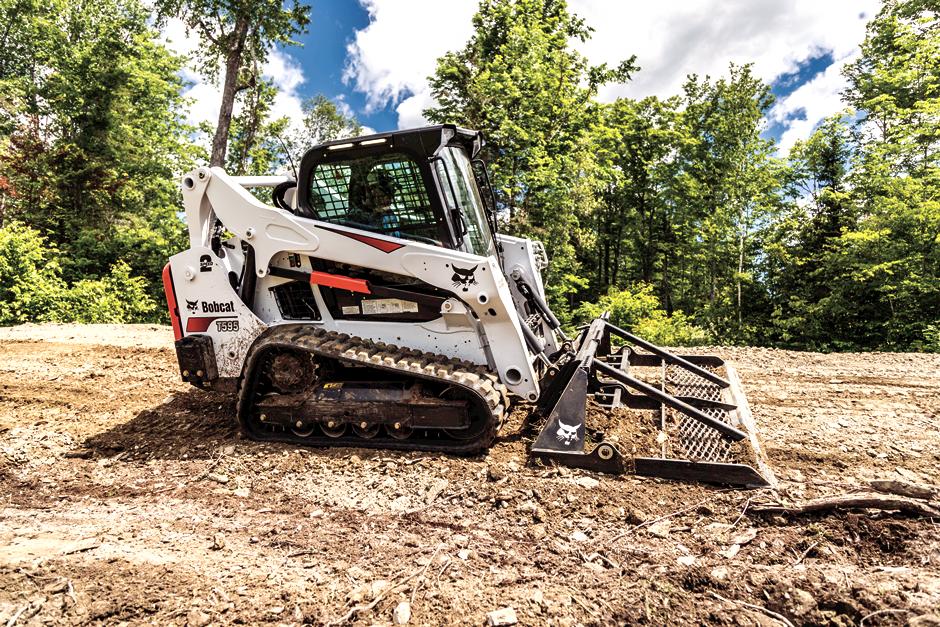

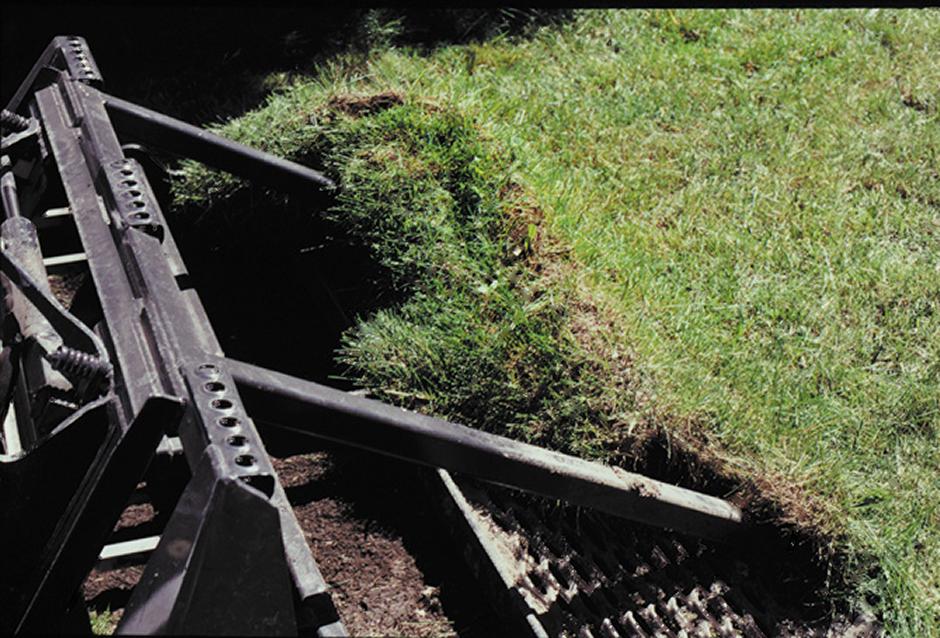

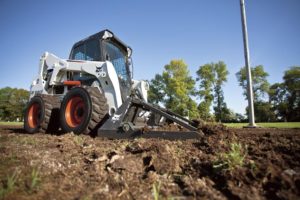

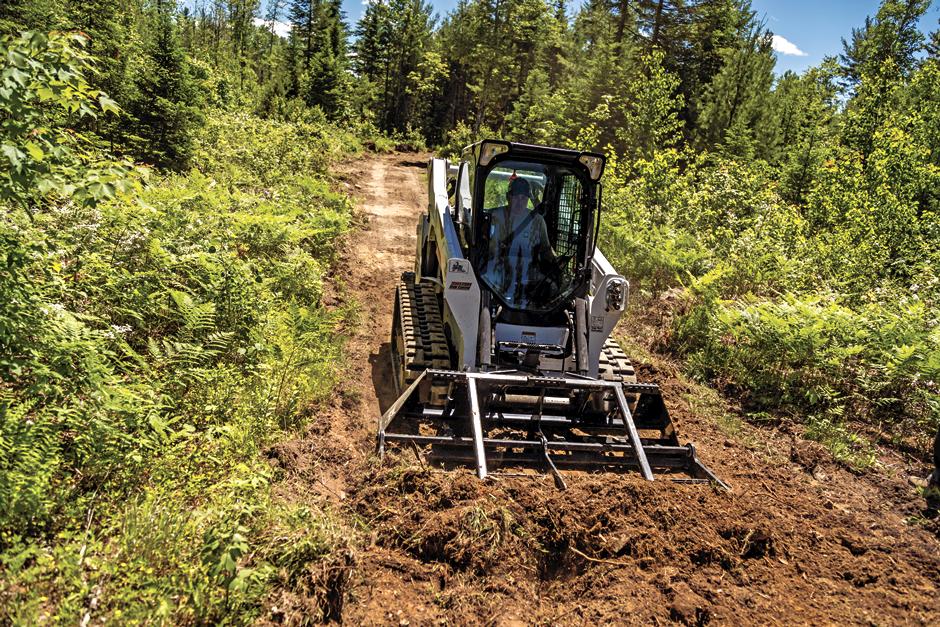

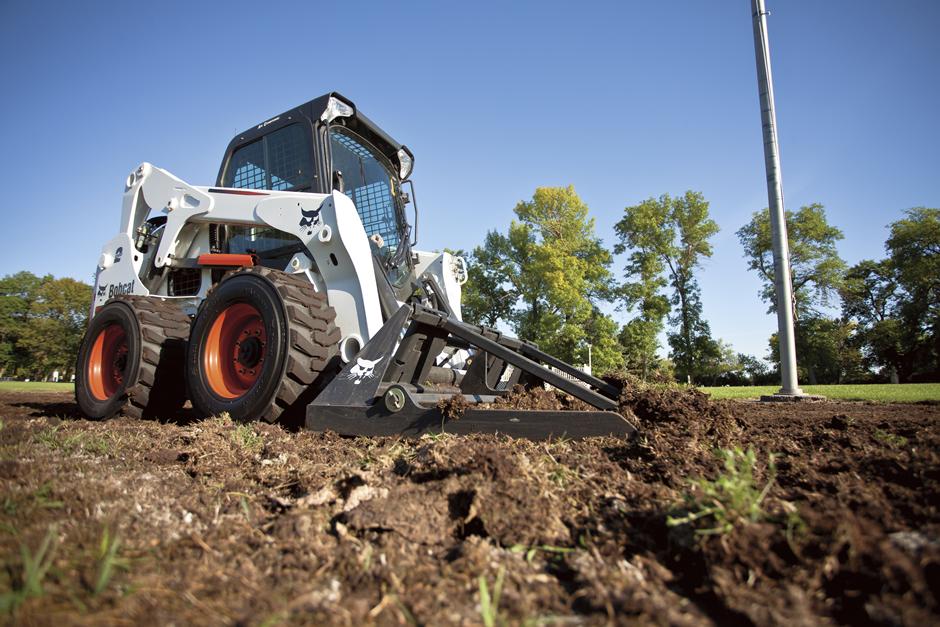

Remove large clods and rocks while leveling and grading with the landplane attachment. Working in either forward or reverse, the landplane makes it easy to break up hard ground and level a surface. Use the landplane to peel sod or aerate soil for seeding. No more back-breaking hand-raking. Turn a loader into a powerful land-planing tool with the landplane attachment.



Used For

  • Peeling soil
  • Sifting soil to remove large rocks
  • Aerating soil for seeding
  • Pulverizing soil clods
  • Grading, levelling and transporting materials

Features

  • Bi-Directional Operation: Allows controlled grading and leveling in both forward and reverse directions.
  • Removable Screen: Bi-directional scarifier and removable screen to pulverize soil clods, aerate and remove debris.
  • Fold-Down Scarifier: Can be lowered to break up hard soil or retracted when not required.
  • Versatility: Can be used for transporting materials on site and for sorting unwanted debris from soil.
  • Bob-Tach™ Mounting System: Makes easy work of attaching and detaching the landplane from the loader.

Landplane

Deluxe - 48"

  • WEIGHT
    390 lb
  • LENGTH
    46.6 in
  • WIDTH
    48 in
  • HEIGHT
    20.6 in
  • CUTTING EDGE WIDTH
    48 in
  • WORKING DEPTH
    3 in
  • CUTTING EDGE
    0.5 in X 4 in
  • CUTTING EDGE LENGTH
    4 in

Deluxe - 72"

  • WEIGHT
    680 lb
  • LENGTH
    51.5 in
  • WIDTH
    73 in
  • HEIGHT
    20.9 in
  • CUTTING EDGE WIDTH
    73 in
  • WORKING DEPTH
    3.5 in
  • CUTTING EDGE
    0.5 in X 6 in
  • CUTTING EDGE LENGTH
    6 in

Deluxe - 78"

  • WEIGHT
    700 lb
  • LENGTH
    51.5 in
  • WIDTH
    79 in
  • HEIGHT
    20.9 in
  • CUTTING EDGE WIDTH
    79 in
  • WORKING DEPTH
    3.5 in
  • CUTTING EDGE
    0.5 in X 6 in
  • CUTTING EDGE LENGTH
    6 in
