Grader

Grader

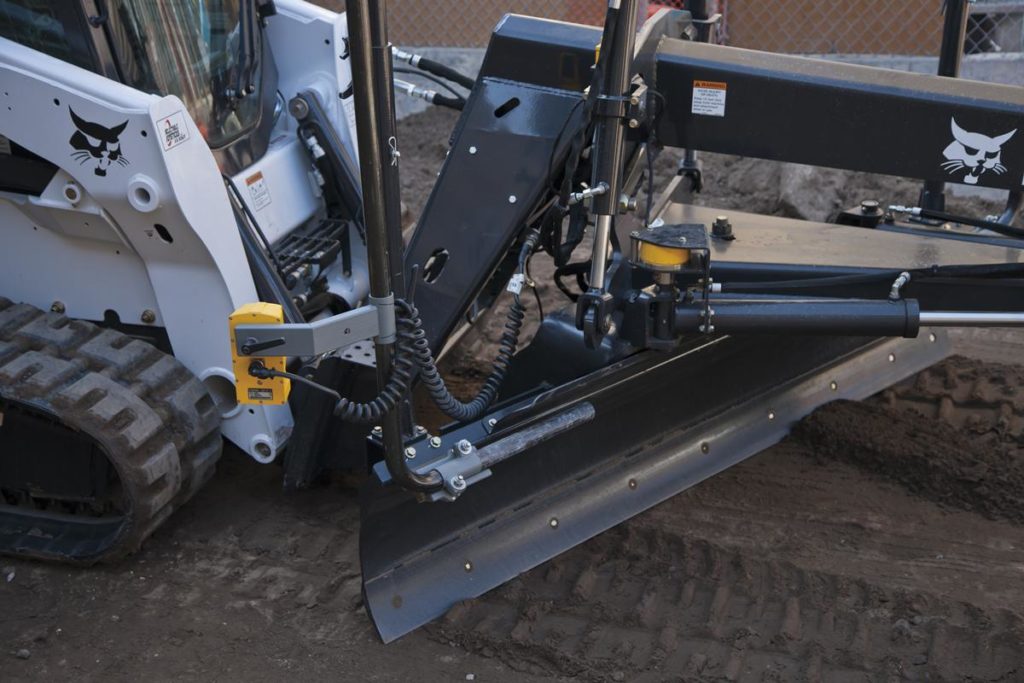

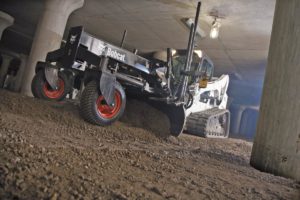

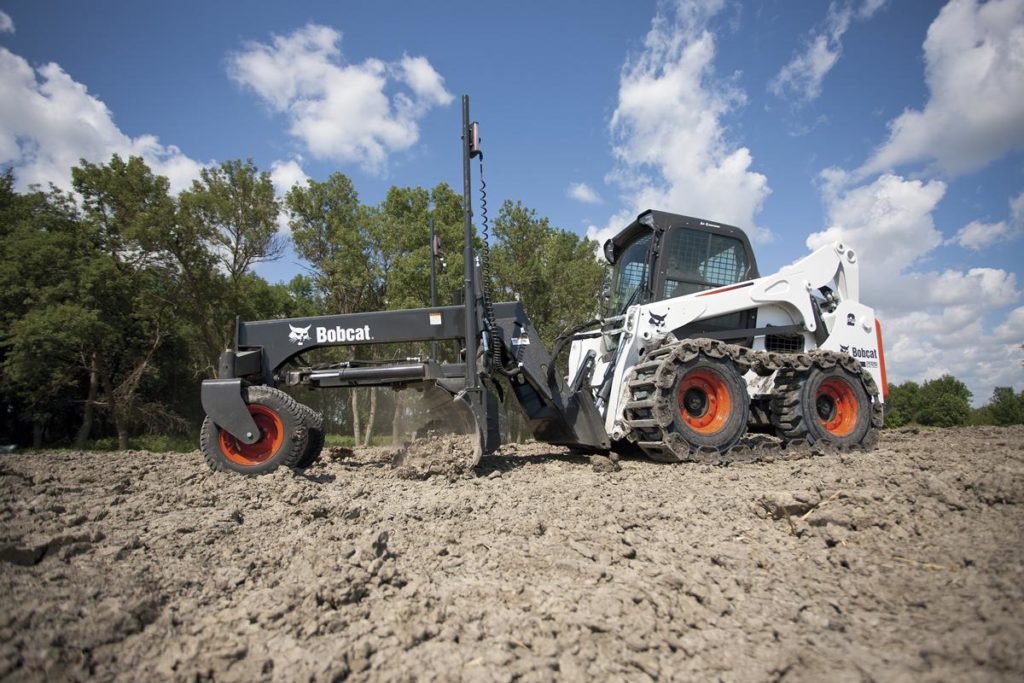

Grade surfaces with precision and control with with Bobcat grader attachment. Hydraulic cylinders independently adjust each side of the moldboard to angle and side shift it while the tires on the bolster provide excellent floatation to keep your grader moving smoothly over your work area. The blade moves 6 or 8 different ways to grade any surface and the bolster oscillates to minimize the effect of uneven ground, delivering consistent grade every time. Combine it with a sonic slope system or 3D ready system for an even more accurate grade.

Used For

• Asphalt, curbs, gutters & concrete
• Landscaping
• Trail & path construction

Features

• Dirt Shield: Keeps pushed materials moving forward.

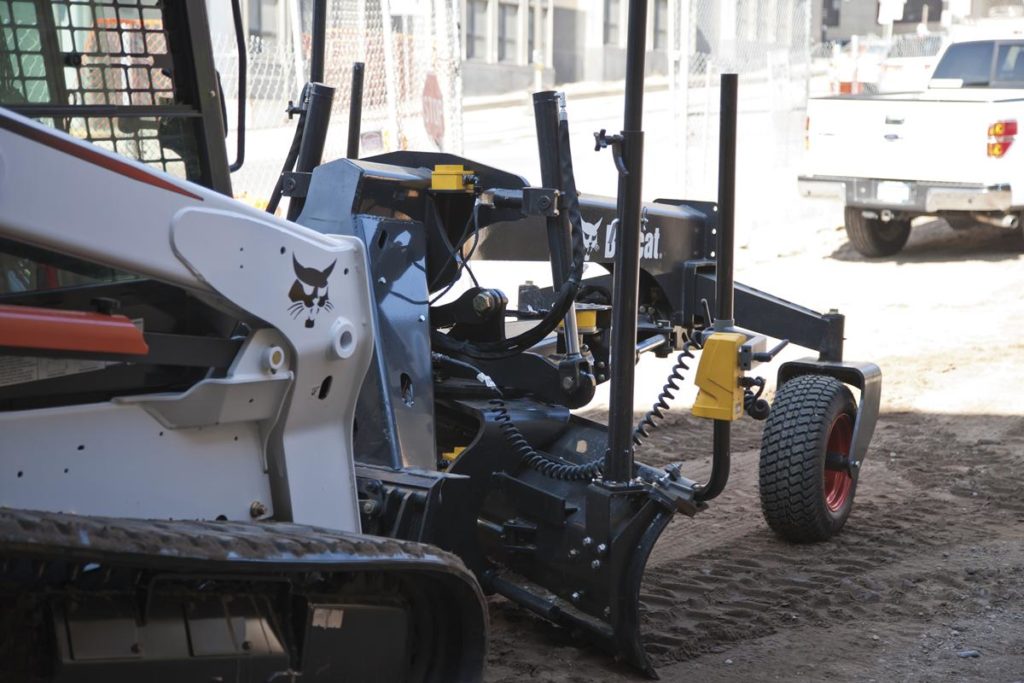

• Flotation Tires: Provide excellent flotation to keep the grader moving smoothly over the work area.
• Side Shift: Manual shift moves the blade up to 12-in to the left or right, while hydraulic moves it up to 13-in.
• Oscillating Bolster: moves left or right to minimize the effect of uneven ground.
• Proportional Hydraulic Valve: 3 speeds that the moldboard is raised or lowered.
• Bolt-on Reversible Cutting Edge: When the edge wears out it can be flipped over to provide a fresh cutting edge.

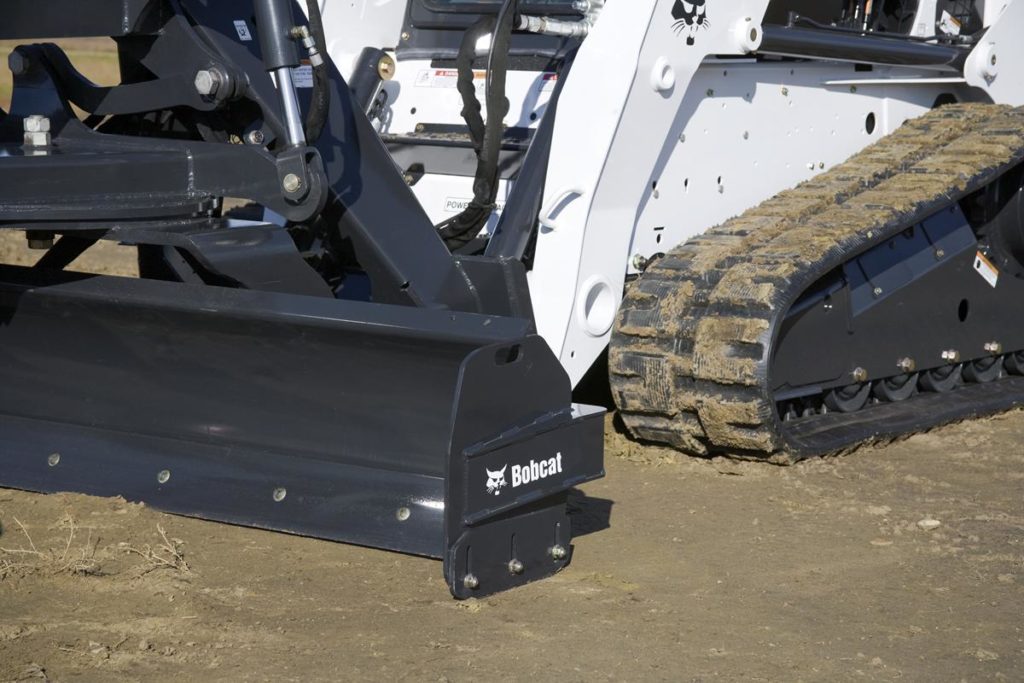

• Bolt-on End Wing Kit: Carry more material when grading or spreading materials.

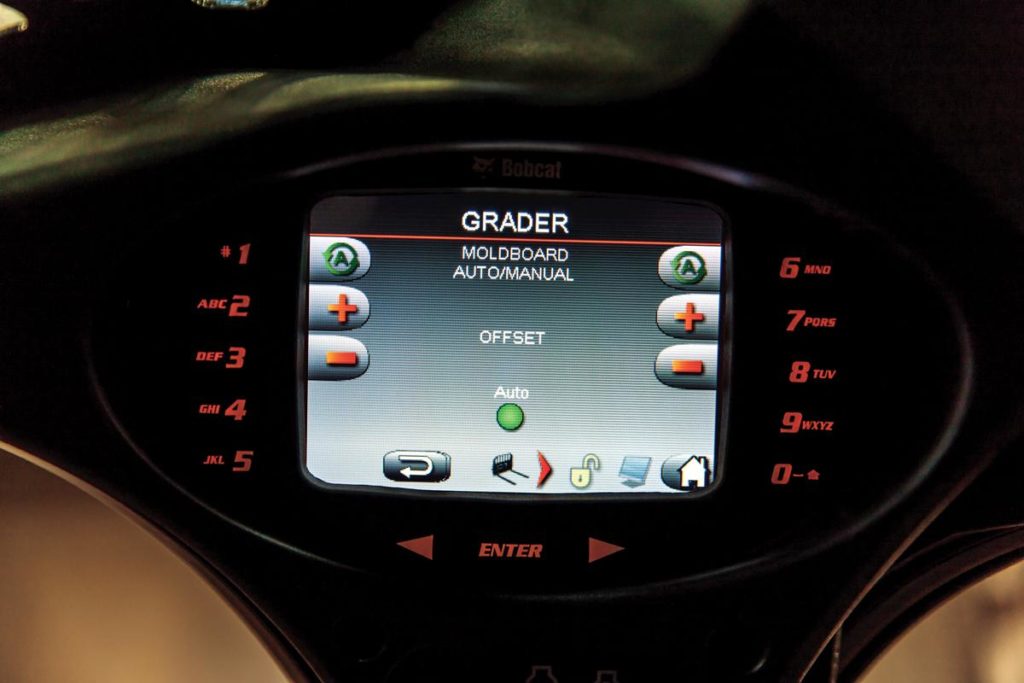

• Automatic Control Systems: Automatically moves the blade up or down to keep the base material exactly on-grade.

Options

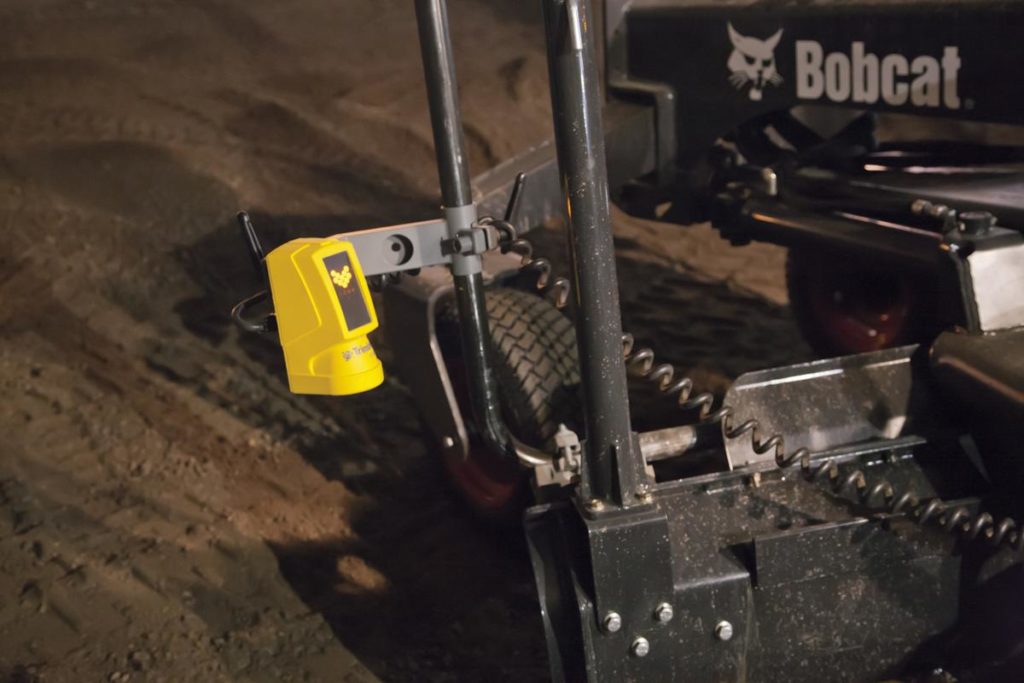

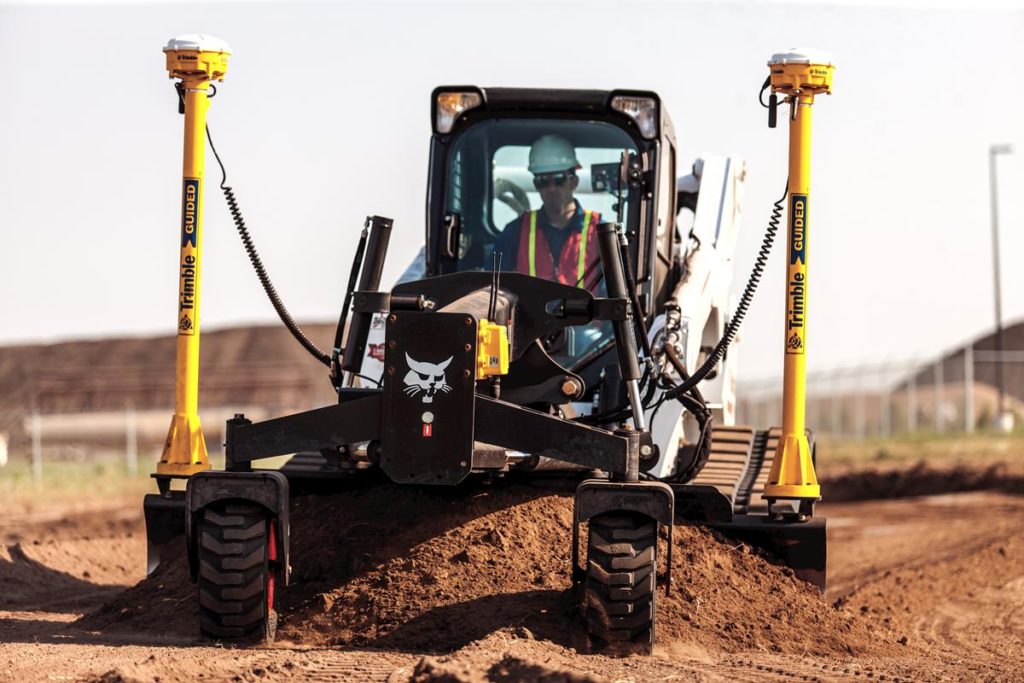

• Laser Control System: The farther the blade is from grade, the more quickly it will move to grade.
• Sonic/Slope System: Mounted on the side, it will follow the terrain below the sonic tracer and maintain a consistent cross-slope.

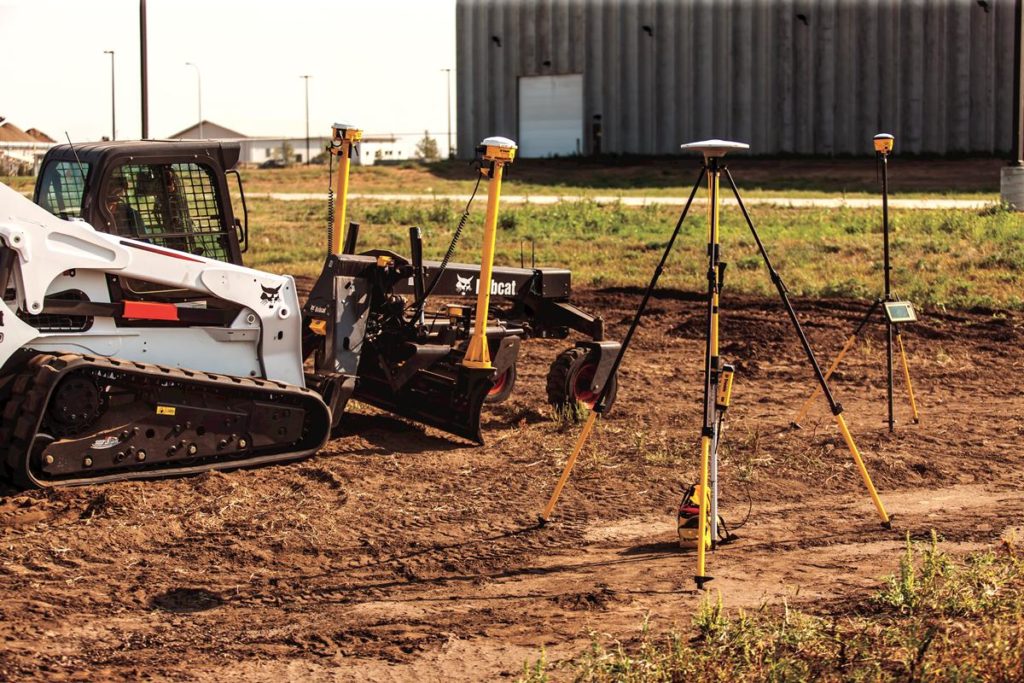

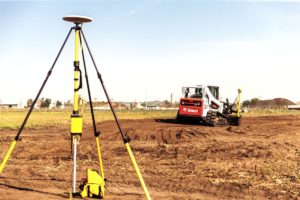

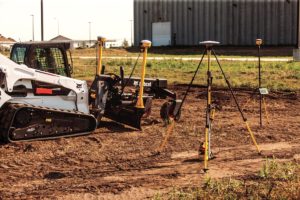

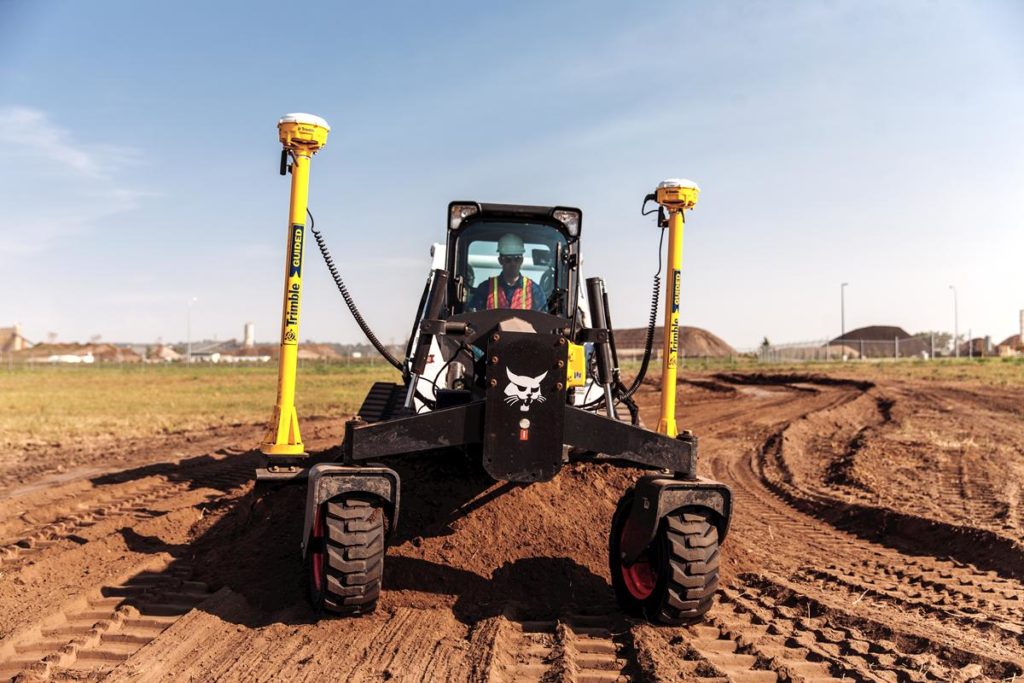

• 3D Ready System: Using GPS or UTS, the system has the ability to complete complex design projects.

Grader

Grader - 84"

• WEIGHT

  1,375 lb

• LENGTH

  94.5 in

• WIDTH

  84 in

• HEIGHT

  46.7 in

• CYLINDERS

  3

• BOLSTER OSCILLATION

  25

• GRADER CONTROL VALVE

  3 spool electric solenoid control

• BLADE OFFSET (RIGHT OR LEFT)

  12 in

• MOLDBOARD ANGLE (RIGHT OF LEFT)

  25°

• WIDTH OF MOLDBOARD

  84 in

• WIDTH OF MOLDBOARD (FULLY ANGLED)

  76.1 in

• MOLDBOARD CUTTING EDGE

  1/2 in x 6 in

• CUTTING EDGE - LENGTH

  6 in

• CUTTING EDGE - WIDTH

  0.5 in

Grader - 96"

• WEIGHT

  2,788 lb

• LENGTH

  104 in

• WIDTH

  96 in

• HEIGHT

  60 in

• CYLINDERS

  5

• BOLSTER OSCILLATION

  12

• GRADER CONTROL VALVE

  3 spool electric solenoid control

• BLADE OFFSET (RIGHT OR LEFT)

  n/a

• MOLDBOARD ANGLE (RIGHT OF LEFT)

  30°

• WIDTH OF MOLDBOARD

  96 in

• WIDTH OF MOLDBOARD (FULLY ANGLED)

  83.3 in

• MOLDBOARD CUTTING EDGE

  5/8 in x 6 in

• CUTTING EDGE - LENGTH

  6

• CUTTING EDGE - WIDTH

  0.6 in

Grader - 108"

• WEIGHT

  2,861 lb

• LENGTH

  104 in

• WIDTH

  108 in

• HEIGHT

  60 in

• CYLINDERS

  5

• BOLSTER OSCILLATION

  12

• GRADER CONTROL VALVE

  3 spool electric solenoid control

• BLADE OFFSET (RIGHT OR LEFT)

  n/a

• MOLDBOARD ANGLE (RIGHT OF LEFT)

  30°

• WIDTH OF MOLDBOARD

  108 in

• WIDTH OF MOLDBOARD (FULLY ANGLED)

  93.7 in

• MOLDBOARD CUTTING EDGE

  5/8 in x 6 in

• CUTTING EDGE - LENGTH

  6

• CUTTING EDGE - WIDTH

  0.6 in
