Concrete Pump

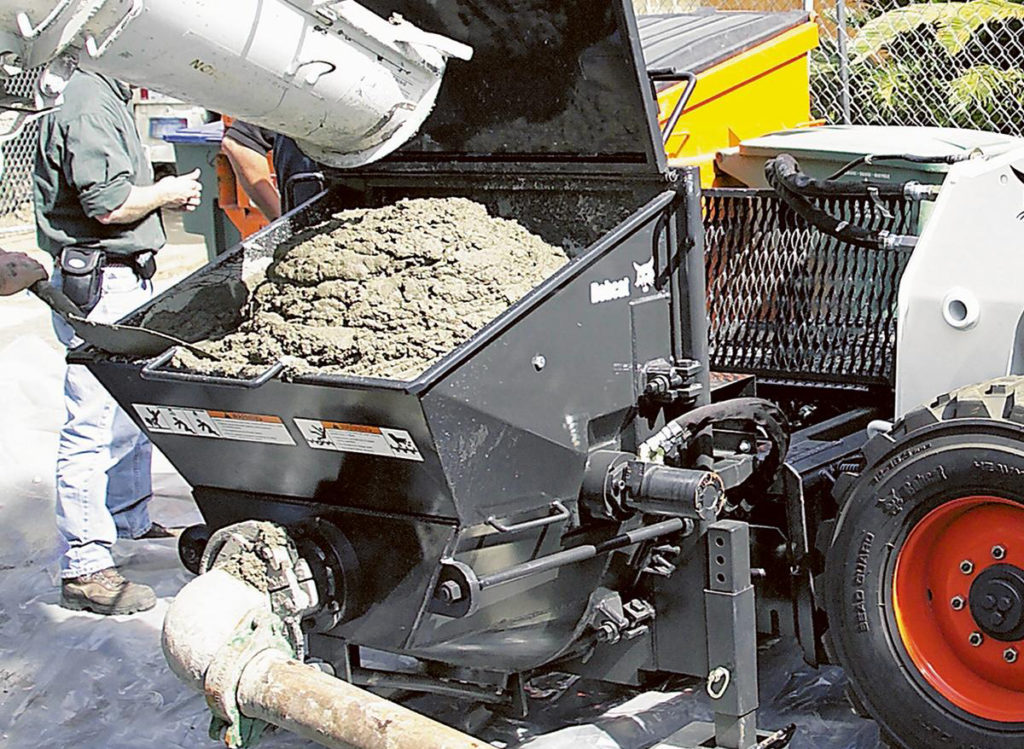

The Bobcat® concrete pump attachment simplifies pouring concrete in difficult-to-reach locations. You no longer need mud buggies, wheelbarrows, shovels or chutes. this powerful attachment can pump concrete as far as 250 feet horizontally and up to two stories vertically, depending on hose length, diameter and varying conditions. With a standard hydraulic flow loader, the pump can place concrete up to 18 cubic yards per hour and with a high-flow loader, it can place concrete up to 28 cubic yards per hour.



Used For

  • Pouring concrete in difficult-to-reach locations

Features

  • Versatility: Dual mounting positions allow the hopper to be placed on the right or left side of the loader
  • Production: Places up to 28 cubic yards per hour, depending on hydraulic flow.
  • Control Panel: Swivels for easier operation.
  • Remote Attachment Control: Start and stop the loader, start, stop and reverse the pump and turn the high-flow hydraulics on/off from outside the cab.
  • Legs: Adjust quickly to match uneven terrain
  • Protective Guard Panel: Strains larger objects from concrete mix.

Concrete Pump

Specs

  • WEIGHT
    2,200 lb
  • LENGTH
    102.9 in
  • WIDTH
    47.9 in
  • HEIGHT
    54.9 in
  • CONCRETE CYLINDER DIAMETER
    6 in
  • CONCRETE CYLINDER STROKE
    24 in
  • MAXIMUM AGGREGATE SIZE
    1.5 in
  • MAXIMUM CONCRETE PRESSURE
    750 psi
  • SWING TUBE DIAMETER
    5 in
  • SWING VALVE CYLINDER DIAMETER
    3 in
  • SWING VALVE CYLINDER STROKE
    6 in
  • PUMPING CYLINDER DIAMETER
    3 in
  • PUMPING RATE
    Up to 30 cu. Yd. (23 cu. M.) per hour*
  • VERTICAL PUMPING HEIGHT
    50 ft
  • HORIZONTAL PUMPING DISTANCE
    250 ft
  • HOPPER CAPACITY
    10 ft³
