Chipper

Chipper

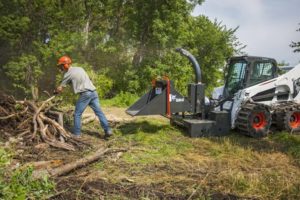

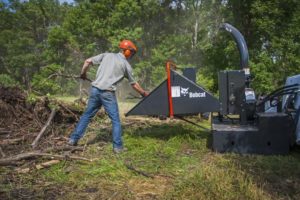

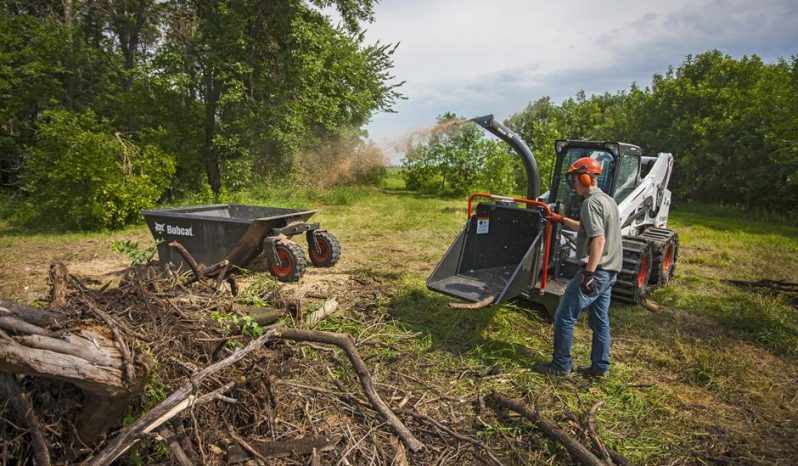

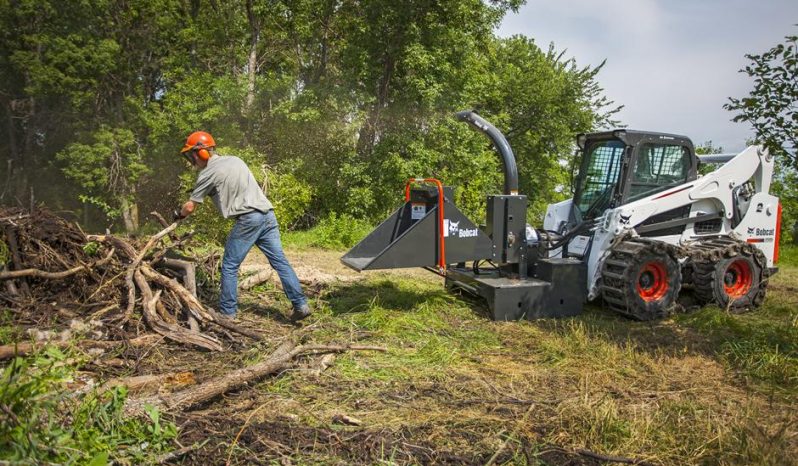

Using a powerful disk chipping action, the Bobcat chipper attachment continuously mulches materials – up to 5-in in diameter – such as trees, limbs, branches, and saplings. The compact design of the attachment allows it to operate in any environment where a loader can travel, unlike pull-type chippers, it can perform chipping jobs virtually anywhere! Ideal for tree removal, pruning services, parks and recreation, and personal property maintenance, the chipper attachment breaks brush into small chips and discharges the chips through the discharge chute, which can be rotated 360° for maximum angle positioning.

Used For

• Mulching branches, trees & debris

Features

• Adjustable Deflector: Reduces the distance chips are thrown from the attachment and deflects the chips into a desired work area.
• Chipper Discharge Chute: Rotates 360°, providing maximum angle positioning.
• Chipper Disk: Provides heavy-duty strength when cutting heavy material.
• Dual Mounting Locations: Allows the intake housing to be mounted to either the front or right side of the machine.
• Four Tool-Steel Blades: Provide optimum cutting performance while the tool-steel extends blade life.
• Hydraulic Power Feed: Directs branches into the chipper attachment.
• Variable Speed Roller: Gives the operator the ability to set the initial feeding speed.
• Remote Attachment Control (RAC) Kit: Operator can start the loader without entering the loader.

Chipper

5A Standard Flow

• WEIGHT

  1,145 lb

• LENGTH

  102 in

• WIDTH

  48 in

• HEIGHT

  92 in

• BLADES

  4 reversible tool steel blades

• CONTINUOUS CHIPPING SIZE

  Up to 3" diameter material

• DISCHARGE CHUTE (INCL. END DEFLECTOR)

  Rotates 360°

• DISCHARGE CHUTE HEIGHT

  92 in

• DUAL MOUNTING LOCATIONS

  Front or right side of loader

• FEED TABLE HEIGHT

  23.5 in

• FEEDER OPENING

  5 in

8B High Flow

• WEIGHT

  1,660 lb

• LENGTH

  102.1 in

• WIDTH

  61 in

• HEIGHT

  93.3 in

• BLADES

  4 reversible tool steel blades

• CONTINUOUS CHIPPING SIZE

  Up to 5" diameter material

• DISCHARGE CHUTE (INCL. END DEFLECTOR)

  Rotates 360°

• DISCHARGE CHUTE HEIGHT

  93.3 in

• DUAL MOUNTING LOCATIONS

  Front or right side of loader

• FEED TABLE HEIGHT

  25.4 in

• FEEDER OPENING

  9.2 in
