< Bobcat Attachments

Box Blade

Want to rent before you buy? SEE RENTALS

Request a Quote

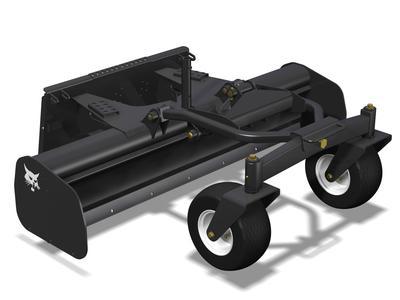

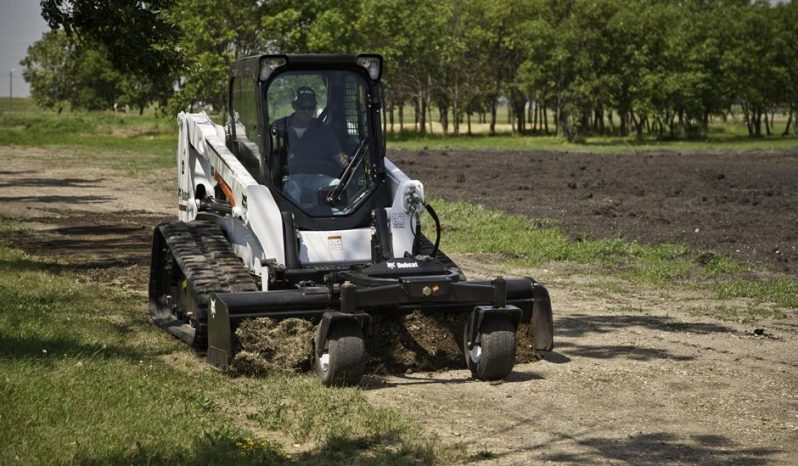

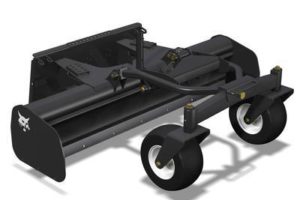

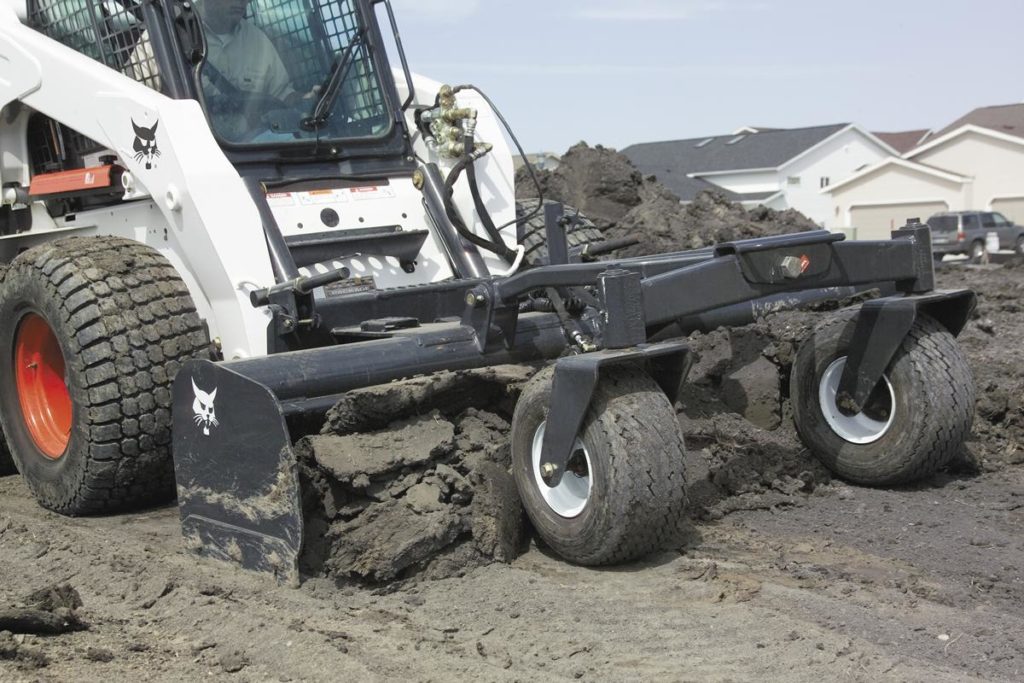

Box Blade

Control your grading operation with the accuracy and durability of the Bobcat box blade attachment. Designed for maximum performance, it features foam-filled tires which provide excellent floatation to keep the box blade moving smoothly over the work area. For decreased downtime on the job, the cutting edge of the moldboard is reversible and once worn, can be flipped over to provide a fresh cutting blade.



Used For

  • Filling in low spots
  • Rough grading and landscaping
  • Carrying materials along the surface close to grade
  • Fine and precise grading for flatwork applications

Features

  • Box End Wings: Carry more when spreading fine materials such as sand or gravel.
  • Fingertip Controls: Raise and lower the blade from the comfort of the cab.
  • Foam-Filled Tires: Increase uptime protection, tires are filled with foam for guaranteed no flats.
  • Oscillating Bolster: Smoothes dips and bumps in the work environment, minimizing the effect of uneven ground.
  • Reversible Cutting Edge: Increases the life of the attachment.

Options

  • 2D laser technology: Software integrated into Deluxe Instrumentation or touch display.
  • 3D technology: Integrated into a separate display in the cab.

Box Blade

Box Blade

  • WEIGHT
    980 lb
  • LENGTH
    64.3 in
  • WIDTH
    85.5 in
  • HEIGHT
    32 in
  • BOX BLADE MOLDBOARD WIDTH
    84 in
  • MOLDBOARD CUTTING EDGE WIDTH
    0.5 in
  • MOLDBOARD CUTTING EDGE HEIGHT
    6 in
  • BOX BLADE GRADE ACCURACY WITH LASER
    n/a

Box Blade - Laser Mounting

  • WEIGHT
    1,020 lb
  • LENGTH
    64.3 in
  • WIDTH
    85.5 in
  • HEIGHT
    32 in
  • BOX BLADE MOLDBOARD WIDTH
    84 in
  • MOLDBOARD CUTTING EDGE WIDTH
    0.5 in
  • MOLDBOARD CUTTING EDGE HEIGHT
    6 in
  • BOX BLADE GRADE ACCURACY WITH LASER
    +/- 0.25 inch

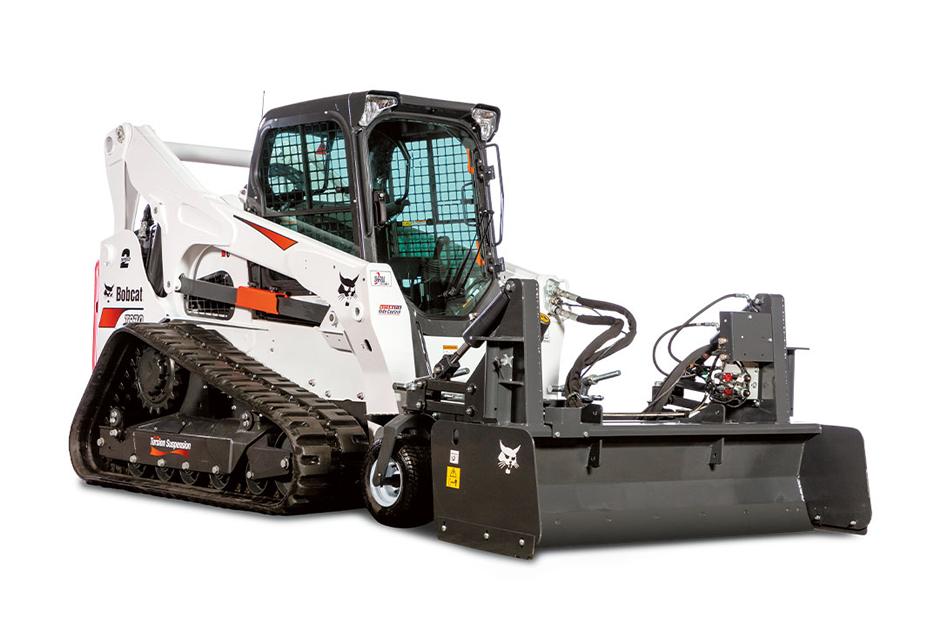

Box Blade - HD

  • WEIGHT
    1,384 lb
  • LENGTH
    64.3 in
  • WIDTH
    85.5 in
  • HEIGHT
    32 in
  • BOX BLADE MOLDBOARD WIDTH
    84 in
  • MOLDBOARD CUTTING EDGE WIDTH
    0.5 in
  • MOLDBOARD CUTTING EDGE HEIGHT
    6 in
  • BOX BLADE GRADE ACCURACY WITH LASER
    +/- 0.25 inch
