Boring Unit

Want to rent before you buy? SEE RENTALS

Request a Quote

Boring Unit

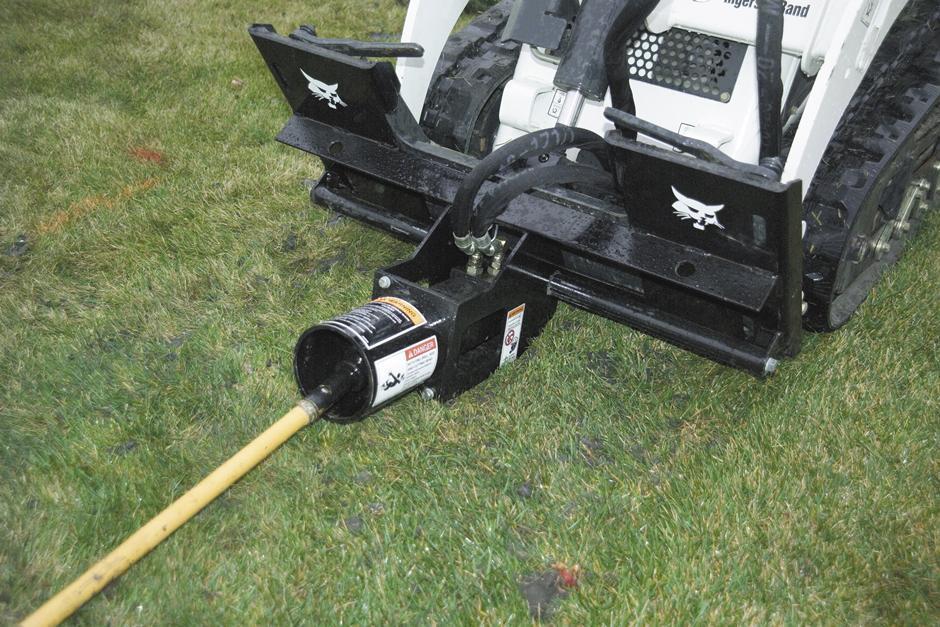

The boring unit attachment saves you time and money when tearing up sidewalks, driveways or other paved areas. This hydraulically powered attachment bores horizontally to accommodate pipe or cable up to 4-in in diameter, and after boring, it works to pull the pipe or cable through the hole. The frame allows the drive head to be mounted in three positions, on the center, right or left side, to position it directly next to obstacles and exactly where the operation is desired.



Compatible Models:

Bobcat S70, MT55, MT100, L23 & L28



Used For

  • Installing irrigation lines & flexible water pipes
  • Installing electrical, telephone & television cables

Features

  • Boring Depth: Bores up to 2-ft deep and up to 30-ft horizontally.
  • Manual Guide Rod: Starts the bit at the proper angle to ensure accurate drilling.
  • Three Positions: Allows the attachment to be positioned directly next to obstacles.
  • Versatility: Available with various sizes of bits, reamers and rock heads.

Boring Unit

Specs

  • WEIGHT
    130 lb
  • HEIGHT
    17.5 in
  • LENGTH
    26.8 in
  • WIDTH
    36 in
  • BED HEIGHT FROM GROUND
    38.2 in
  • BLADE HEIGHT
    25.2 in
