< Bobcat Toolcat Utility Work Machines

Bobcat Toolcat™ UW53

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

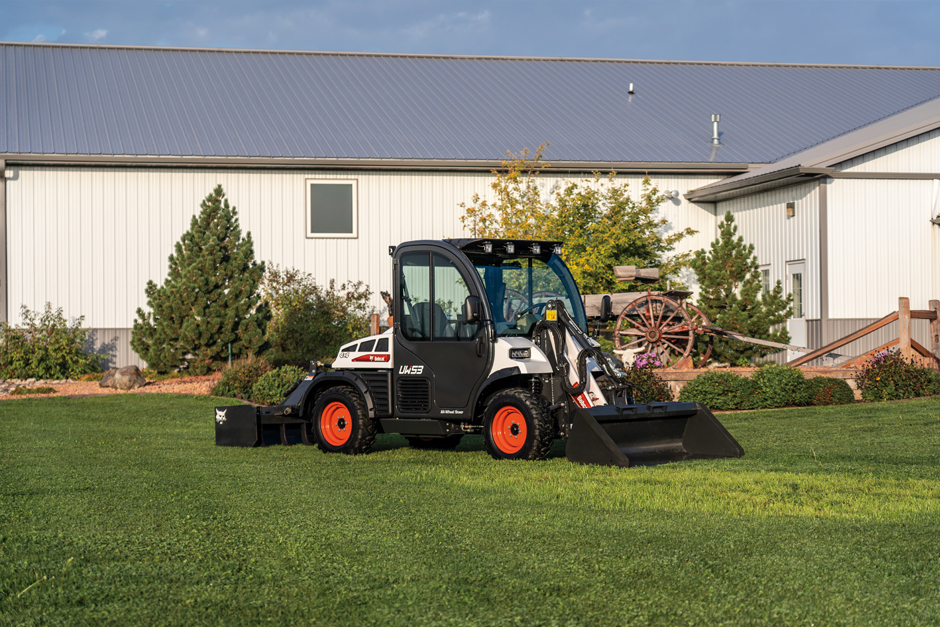

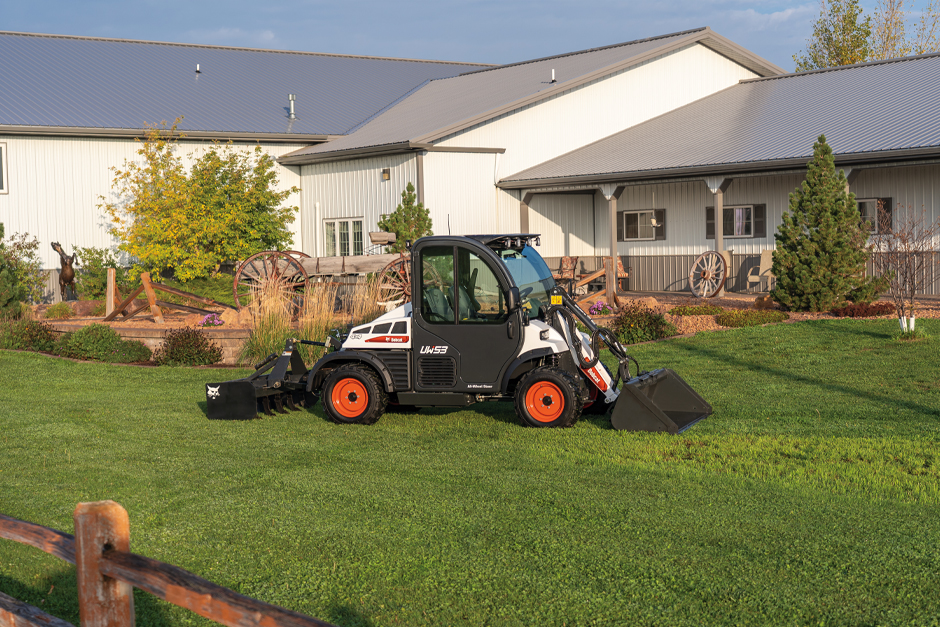

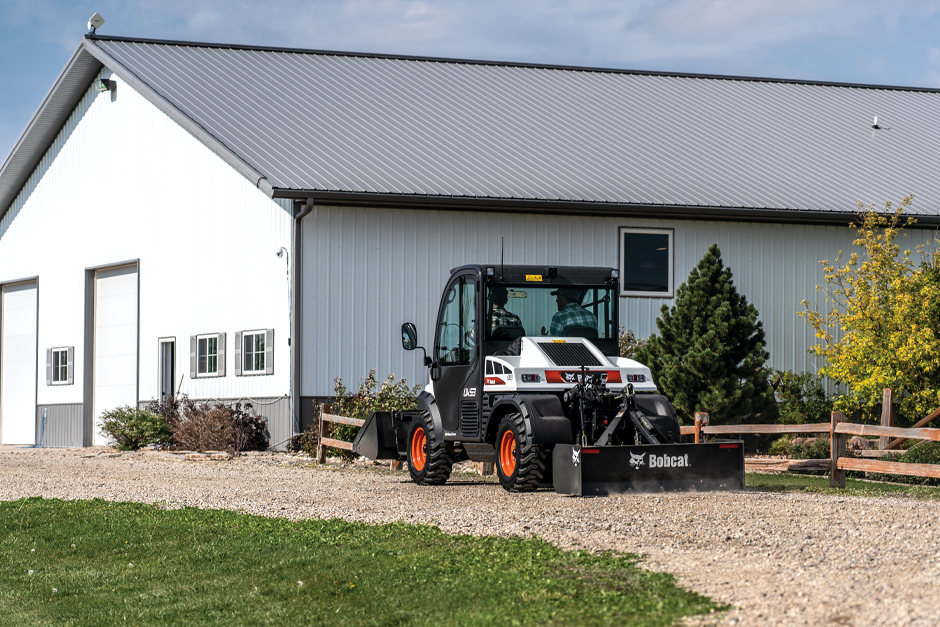

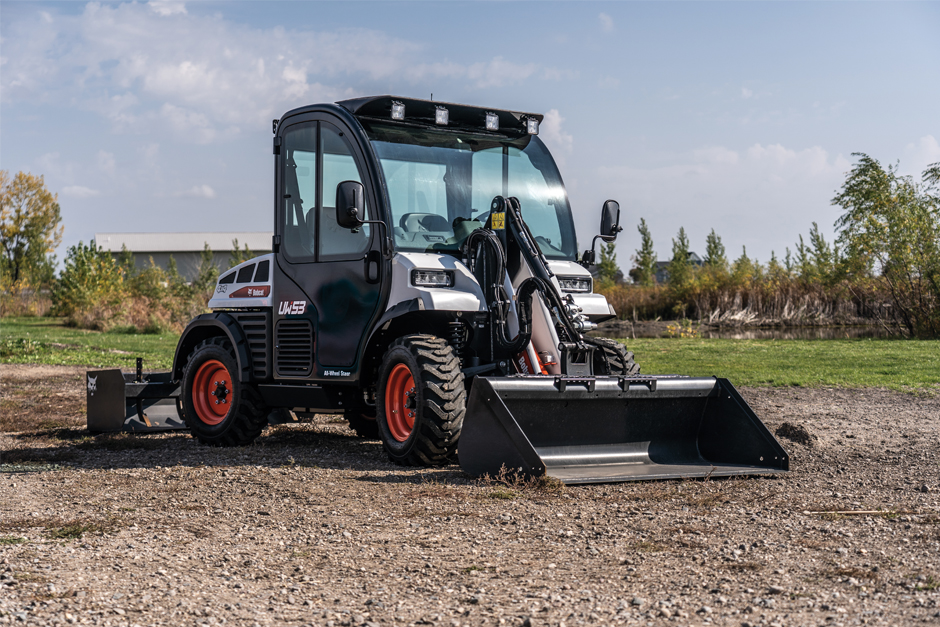

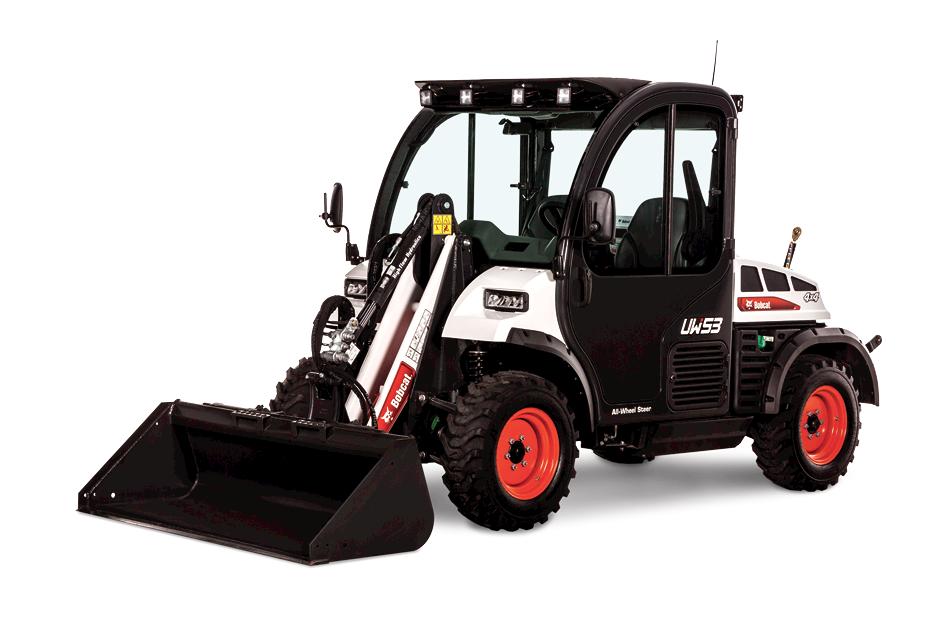

Toolcat UW53

Ask anybody who has used a Toolcat™ UW53 utility work machine, and they’ll tell you it’s the most versatile machine they’ve ever operated. With the ability to operate 45+ attachments in the front and Category 1 implements in the back, it truly changes the way you work. And with standard all-wheel steering and traction control, it’s also incredibly maneuverable and responsive. Add the 3-point hitch, power take-off (PTO), and high and variable flow hydraulics, and you’ll experience truly unmatched versatility.

Toolcat Work Machine Literature:

Download Toolcat Work Machine Brochure

Download Bobcat Attachments Catalog

Features

  • Heater Air Conditioning
  • Work Lights
  • Enclosed Operator Cab (ROPS / FOPS)
  • Auxiliary Hydraulics
  • Bob-Tach Attachment System
  • Joystick Control
  • Hydrostatic Transmission

Popular Attachments

  • Sweeper
  • Angle Broom
  • Brushcat
  • Tiller
  • Landscape Rake
  • Bucket - Utility Vehicle

Toolcat UW53

    Dimensions

    • LENGTH
      180.8 in
    • LENGTH W/O ATTACHMENT
      153.8 in
    • HEIGHT
      81 in
    • WIDTH
      62 in
    • WEIGHT
      5,710 lb
    • GROUND CLEARANCE
      8 in
    • TURNING RADIUS (AWS MODE)
      50.5 in
    • CARGO BOX LENGTH
      N/A
    • CARGO BOX WIDTH
      N/A
    • CARGO BOX HEIGHT
      N/A

    Engine

    • ENGINE
      Tier 4
    • HORSEPOWER
      61 hp
    • FUEL TANK CAPACITY
      20 gal
    • FUEL TYPE
      Diesel
    • COOLING
      Liquid

    Hydraulics

    • AUXILIARY STD FLOW
      18.8 gal/min
    • AUXILIARY HIGH FLOW
      27.9 gal/min
    • AUXILIARY PRESSURE
      3,000 psi

    Operational

    • RATED OPERATING CAPACITY
      1,500 lb
    • CARGO BOX MAX LOAD
      N/A
    • TOTAL VEHICLE RATED CAPACITY
      4,200 lb
    • TRAVEL SPEED - LOW
      13 km/h
    • TRAVEL SPEED - HIGH
      27 km/h
    • TRAVEL SPEED - REVERSE
      13 km/h
    • REAR PTO RPM
      540
    • PTO HP
      25 hp
