Bobcat S70

  • Make
    Bobcat
  • Category
    Bobcat Skid Steer Loaders
  • ROC
    760 lb
  • Width
    36 in
  • Horsepower
    23.5 hp
  • Engine
    Tier 4
  • Fuel Type
    Diesel
  • Condition
    New

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

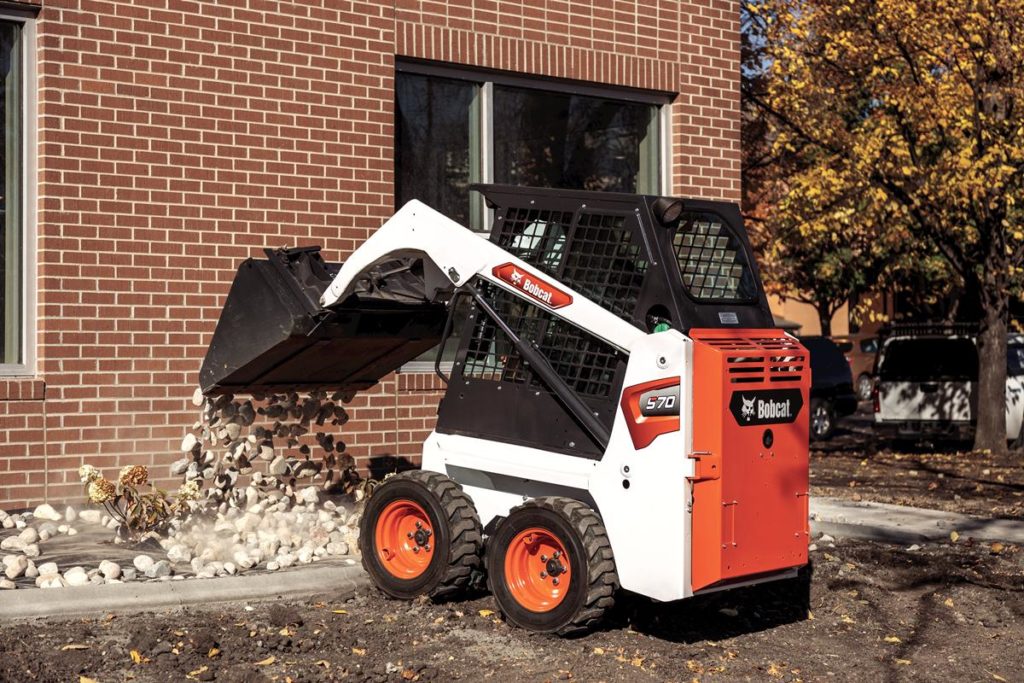

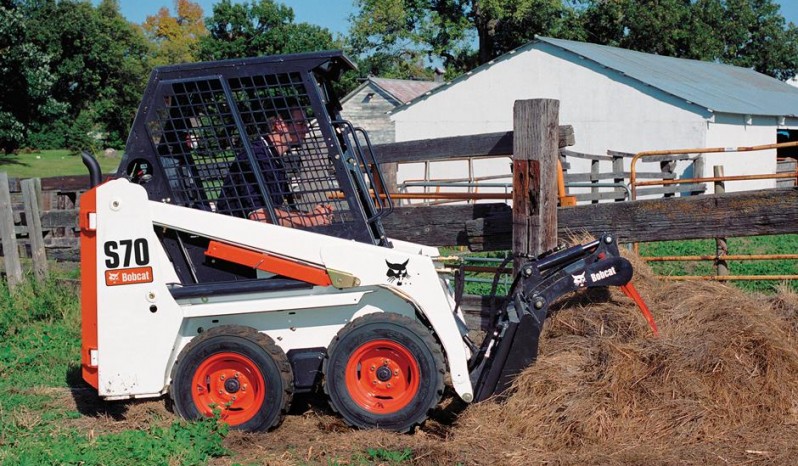

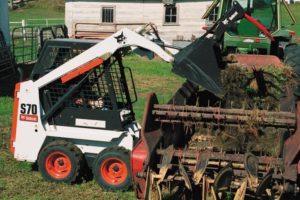

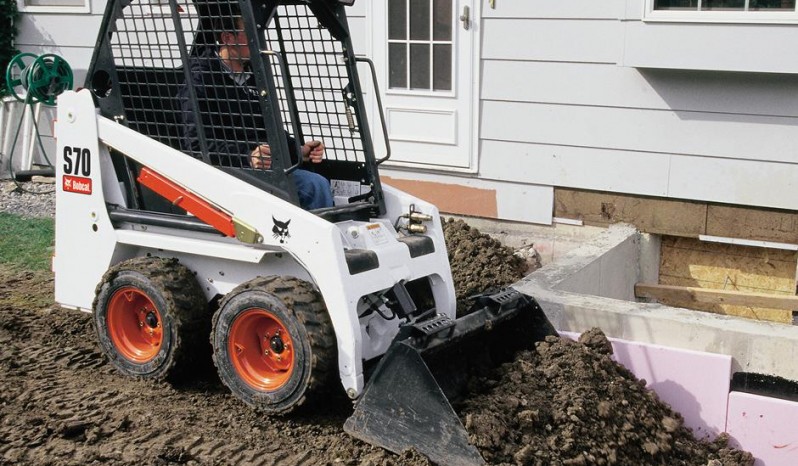

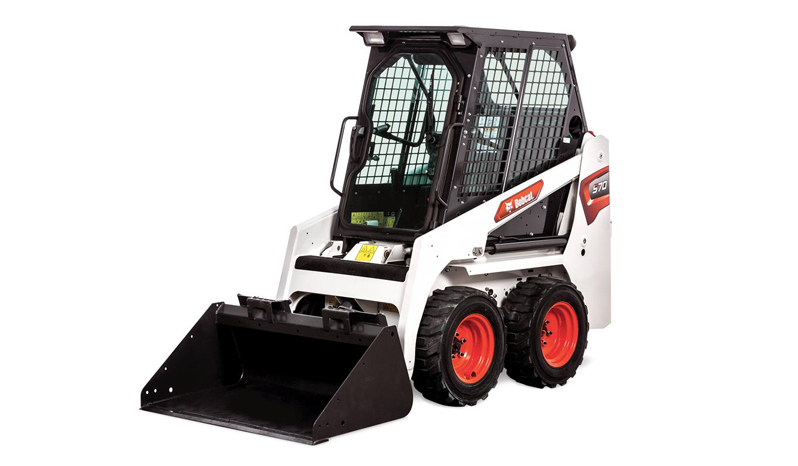

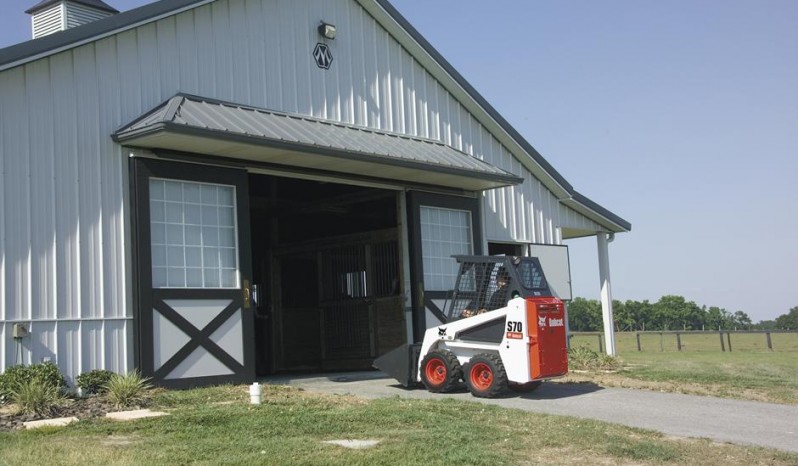

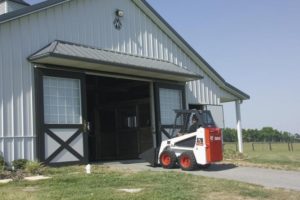

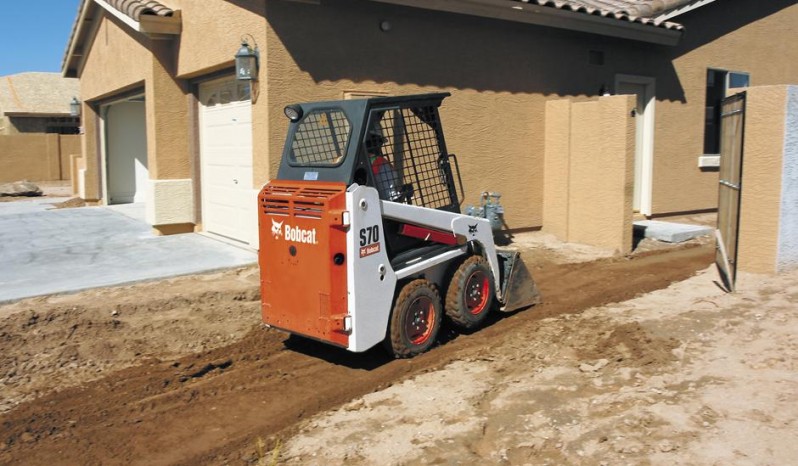

Bobcat S70

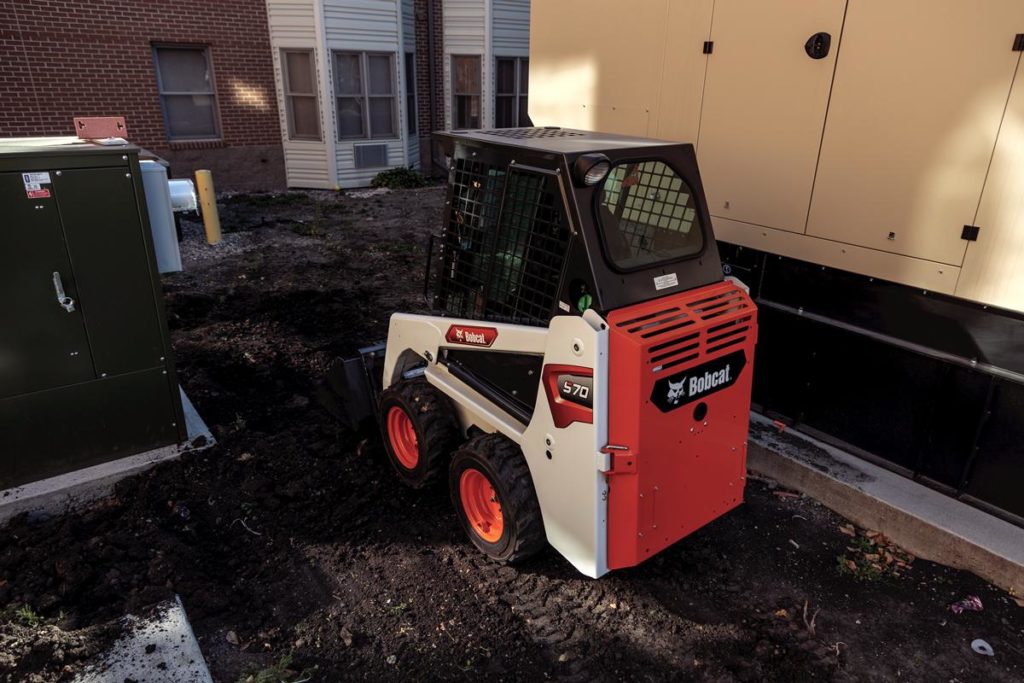

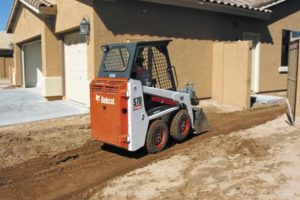

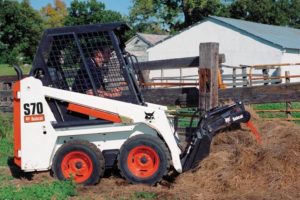

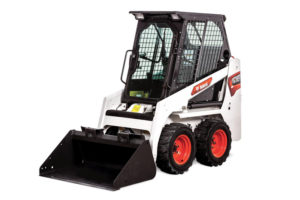

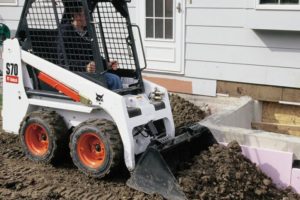

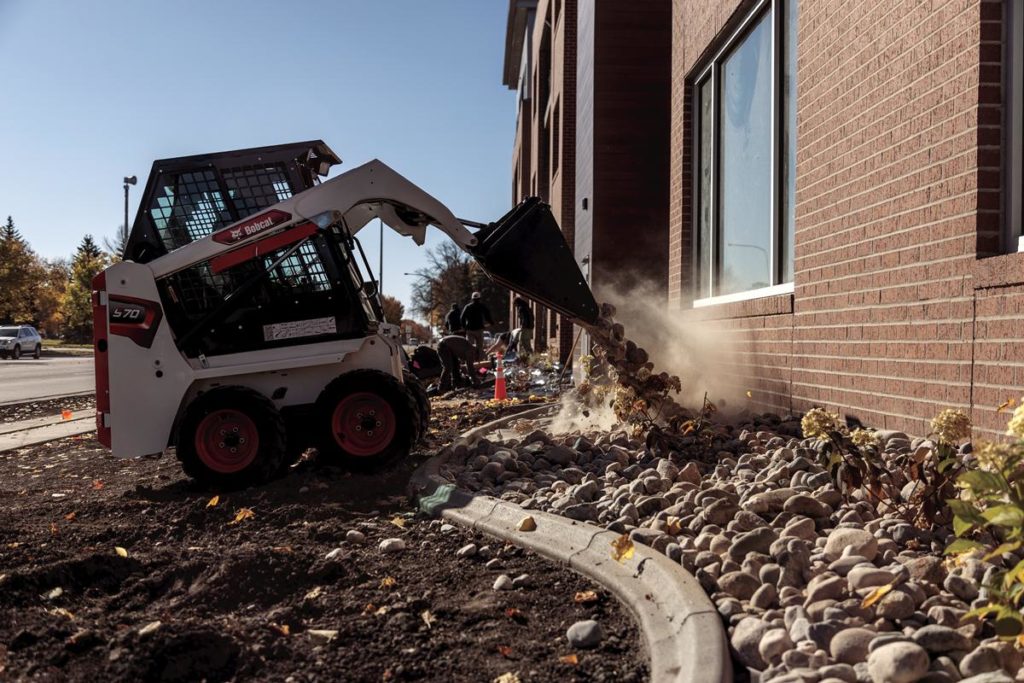

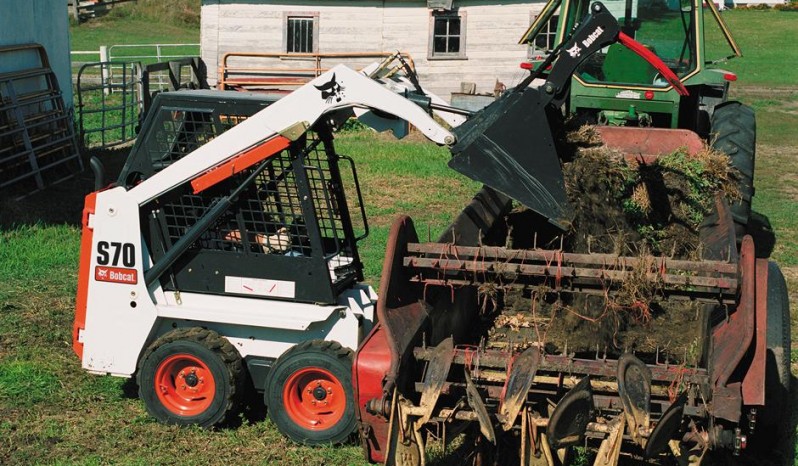

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It’s the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.

M3-Series Compact Loader Literature:

Download M3-Series Compact Loader Brochure

Download Bobcat Attachments Catalog

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Operating Lights
  • Parking Brake
  • Rear Window
  • Lift Arm Support
  • Seat Belt
  • Auxiliary Hydraulics
  • Spark Arrestor Muffler
  • Bob-Tach™ Attachment System
  • Horn

Options

  • Cab with Heat
  • Hydraulic Bucket Positioning
  • Mechanical Suspension Seat
  • Attachment Control Kit

Popular Attachments

  • Breaker
  • Auger
  • Sweeper
  • Pallet Forks
  • Stump Grinder
  • Angle Broom

Bobcat S70

    Dimensions

    • LENGTH
      75.8 in
    • LENGTH WITH BUCKET
      97.3 in
    • HEIGHT
      71.4 in
    • WIDTH
      35.5 in
    • WIDTH WITH BUCKET
      36 in
    • WEIGHT
      2,892 lb
    • HEIGHT TO BUCKET PIN
      94.5 in
    • WHEELBASE
      28.4 in
    • TURNING RADIUS
      58.7 in
    • REACH AT MAX HEIGHT
      15.8 in

    Engine

    • ENGINE
      Tier 4
    • HORSEPOWER
      23.5 hp
    • FUEL TYPE
      Diesel
    • FUEL TANK CAPACITY
      6.5 gal
    • COOLING
      Liquid
    • TURBOCHARGED ENGINE
      N/A

    Hydraulics

    • STD PUMP FLOW
      9.8 gal/min
    • SYSTEM RELIEF AT QUICK COUPLERS
      3,000 psi

    Operational

    • RATED OPERATING CAPACITY
      760 lb
    • TIPPING LOAD
      1,520 lb
    • TRAVEL SPEED
      9.8 km/h
