< Bobcat Skid Steer Loaders

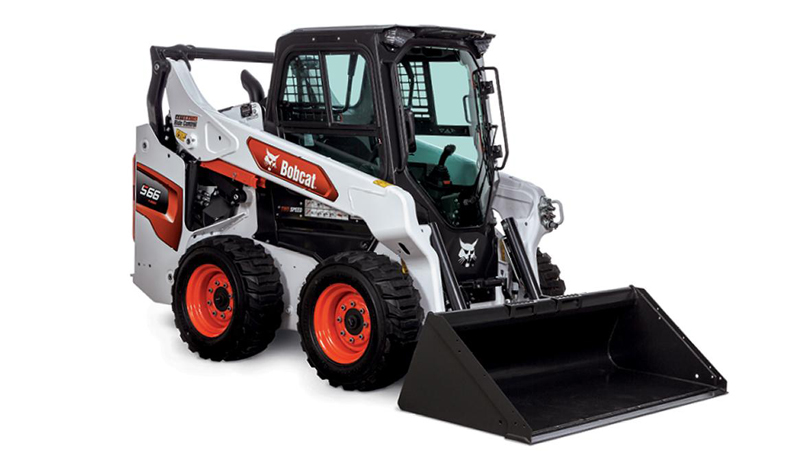

Bobcat S66

  • Make
    Bobcat
  • Category
    Bobcat Skid Steer Loaders
  • ROC
    2,400 lb
  • Width
    68 in
  • Horsepower
    74 hp
  • Engine
    Tier 4
  • Fuel Type
    Diesel
  • Condition
    New

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

S66

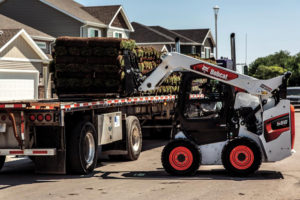

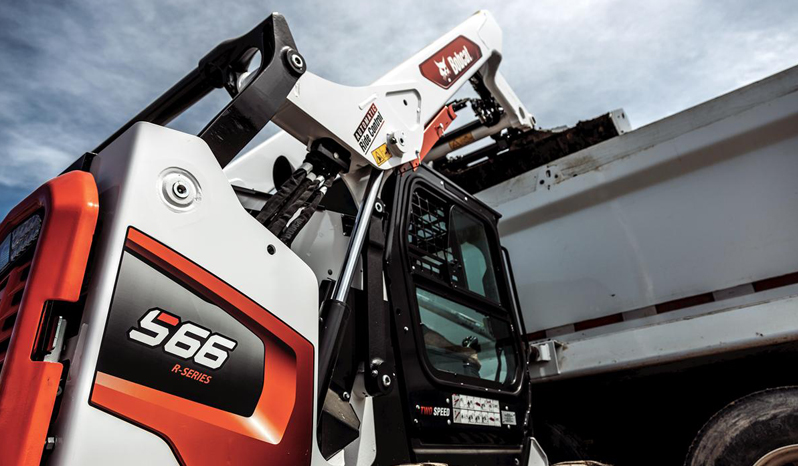

The S66 R-Series skid-steer loader is engineered to take on your toughest jobs, even when working in tight areas. This 74-hp, vertical-lift-path machine comes standard with Two-Speed travel and Bobcat® Super Float tires for precision turning, skidding and maneuverability with minimal soil disturbance. The S66’s powerful lifting capabilities, fast cycle times, ergonomic controls and in-cab display featuring machine information and corresponding performance data help to maximize your productivity. Plus, an inline engine and durable direct-drive system, lift arms with cast-steel construction and an improved cooling system make even your most challenging work days easier. Add versatile loader attachments to take on tough jobs and get more done.

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Operating Lights
  • Wedge Brake Parking Brake System
  • Rear Window
  • Top Window
  • Lift-Arm Support
  • 3-Point Shoulder Seat Belt
  • Suspension Seat
  • Two Speed Travel
  • Auxiliary Hydraulics
  • Spark Arrestor Muffler
  • Bob-Tach Attachment System
  • Horn

Options

  • Joystick Control
  • Air Conditioning
  • Cab Enclosure
  • Sound Option
  • Turbocharged Engine
  • Cab Heater
  • Radio
  • Deluxe Instrumentation
  • Hydraulic Bucket Positioning
  • High Flow Option
  • Power Bob-Tach

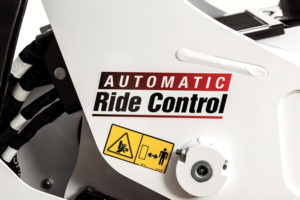

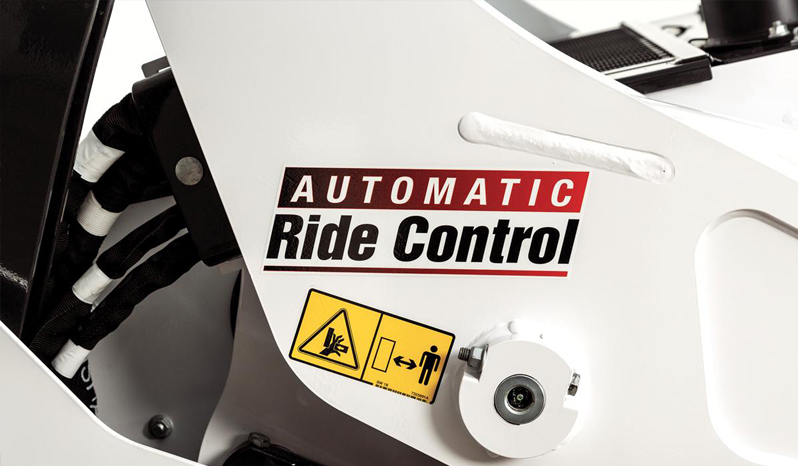

  • Ride Control
  • Rear Hydraulics

Popular Attachments

  • Breaker
  • Auger
  • Sweeper

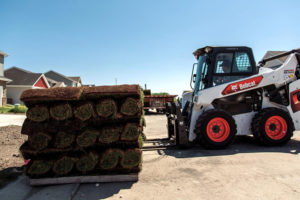

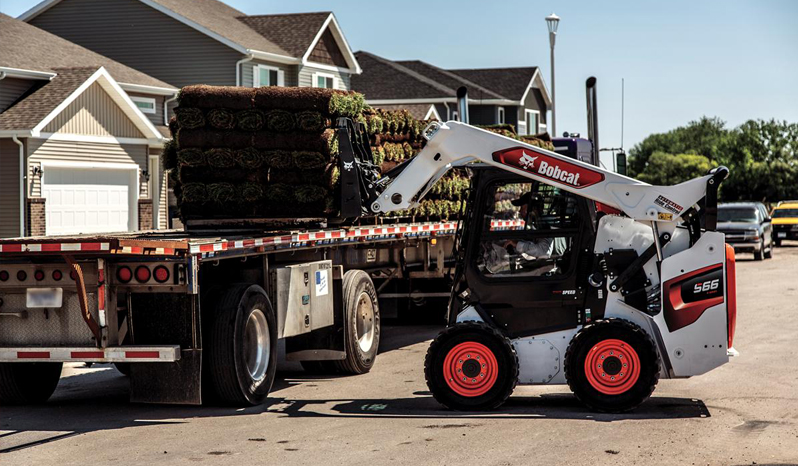

  • Pallet Forks
  • Combination Bucket
  • Industrial Grapple

S66

Dimensions

  • LENGTH
    107 in
  • LENGTH WITH BUCKET
    134.9 in
  • HEIGHT
    81.3 in
  • WIDTH
    67 in
  • WIDTH WITH BUCKET
    68 in
  • WEIGHT
    7,154 lb
  • HEIGHT TO BUCKET PIN
    120 in
  • WHEELBASE
    44.6 in
  • TURNING RADIUS
    80.1 in
  • REACH AT MAX HEIGHT
    34.2 in

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    74 hp
  • FUEL TYPE
    Diesel
  • FUEL TANK CAPACITY
    28.3 gal
  • COOLING
    Liquid
  • TURBOCHARGED ENGINE
    Optional

Hydraulics

  • AUXILIARY STD FLOW
    23.3 gal/min
  • AUXILIARY HIGH FLOW
    30.3 gal/min
  • SYSTEM RELIEF AT QUICK COUPLERS
    3,500 psi

Operational

  • RATED OPERATING CAPACITY
    2,400 lb
  • TIPPING LOAD
    4,800 lb
  • TRAVEL SPEED
    11.9 km/h
  • TRAVEL SPEED - 2-SPEED OPTION
    17.7 km/h
