Bobcat S510
- Make
- Bobcat
- Category
- Bobcat Skid Steer Loaders
- ROC
- 1,876 lb
- Width
- 68 in
- Horsepower
- 55 hp
- Engine
- Tier 4
- Fuel Type
- Diesel
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo
S510 M-3 Series

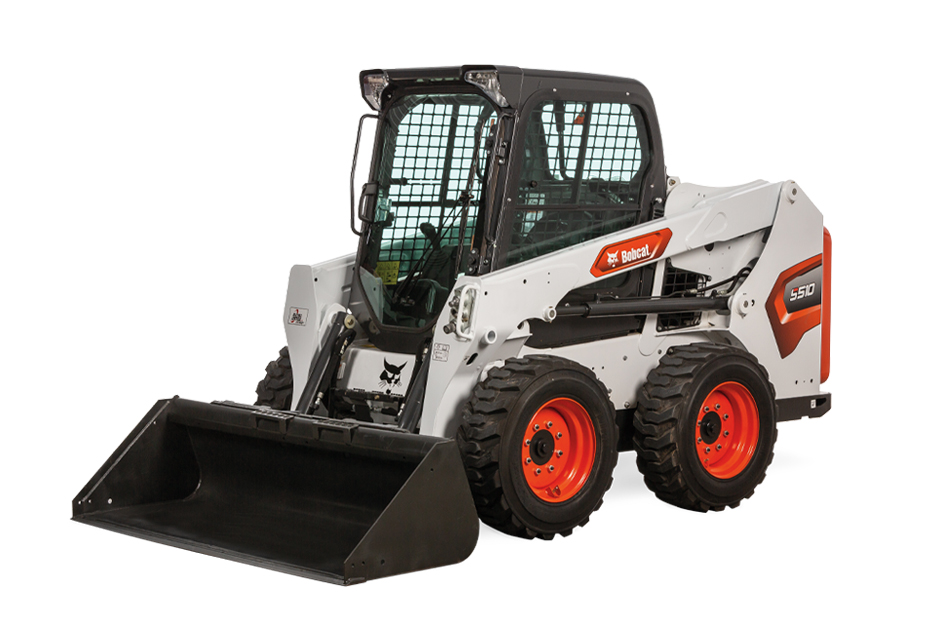

The Bobcat M3-Series S510 skid-steer loader is a powerful machine that’s ideal for operators who are seeking maximum reach when the lift arms are raised at mid-height. Radius lift arms allow for the greatest reach when dumping over walls, backfilling and unloading flatbed trucks. This skid-steer model delivers powerful hydraulics for unmatched efficiency on the job.
M3-Series Compact Loader Brochures:
Features
- Adjustable Seat
- Backup Alarm
- BICS System (Interlock)
- Operating Lights
- Parking Brake
- Rear Window
- Top Window
- Lift-Arm Support
- Seat Belt
- Suspension Seat
- Engine Shutdown
- Spark Arrestor Muffler
- Bob-Tach™ Attachment System
- Horn
Options
- Joystick Control
- Air Conditioning
- Cab Enclosure
- Sound Option
- Cab Heater
- Radio
- Deluxe Instrumentation
- Hydraulic Bucket Positioning
- Auxiliary Hydraulics
- Power Bob-Tach™
- Ride Control
- Rear Hydraulics
Popular Attachments
- Breaker
- Auger
- Sweeper
- Pallet Forks
- Combination Bucket
- Industrial Grapple
S510 M-3 Series
Dimensions
- LENGTH
- 104.6
- LENGTH WITH BUCKET
- 133 in
- HEIGHT
- 77.8 in
- WIDTH
- 64.7 in
- WIDTH WITH BUCKET
- 68 in
- WEIGHT
- 6,208 lb
- WHEELBASE
- 42.6 in
- TURNING RADIUS
- 80 in
- HEIGHT TO BUCKET PIN
- 114.5 in
- REACH AT MAX HEIGHT
- 17 in
Engine
- ENGINE
- Tier 4
- HORSEPOWER
- 55 hp
- FUEL TYPE
- Diesel
- FUEL TANK CAPACITY
- 24.8 gal
- COOLING
- Liquid
- TURBOCHARGED ENGINE
- Optional
Hydraulics
- AUXILIARY STD FLOW
- 17.1 gal/min
- AUXILIARY HIGH FLOW
- N/A
- SYSTEM RELIEF AT QUICK COUPLERS
- 3,550 psi
Operational
- RATED OPERATING CAPACITY
- 1,876 lb
- TIPPING LOAD
- 3,560 lb
- TRAVEL SPEED
- 12.2 km/h
