Bobcat CT5558

CT5558

The Bobcat® 58-hp CT5558 is our largest fully equipped compact tractor, offering the horsepower, easy operation and unmatched cab comfort so you can work long hours and still be ready for more. It’s built for work around your property, including finish mowing large properties, brush clearing overgrown pastures and land, moving deep snow, hauling materials, and completing a variety of projects using attachments and implements that are easy to hook up, adjust, operate and change. The deluxe heated and air-conditioned tractor cab keeps you comfortable in frigid winter weather and on hot, humid summer days. This compact tractor uses an electronic hydrostatic transmission for simplicity, ease of direction changes and near-effortless input on the travel pedal. When you need it all, this compact tractor delivers.

Features

• Electronic Hydrostatic Transmission
• Independent PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• 3-Point Hitch
• Roll-Over Protective Structure (ROPS)
• Deluxe Suspension Seat
• Work Lights

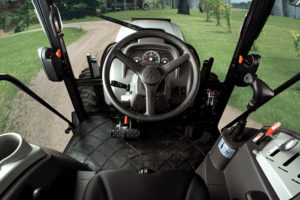

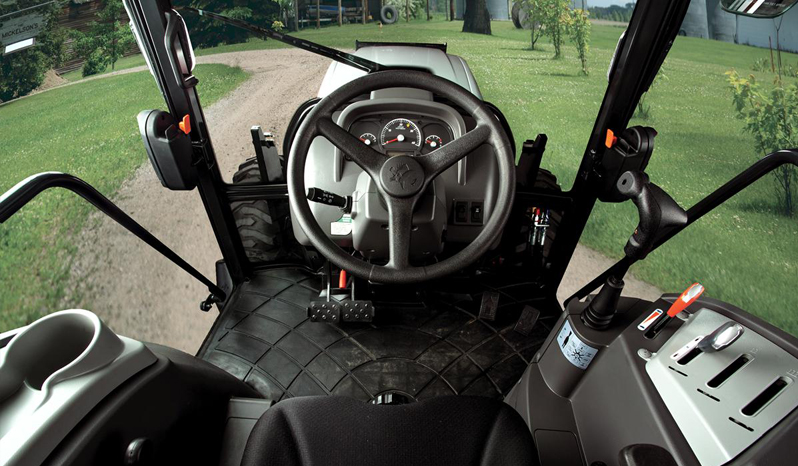

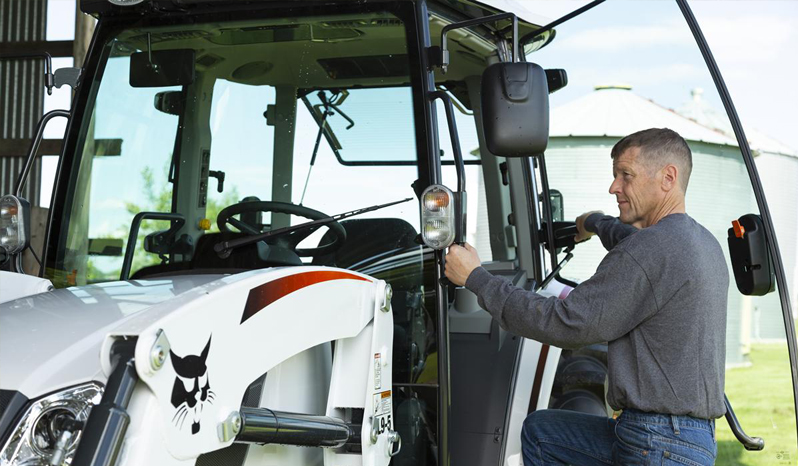

• Deluxe Enclosed Cab
• True Cruise Control
• One-Side Maintenance
• One-Piece Engine Hood
• All-In-One Fuse And Relay Box

Options

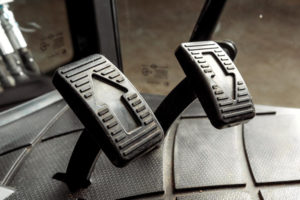

• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower
• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT5558

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  57.7 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3FT-TH4-U

• FUEL TANK

  14.8 gal

Dimensions

• LENGTH

  139.6 in

• WIDTH

  75 in

• HEIGHT

  94.2 in

• WEIGHT

  4,685 lb

• GROUND CLEARANCE

  13 in

• TURNING RADIUS

  9' 9"

• WHEELBASE

  6' 3"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  17.8 gal/min

• IMPLEMENT HYDRAULIC FLOW

  9.6 gal/min

• STEERING HYDRAULIC FLOW

  8.2 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  Infinite, 3 Range Hydrostatic (Servo Control Valve With Electric Sol.)

Operational

• TRAVEL SPEED

  28.2 km/h

• TRAVEL SPEED - REVERSE

  28.2 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Position With Draft Control

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  3,177 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  48.3 hp

• MID PTO - RPM

  2,103

Loader Attachment

• LOADER LIFT HEIGHT

  9' 1"

• BUCKET WIDTH

  6' 0"
