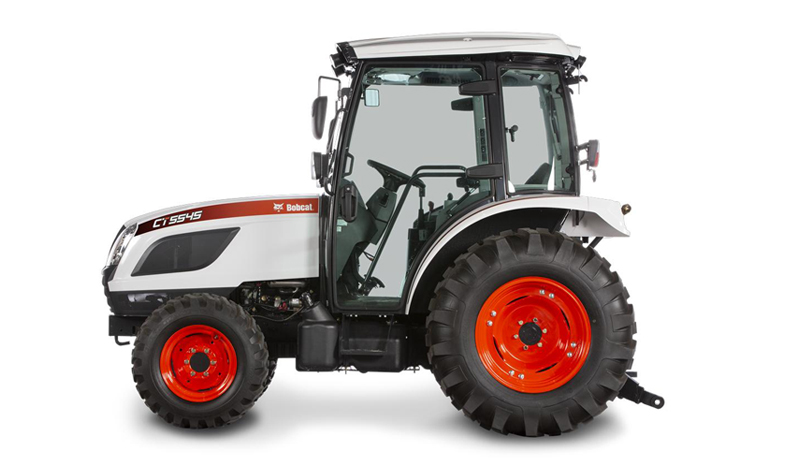

Bobcat CT5545

CT5545

The Bobcat® CT5545 compact tractor offers everything you need: horsepower, easy operation, premium factory-installed cab, plus Category 1 3-point hitch and rear PTO to power attachments and implements. This turbo-charged, 45-hp compact tractor features electronic hydrostatic transmission for the ultimate in simplicity and ease of direction change. Plus it offers near-effortless input on the travel pedal. Take on finish mowing, brush clearing and all the groundskeeping chores around your farm and property. The premium cab ensures you’ll stay comfortable all year long so you can do more through every season.

Compact Tractor Brochures:

Download CT5000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Electronic Hydrostatic Transmission
• Independent PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• 3-Point Hitch
• Roll-Over Protective Structure
• Deluxe Suspension Seat
• Work Lights
• Deluxe Enclosed Cab
• True Cruise Control
• One-Side Maintenance
• One-Piece Engine Hood
• All-In-One Fuse And Relay Box

Options

• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower
• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT5545

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  45 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3FT-TH4-U

• FUEL TANK

  14.8 gal

Dimensions

• LENGTH

  139.6 in

• WIDTH

  75 in

• HEIGHT

  94.2 in

• WEIGHT

  4,685 lb

• GROUND CLEARANCE

  13 in

• TURNING RADIUS

  9' 9"

• WHEELBASE

  6' 3"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  17.8 gal/min

• IMPLEMENT HYDRAULIC FLOW

  9.6 gal/min

• STEERING HYDRAULIC FLOW

  8.2 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  Infinite, 3 Range Hydrostatic (Servo Control Valve With Electric Sol.)

Operational

• TRAVEL SPEED

  28.2 km/h

• TRAVEL SPEED - REVERSE

  28.2 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Position With Draft Control

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  3,177 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  33.9 hp

• MID PTO - RPM

  2,119

Loader Attachment

• LOADER LIFT HEIGHT

  9' 1"

• BUCKET WIDTH

  6' 0"
