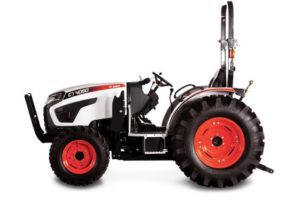

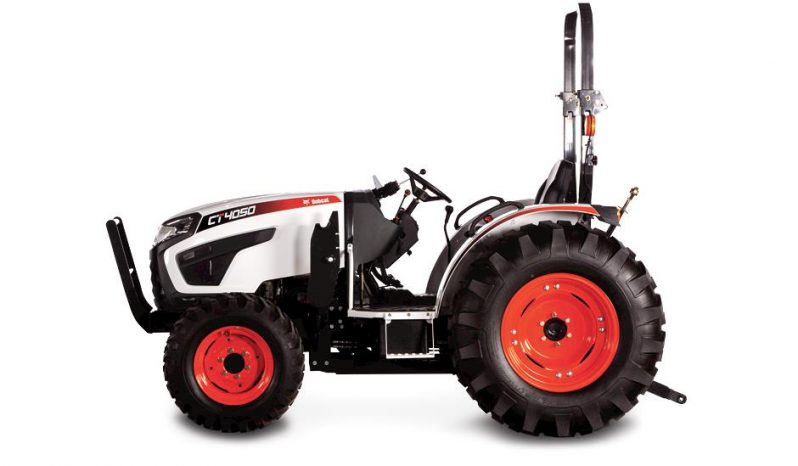

Bobcat CT4050

CT4050

The 50-hp, turbo-charged Bobcat® CT4050 compact tractor offers the horsepower and versatility you need to complete all the chores around your small farm, from mowing property and clearing fields to grading back lanes or moving heavy snow. Choose from manual synchro shuttle transmission for shift-on-the-fly functionality or hydrostatic transmission, a good choice for novice compact tractor operators. It includes a Category 1 3-point hitch, independent rear PTO, four-wheel drive and more features that make this compact tractor your ultimate heavy-duty companion.

Compact Tractor Literature:

Download CT4000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Independent Rear PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• Category 1, 3-Point Hitch
• Front And Rear Work Lights
• One-Side Maintenance
• One-Piece Engine Hood
• Deluxe Suspension Seat
• Four-Wheel Drive
• Roll Over Protective Structure (ROPS)

Options

• Hydrostatic Transmission
• Manual Synchro Shuttle Transmission
• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

• Tiller

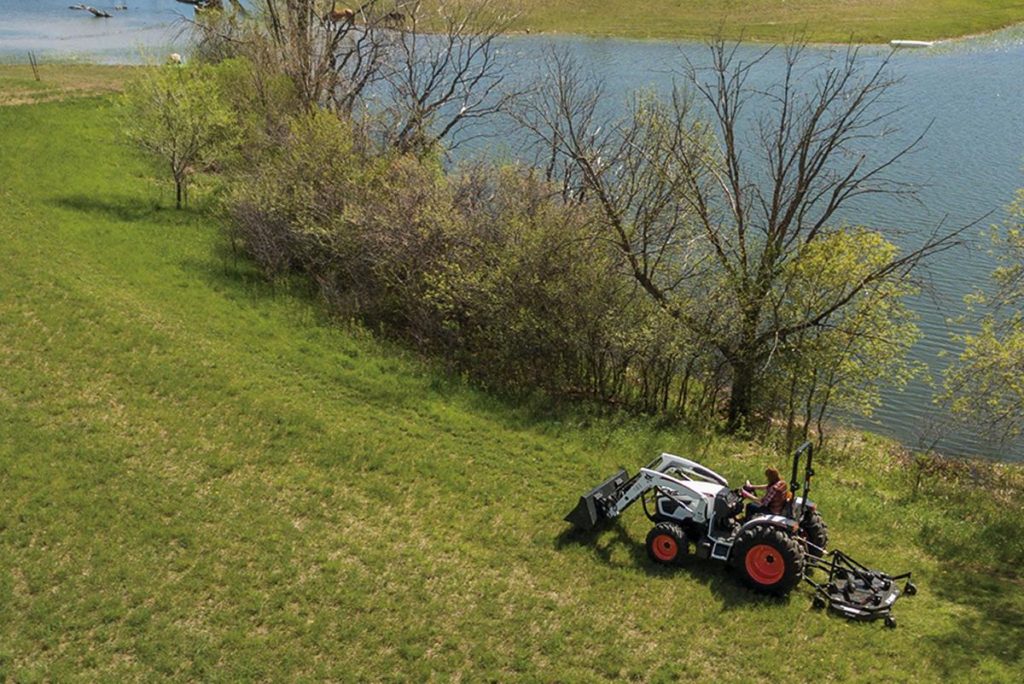

• Finish Mower

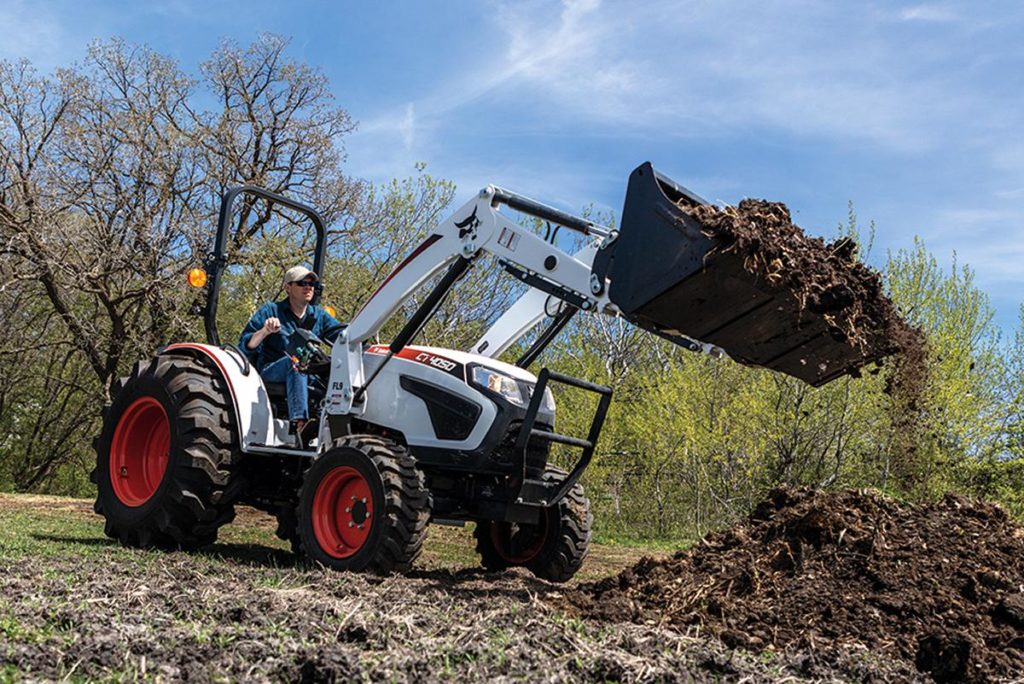

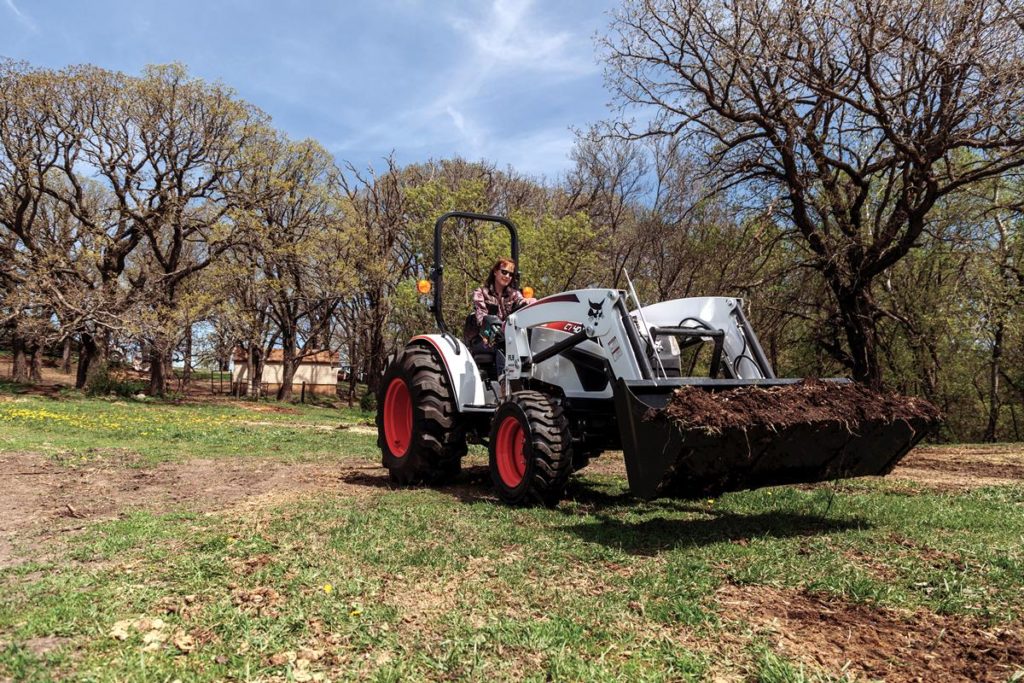

• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT4050

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  50.3 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3FT-THL4-U

• FUEL TANK

  12.7 gal

Dimensions

• LENGTH

  125.5 in

• WIDTH

  70 in

• HEIGHT

  97.4 in

• WEIGHT

  3,745 lb

• GROUND CLEARANCE

  15.3 in

• TURNING RADIUS

  8' 7"

• WHEELBASE

  5' 11"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  16.5 gal/min

• IMPLEMENT HYDRAULIC FLOW

  9.6 gal/min

• STEERING HYDRAULIC FLOW

  6.9 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  3-Range HST

Operational

• TRAVEL SPEED

  30 km/h

• TRAVEL SPEED - REVERSE

  20 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  2,716 lb

• REAR PTO SYSTEM

  Independant

• REAR PTO - RPM

  540

• PTO HP

  39.3 hp

• MID PTO - RPM

  2,119

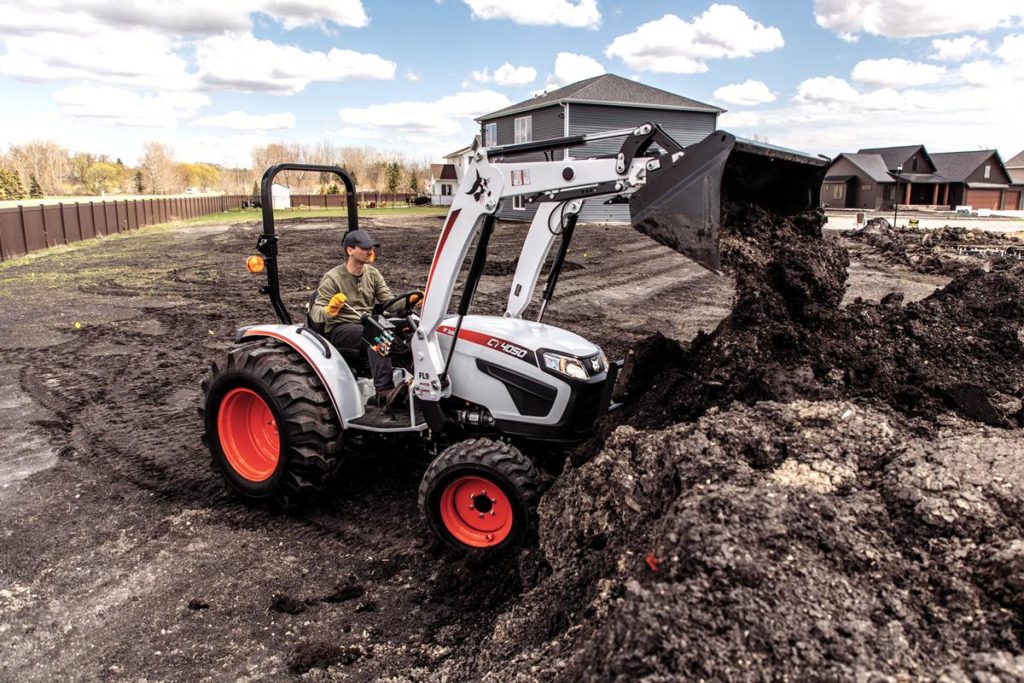

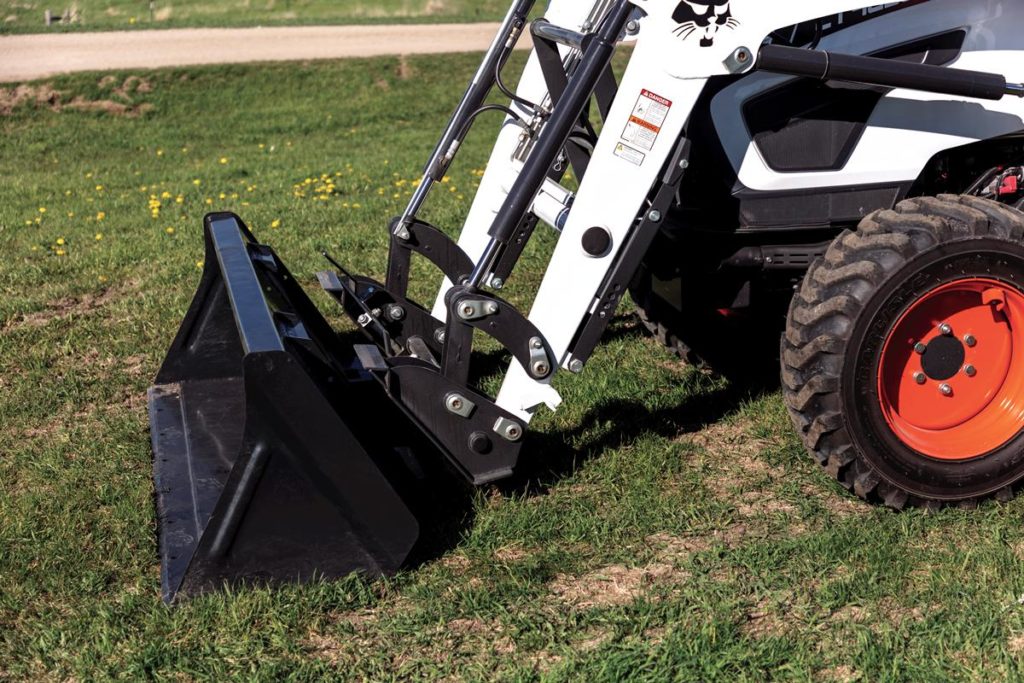

Loader Attachment

• LOADER LIFT HEIGHT

  8' 8"

• BUCKET WIDTH

  5' 6"
