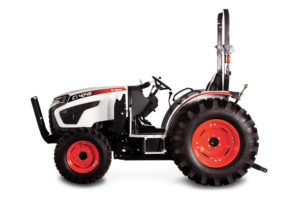

Bobcat CT4045

CT4045

One of four models in the 4000 Platform, this 45-hp, turbo-charged compact tractor is an affordable option that delivers heavy-duty power and work efficiency. Ideal for mowing, clearing overgrown fields, and grading driveways or private roads. This compact tractor features an open cab, four-wheel drive, Category 1 3-point hitch, power and tilt steering, and your choice of a manual synchro shuttle transmission for shift-on-the-fly functionality or hydrostatic transmission.

Compact Tractor Brochures:

Download CT4000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Independent Rear PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• Category 1, 3-Point Hitch
• Front And Rear Work Lights
• One-Side Maintenance
• One-Piece Engine Hood
• All-In-One Fuse And Relay Box
• Deluxe Suspension Seat
• Four-Wheel Drive
• Roll Over Protective Structure (ROPS)

Options

• Hydrostatic Transmission
• Manual Synchro Shuttle Transmission
• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower

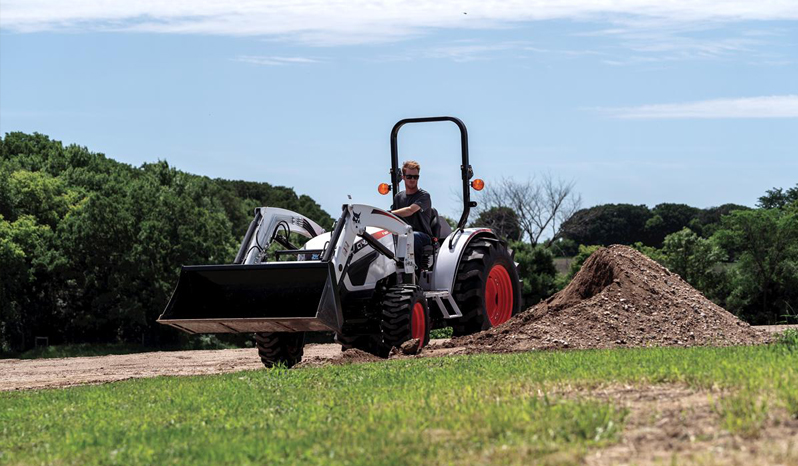

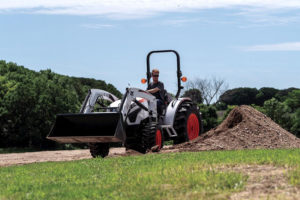

• Front End Loader Arms
• Mid-Mount Mower

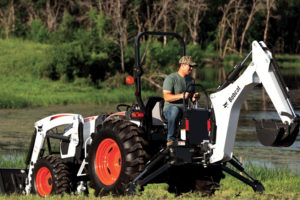

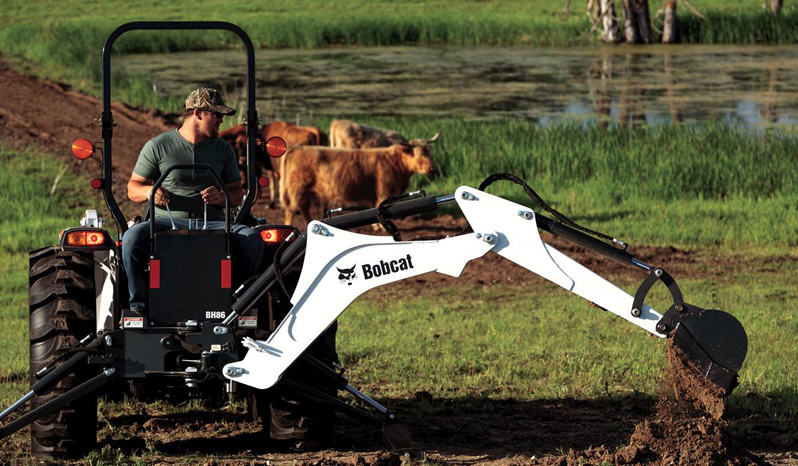

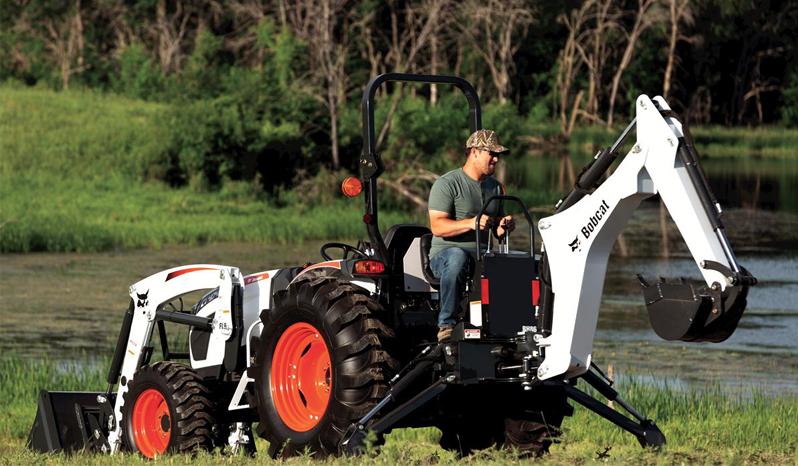

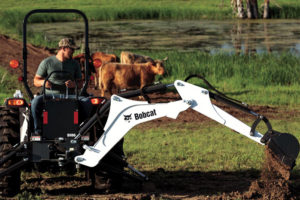

• Backhoe
• Angle Blade

CT4045

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  44.9 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3FT-TL4

• FUEL TANK

  12.7 gal

Dimensions

• LENGTH

  125.5 in

• WIDTH

  70 in

• HEIGHT

  97.4 in

• WEIGHT

  3,745 lb

• GROUND CLEARANCE

  15.3 in

• TURNING RADIUS

  8' 7"

• WHEELBASE

  5' 11"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  16.5 gal/min

• IMPLEMENT HYDRAULIC FLOW

  9.6 gal/min

• STEERING HYDRAULIC FLOW

  6.9 gal/min

• TRANSMISSION TYPE

  3-Range HST

• BRAKE TYPE

  Wet Multi Disc

Operational

• TRAVEL SPEED

  30 km/h

• TRAVEL SPEED - REVERSE

  21 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  2,716 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  32.8 hp

• MID PTO - RPM

  2,119

Loader Attachment

• LOADER LIFT HEIGHT

  8' 8"

• BUCKET WIDTH

  5' 6"
