< Bobcat Compact Tractors

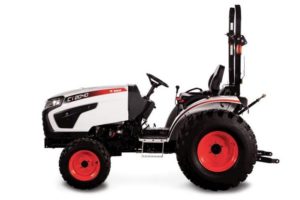

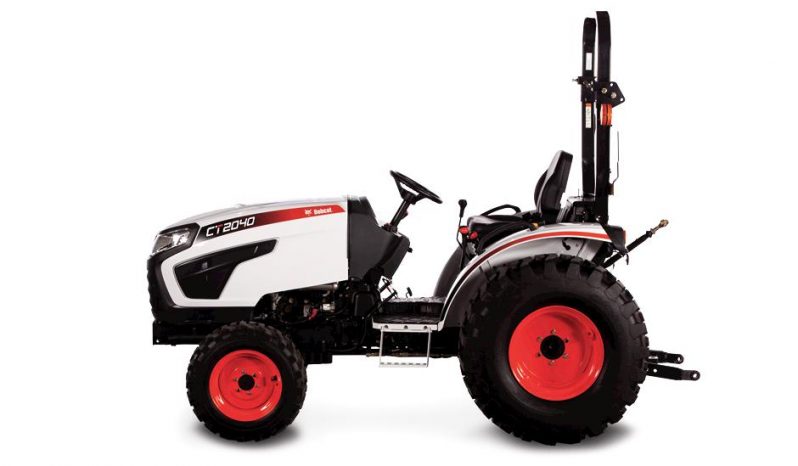

Bobcat CT2040

  • Make
    Bobcat
  • Category
    Bobcat Compact Tractors
  • Horsepower
    39.6 hp
  • Width
    64 in
  • PTO
    31.9 hp
  • Weight
    3,005 lb
  • Fuel Type
    Diesel
  • Condition
    New

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

CT2040

The economical Bobcat® CT2040 compact tractor doesn’t skimp when it comes to horsepower. This 40-hp small farm tractor provides rugged performance and outstanding comfort so you can take on attachment and implement work around your ranch or acreage. It delivers big performance and still fits in tight areas on your property. Four-wheel drive, a Category 1 3-point hitch and power steering are standard. And you get to choose from two transmission types to get the one that’s best for your work.

Features

  • Category 1, 3-Point Hitch With Control Lever
  • Integrated Joystick Lever
  • Four-Wheel Drive
  • Power Steering
  • Deluxe Suspension Seat
  • High Ground Clearance

Options

  • Manual-Shift Transmission With Live Rear PTO
  • Hydrostatic Transmission With Independent Rear PTO
  • Three Tire Options

Popular Attachments

  • Tiller
  • Finish Mower
  • Front End Loader Arms
  • Mid-Mount Mower
  • Backhoe
  • Angle Blade

CT2040

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    39.6 hp
  • DISPLACEMENT
    111 in³
  • NUMBER OF CYLINDERS
    3
  • ENGINE MODEL
    3F-TM(H)4
  • RPM
    2,750
  • FUEL TANK
    8 gal

Dimensions

  • LENGTH
    120.9 in
  • WIDTH
    64 in
  • HEIGHT
    91.5 in
  • WEIGHT
    3,005 lb
  • GROUND CLEARANCE
    11.5 in
  • TURNING RADIUS
    8' 0"
  • WHEELBASE
    5' 5"
  • FRONT TIRE SIZE
    Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15)
  • REAR TIRE SIZE
    Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)

Hydraulic & Drive System

  • TOTAL HYDRAULIC FLOW
    11.7 gal/min
  • BRAKE TYPE
    West Multi Disc
  • TRANSMISSION TYPE
    Infinite, 3 Range Hydrostatic

Operational

  • TRAVEL SPEED
    23.1 km/h
  • TRAVEL SPEED - REVERSE
    20.8 km/h
  • 3-POINT HITCH
    Category 1
  • 3-PT LIFT CONTROL TYPE
    Hydraulic Position Control System
  • LIFT CAPACITY AT 24" BEHIND LIFT POINT
    1,631 lb
  • REAR PTO SYSTEM
    Live
  • REAR PTO - RPM
    540
  • PTO HP
    31.9 hp
  • MID PTO - RPM
    1,988

Loader Attachment

  • LOADER LIFT HEIGHT
    8' 4"
  • LIFT CAPACITY AT 500MM AHEAD OF BKT PIVOT
    1,389 lb
  • BUCKET WIDTH
    5' 0"
