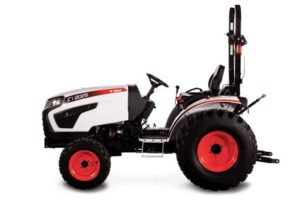

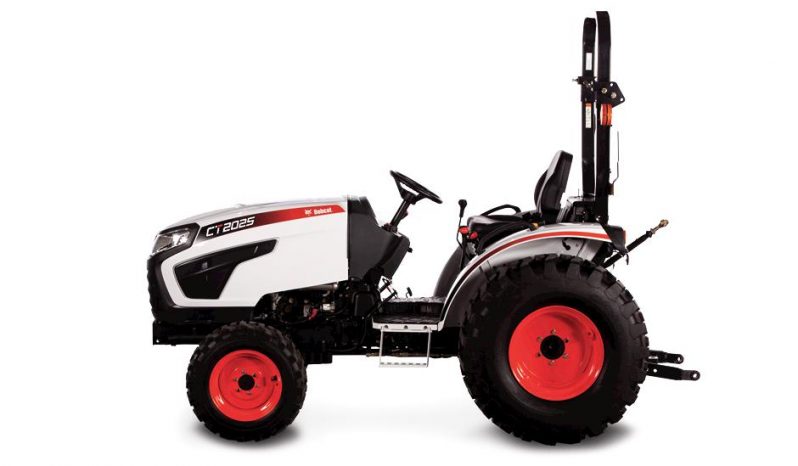

Bobcat CT2025

CT2025

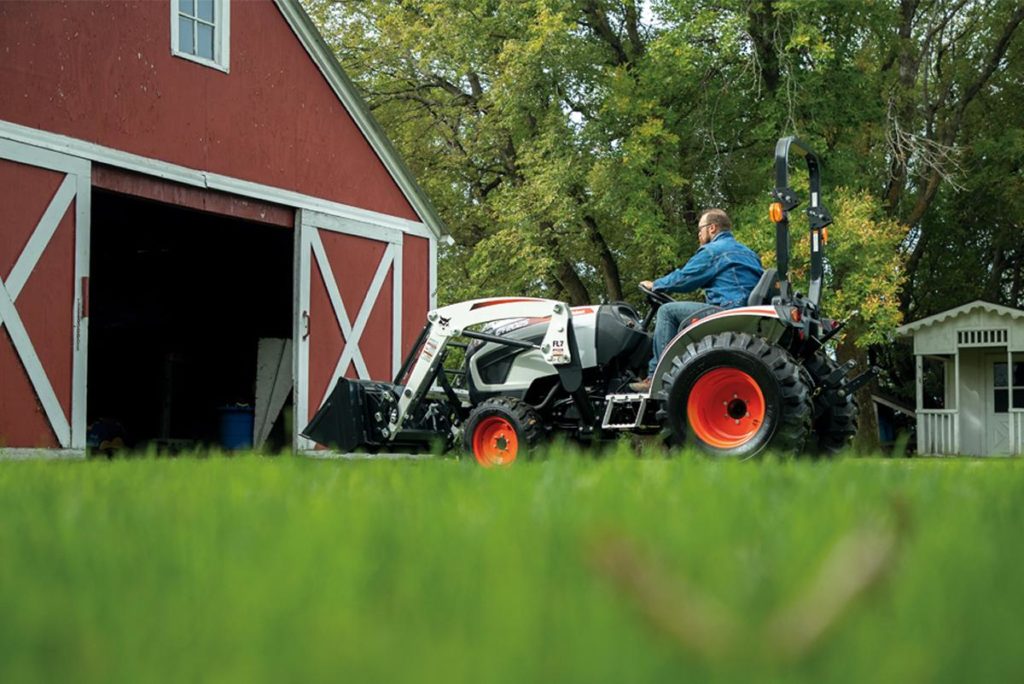

Get rugged performance, power and comfort with the 25-hp Bobcat® CT2025, a popular size class of compact tractor. It’s strong enough for heavy-duty jobs but small enough to work in tight areas. It delivers the features you need to take on loader or implement work. Choose from manual-shift transmission or hydrostatic transmission. Four-wheel drive, a Category 1 3-point hitch and rear PTO come standard. This economical model offers all-around versatility that’s a great fit for small farms, ranches and acreages.

Features

• Open-Cab
• Four-Wheel Drive
• Power Steering
• High Ground Clearance
• Category 1, 3-Point Hitch
• Single Lever Joystick
• Roll Over Protective Structure (ROPS)

Options

• Manual-Shift Transmission
• Hydrostatic Transmission
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower
• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT2025

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  24.5 hp

• DISPLACEMENT

  100 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3A165LWM(H)

• RPM

  2,600

• FUEL TANK

  9 gal

Dimensions

• LENGTH

  120.9 in

• WIDTH

  64 in

• HEIGHT

  91.5 in

• WEIGHT

  2,634 lb

• GROUND CLEARANCE

  11.5 in

• TURNING RADIUS

  8' 0"

• WHEELBASE

  5' 5"

• FRONT TIRE SIZE

  Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15)

• REAR TIRE SIZE

  Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  11.4 gal/min

• BRAKE TYPE

  West Multi Disc

• TRANSMISSION TYPE

  Manual (9x3)

Operational

• TRAVEL SPEED

  15.6 km/h

• TRAVEL SPEED - REVERSE

  10 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  1,631 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  22.2 hp

• MID PTO - RPM

  1,976

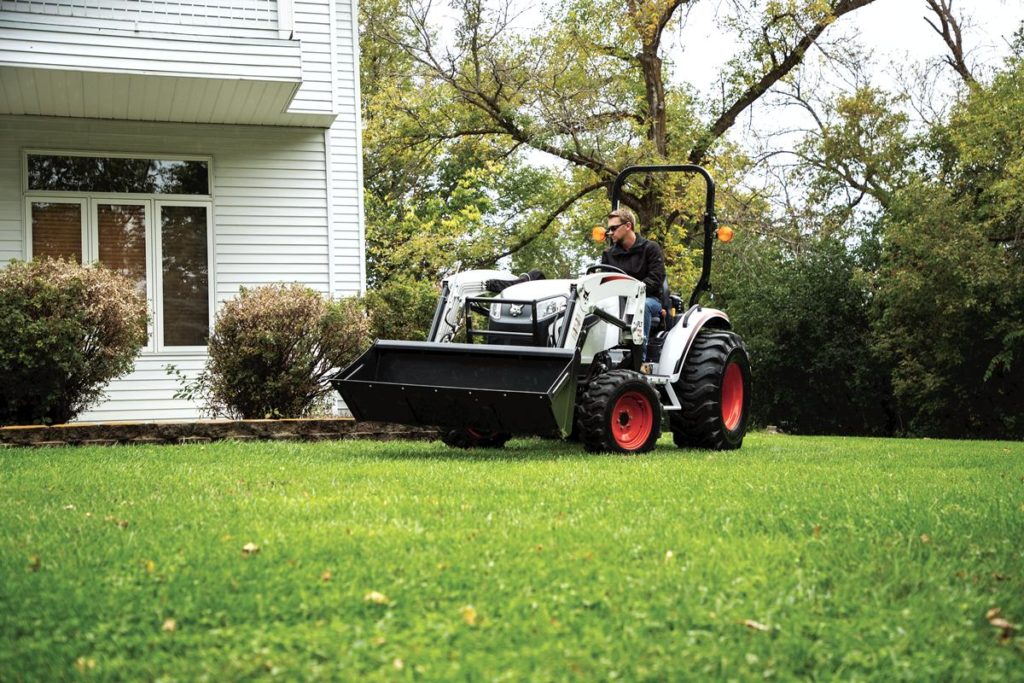

Loader Attachment

• LOADER LIFT HEIGHT

  7' 10"

• LIFT CAPACITY AT 500MM AHEAD OF BKT PIVOT

  1,369 lb

• BUCKET WIDTH

  5' 0"
