Backhoe

Backhoe

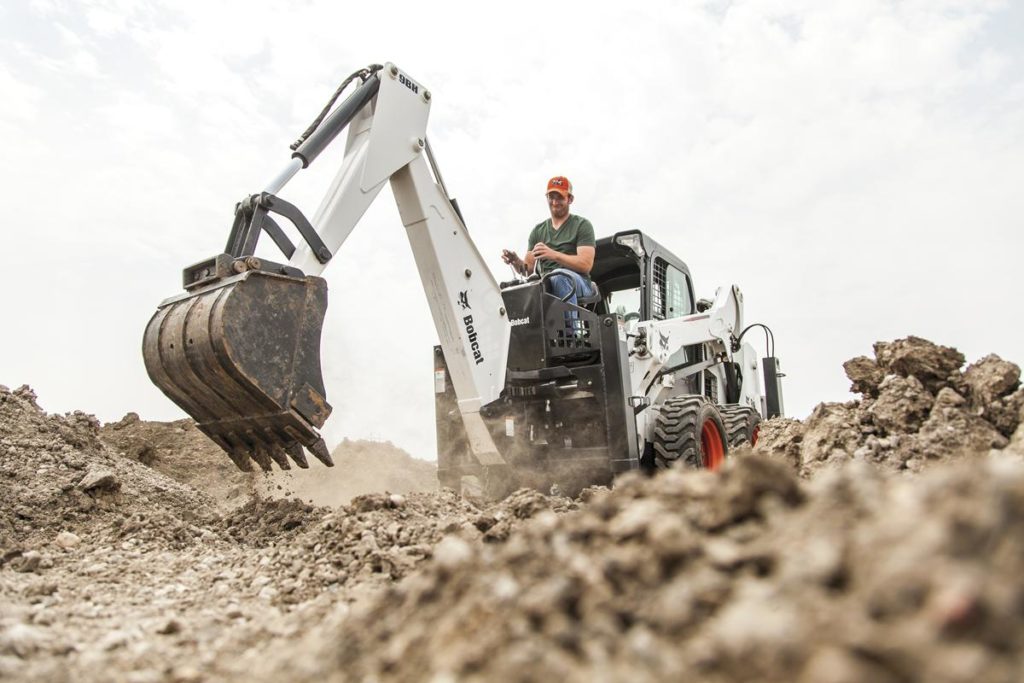

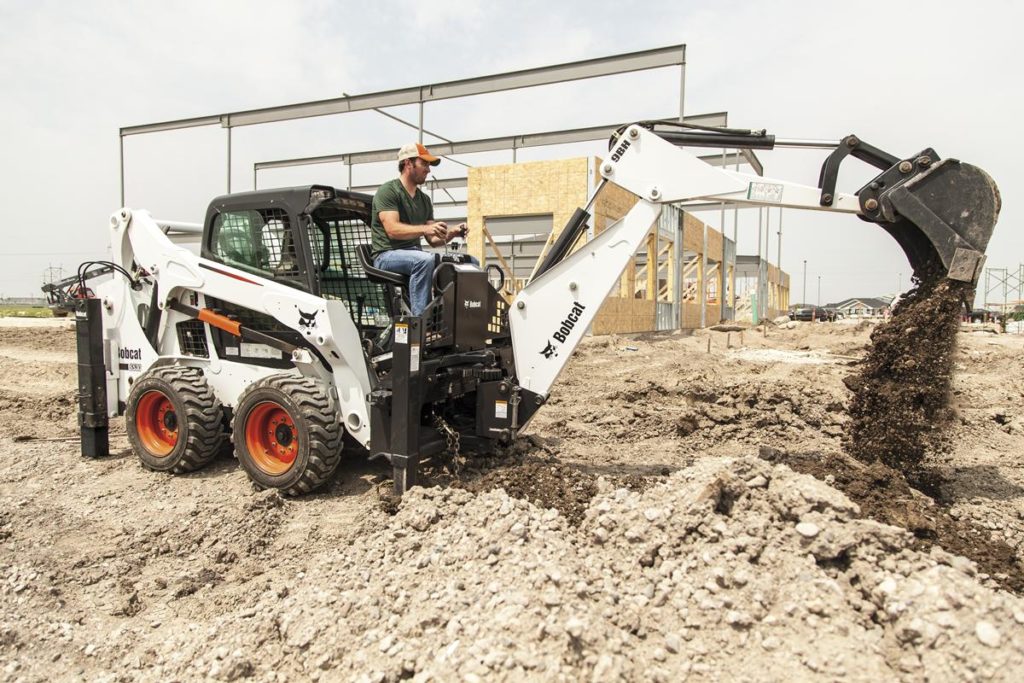

Turn your Bobcat® loader into a powerful excavator with the huge digging force of the backhoe attachment. It operates with minimal ground disturbance, which is ideal for working in sensitive areas and you can use the same buckets that are available for excavators. From the operator’s seat, you’ll have a clear line of sight into the hole, making it easy to dig accurately. With the tight-fit attachment hook-up of the Bob-Tach mounting system, the backhoe mounts directly to the loader – no mounting kit or stabilizers are required. The backhoe is a part-time attachment that can handle full-time excavating jobs.

Used For

• Completing excavation jobs at landscaping & nursery sites
• Digging sewage systems & septic tanks
• Completing water & power line maintenance

Features

• Digging Depth: Digging depths from 6 - 11 ft.
• Easy to Transport: Moves from one job to the next with ease.
• Excellent Down-Hole Visibility: Allowing for more efficient and accurate operation.
• X-Change Mounting Attachment System: Multiple excavator bucket widths offer the best fit for any excavating job size.

Options

• Buckets: Three buckets sizes are available for the backhoe (13 in, 16 in, 20 in)

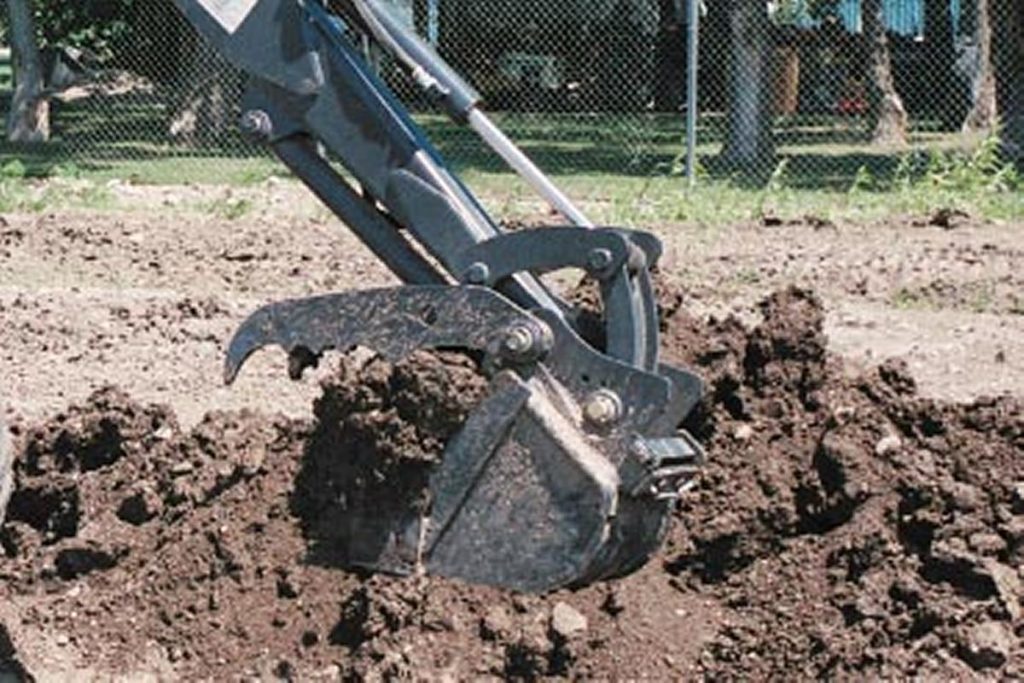

• Clamp: Optional clamp provides added versatility by allowing picking up and placement of materials.

Backhoe

Backhoe - M06

• WEIGHT

  685 lb

• MAX REACH

  88 in

• DIG FORCE-BUCKET

  2,200 lbf

• BOLT-ON X-CHANGE

  Pin-on

• SWING ANGLE

  180°

• MAXIMUM DIG DEPTH

  76.2 in

• DIG FORCE-DIPPER

  968 lbf

• STABILIZER TYPE

  Hydraulic Fold Down

Backhoe - 9BH

• WEIGHT

  1,986 lb

• MAX REACH

  145.3 in

• DIG FORCE-BUCKET

  5,042 lbf

• BOLT-ON X-CHANGE

  Standard

• SWING ANGLE

  180°

• MAXIMUM DIG DEPTH

  116.6 in

• DIG FORCE-DIPPER

  3,241 lbf

• STABILIZER TYPE

  Hydraulic Vertical

Backhoe - 7BH

• WEIGHT

  1,298 lb

• MAX REACH

  145.3 in

• DIG FORCE-BUCKET

  5,000 lbf

• BOLT-ON X-CHANGE

  Standard

• SWING ANGLE

  180°

• STABILIZER TYPE

  Vertical

• MAXIMUM DIG DEPTH

  95.1 in

• DIG FORCE-DIPPER

  2,700 lbf

Backhoe - 8811

• WEIGHT

  1,986 lb

• MAX REACH

  166 in

• DIG FORCE-BUCKET

  6,000 lbf

• BOLT-ON X-CHANGE

  Standard

• SWING ANGLE

  180°

• MAXIMUM DIG DEPTH

  135.7 in

• DIG FORCE-DIPPER

  4,069 lbf

• STABILIZER TYPE

  Hydraulic Fold Down
