Bobcat L28

Small Articulated Loaders
Small Articulated Loaders

L28

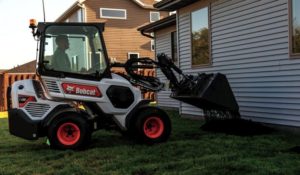

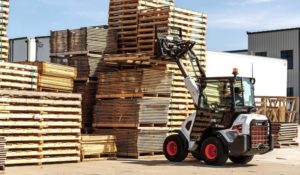

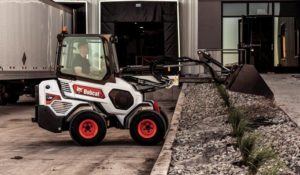

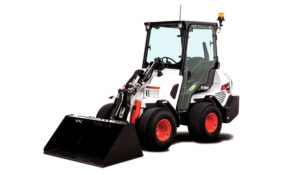

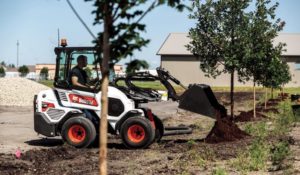

The 25-hp L28 small articulated loader is a powerful and nimble machine designed to do your heavy lifting. An articulation joint enables the rear tires to match the path of the front tires as they turn to easily move around your most confined work areas. A turf-safe mode helps minimize the chance of cutting into the turf as it turns or hauls a load. The telescoping lift arm extends your reach up to 24 inches for a total lift height of 104 inches when lifting heavy loads, and you can add optional rear counterweights to increase lift capacity. The low-rpm, high-torque engine provides performance that is more forgiving when pushing the machine to its limit under load. Easy-to-use controls and added comfort features, including an optional enclosed, heated cab, maximize productivity on every job.

Small Articulated Loader Brochures:

Download Small Articulated Loader Brochure

Download Bobcat Attachments Catalog

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Lift-Arm Support
  • Hydraulic Bucket Positioning
  • Auxiliary Hydraulics
  • Spark Arrestor Muffler
  • Bob-Tach Attachment System
  • Horn
  • Front and Rear Work Lights
  • Cup Holder

Options

  • Cab Enclosure
  • Cab Heater
  • Operating Lights
  • Rear Window
  • Rotating Flashing Beacon
  • Turn Signals
  • Heavy-Duty Float Tires

L28

    Main

    • ROC
      1,534 lb
    • Width
      46.5 in
    • Horsepower
      24.8 hp
    • Engine
      Tier 4
    • Fuel Type
      Diesel

    Dimensions

    • LENGTH
      93.2 in
    • LENGTH WITH BUCKET
      122.4 in
    • HEIGHT
      104.3 in
    • WIDTH
      50 in
    • WEIGHT
      4,195 lb
    • ARTICULATION ANGLE
      43°
    • TURNING RADIUS INSIDE
      78.2 in
    • TURNING RADIUS OUTSIDE
      100.9 in
    • WHEELBASE
      47.2 in
    • MAX REACH
      30.9 in
    • TIRE SIZE
      23X10.5-12, 8 PLY
    • GROUND CLEARANCE
      5.5 in
    • ROLLBACK ANGLE
      32°
    • DUMP ANGLE AT MAXIMUM HEIGHT
      40°

    Engine

    • ENGINE
      Tier 4
    • COOLING
      Liquid
    • ENGINE FUEL
      Diesel
    • HORSEPOWER
      24.8 hp

    Hydraulics

    • SYSTEM RELIEF AT QUICK COUPLERS
      2,900 psi
    • AUXILIARY STD FLOW
      12.1 gal/min

    Operational

    • RATED OPERATING CAPACITY STRAIGHT
      1,534 lb
    • TIPPING LOAD STRAIGHT
      3,068 lb
    • ROC WITH COUNTERWEIGHT OPTION STRAIGHT
      1,952 lb
    • RATED OPERATING CAPACITY ART.
      1,222 lb
    • TIPPING LOAD ART.
      2,444 lb
    • ROC WITH COUNTERWEIGHT OPTION ART.
      1,475 lb
    • TRAVEL SPEED
      13.5 km/h
