Bobcat S770

Bobcat S770

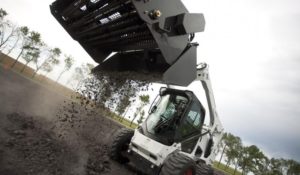

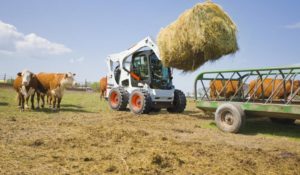

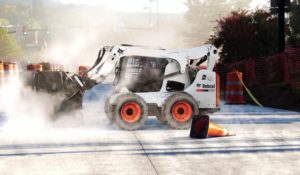

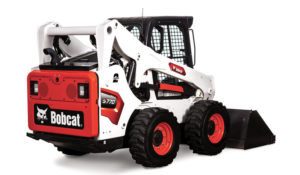

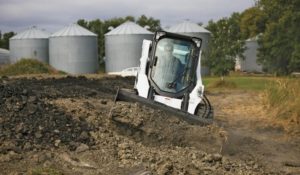

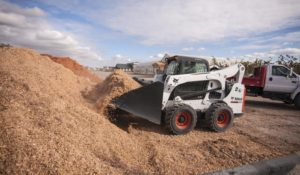

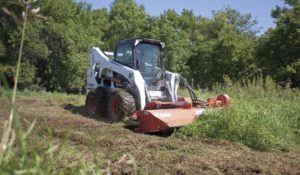

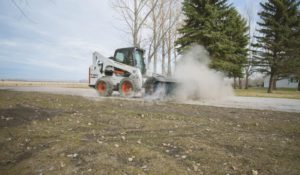

The Bobcat® S770 delivers big productivity and performance for tough digging, loading, pushing, grading and other tough assignments. With a 92 horsepower engine, 3,350 pound Rated Operating Capacity (ROC), stronger lifting power (up to 11 feet of vertical lift) and added reach, you can easily place cargo and tackle your most demanding tasks. The S770 also has improved hydraulic flow, providing you with the versatility to operate the most powerful Bobcat® attachments. Like all M-series models, the S770 has an industry-leading cab design that offers improved comfort, visibility and operator-friendly features. The optional pressurized cab provides a cleaner and 60 percent quieter work environment.

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Operating Lights
  • Parking Brake
  • Rear Window
  • Top Window
  • Lift-Arm Support
  • Seat Belt
  • Engine Shutdown
  • Auxiliary Hydraulics
  • Spark Arrestor Muffler
  • Bob-Tach Attachment System
  • Horn

Options

  • Advance Control System (ACS)
  • Selectable Joystick Control (SJC)
  • Radio Remote Control (SJC Required)
  • Air Ride Seat
  • Cab with Heat
  • Cab with Heat and Air Conditioning
  • Deluxe Instrumentation (Includes Keyless Start)
  • Hydraulic Bucket Positioning
  • Mechanical Suspension Seat
  • Radio
  • Ride Control
  • 2-speed
  • Attachment Control Kit
  • Power Bob-Tach™
  • High Flow Hydraulics
  • Engine Block Heater

Bobcat S770

Main

  • ROC
    3,350 lb
  • Width
    74 in
  • Horsepower
    92 hp
  • Engine
    Tier 4
  • Fuel Type
    Diesel

Dimensions

  • LENGTH
    114.3 in
  • LENGTH WITH BUCKET
    141.6 in
  • HEIGHT
    81.3 in
  • WIDTH
    72.1 in
  • WIDTH WITH BUCKET
    74 in
  • WEIGHT
    9,175 lb
  • HEIGHT TO BUCKET PIN
    132 in
  • WHEELBASE
    48.3 in
  • TURNING RADIUS
    85.8 in
  • REACH AT MAX HEIGHT
    31.5 in

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    92 hp
  • FUEL TYPE
    Diesel
  • FUEL TANK CAPACITY
    27.2 gal
  • COOLING
    Liquid

Hydraulics

  • AUXILIARY STD FLOW
    23 gal/min
  • AUXILIARY HIGH FLOW
    36.6 gal/min
  • SYSTEM RELIEF AT QUICK COUPLERS
    3,500 psi

Operational

  • RATED OPERATING CAPACITY
    3,350 lb
  • TIPPING LOAD
    6,700 lb
  • TRAVEL SPEED
    11.4 km/h
  • TRAVEL SPEED - 2-SPEED OPTION
    19.8 km/h
